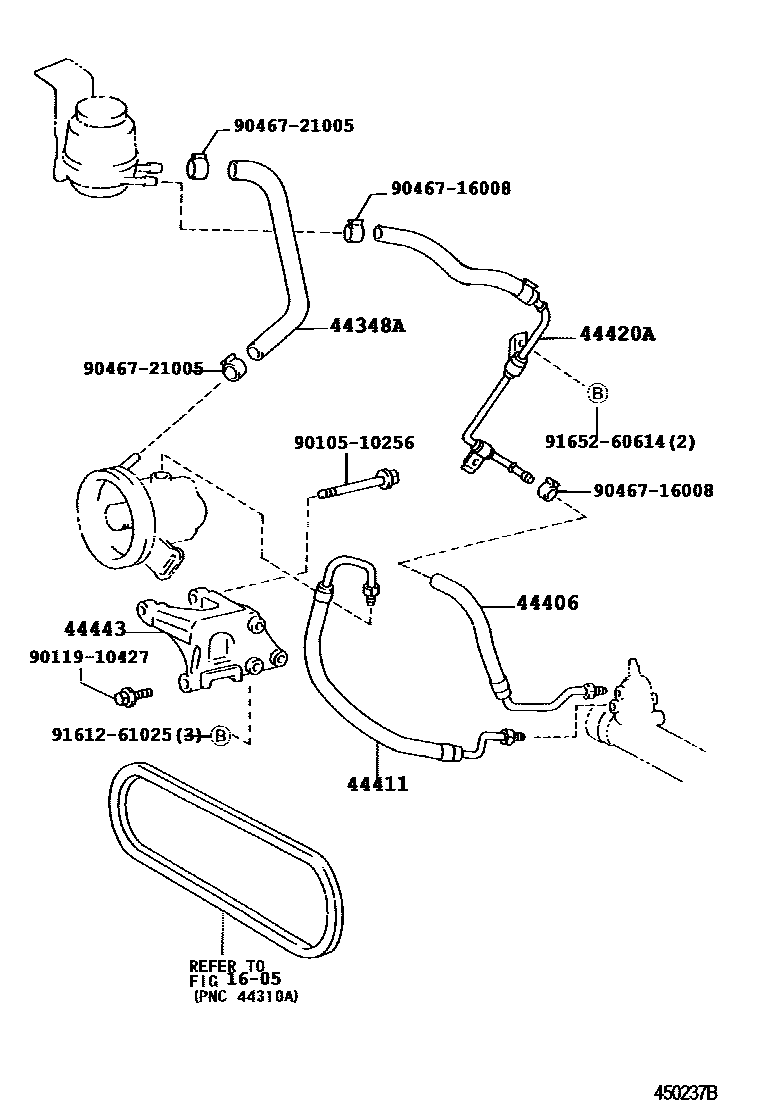

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28200iSR40199611-200111

main44348-28210iCR42199611-200412

main44348-28220iKR42199611-200310

44406TUBE SUB-ASSY, RETURN

main44406-28240iCR41,KR4#,SR40199611-200310

main44406-28281iCR42200008-200412

44411HOSE, PRESSURE FEED

main44411-28180iSR40199611-199812

main44411-28190iCR41199611-200112

main44411-28200iKR4#199611-200310

main44411-28210iSR40199812-200111

main44411-28231iCR42200008-200412

44420ATUBE ASSY, RETURN

main44420-28050iSR40199611-200111

main44420-28060iCR41199611-200112

main44420-28080iKR4#199611-200208

main44420-28090iCR42200008-200412

main44420-28130iKR42200208-200310

44443BRACKET, PUMP

main44443-28030iCR41199611-200412

main44443-28040iKR4#199611-200310

9010510256

main90105-10256

9011910427

main90119-10427

9046716008

main90467-16008

9046721005

main90467-21005

9161261025

main91612-61025

9165260614

main91652-60614

12 parts on this diagram · 4 diagrams in section
