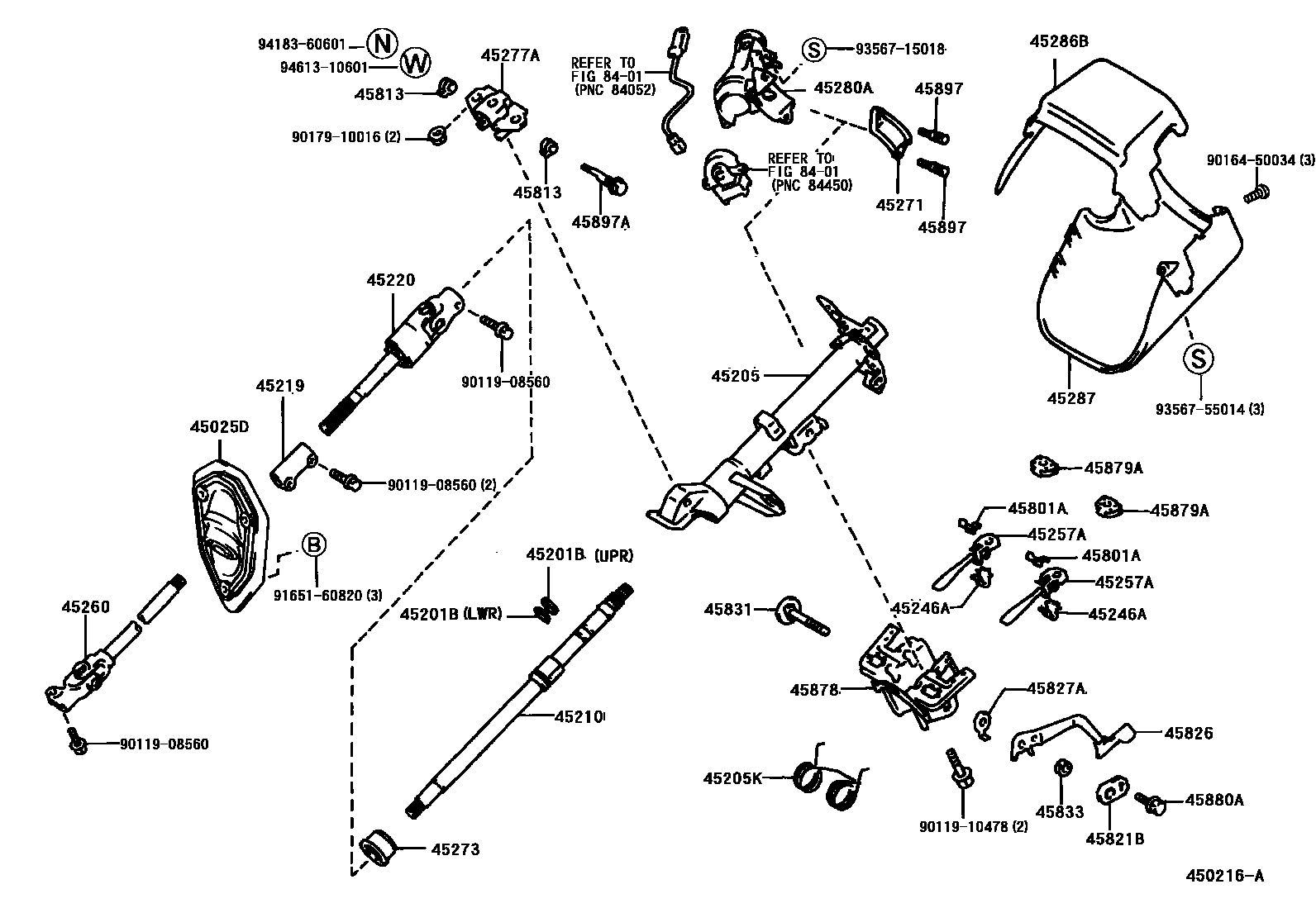

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45205TUBE SUB-ASSY, STEERING COLUMN
W(TILT STEERING)
W(TILT STEERING)
45205KSPRING(FOR STEERING COLUMN TUBE)
45210SHAFT ASSY, STEERING MAIN
45219YOKE, STEERING SLIDING
45220SHAFT ASSY, STEERING INTERMEDIATE
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
W(POWER STEERING)
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45277ASUPPORT, TILT STEERING
45280ABRACKET ASSY, STEERING COLUMN, UPPER
sub45280-12341
W(TILT STEERING)
sub45280-28250
sub45280-28240
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
MD.MOON MIST,TRIM1#
W(TILT STEERING),MD.MOON MIST,TRIM1#
sub45287-28370
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=14
OD=24
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45827ALEVER, STEERING TILT SUB
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45879ACAPSULE, BREAK AWAY
45880ABOLT(FOR STEERING TILT LEVER)
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401
9011908560
main90119-08560
9011910478
main90119-10478
9016450034
main90164-50034
9017910016
main90179-10016
9165160820
main91651-60820
9356715018
main93567-15018
9356755014
main93567-55014
9418360601
main94183-60601
9461310601
main94613-10601
38 parts on this diagram · 3 diagrams in section
