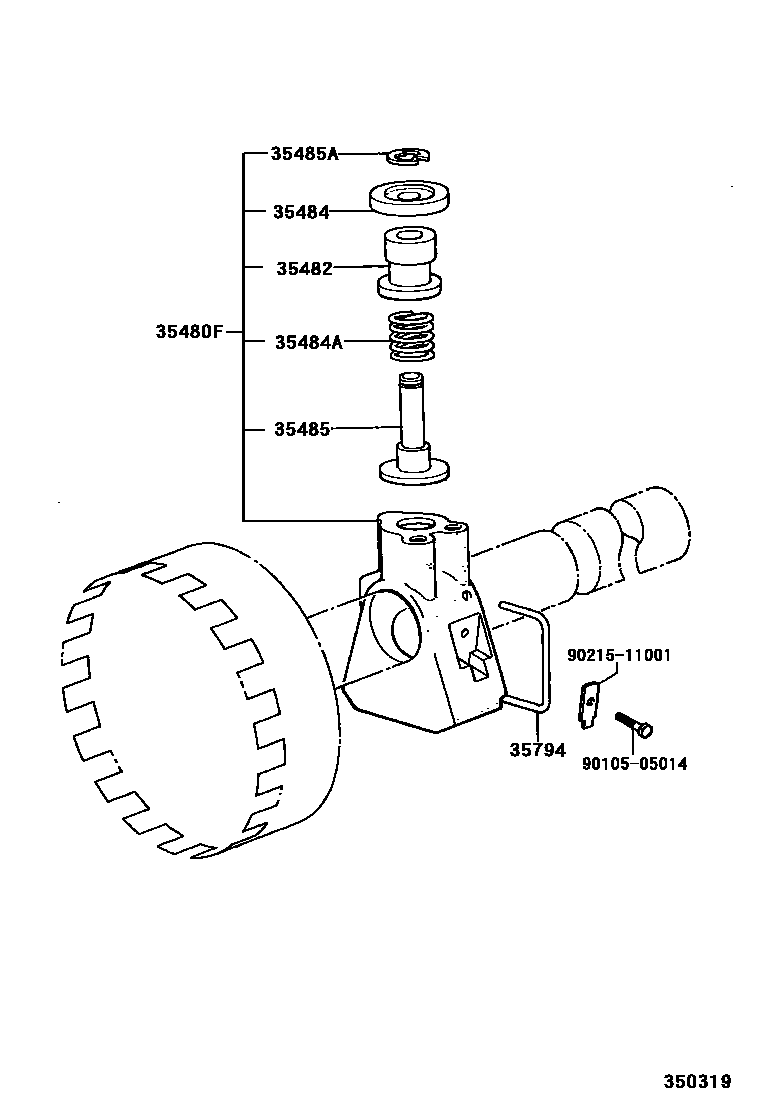

REAR OIL PUMP & GOVERNOR (ATM)

0001 1A42D 0002 1A45DL

35480FBODY ASSY, GOVERNOR

main35480-28020iSR40..ATM199611-200111

main35480-28030iKR42..ATM199611-200310

35482VALVE, GOVERNOR

main35482-28020iSR40..ATM199611-200111

main35482-30030iKR42..ATM199611-200310

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iKR42,SR40..ATM199611-200310

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09049iSR40..ATM199611-200111

OUTER

main90501-09065iSR40..ATM199611-200111

INNER

main90501-09070iKR42..ATM199611-200310

35485SHAFT, GOVERNOR VALVE

main35485-14010iSR40..ATM199611-200111

main35485-22010iKR42..ATM199611-200310

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iKR42,SR40..ATM199611-200310

35794RING, GOVERNOR RETAINING

main35794-22010iKR42,SR40..ATM199611-200310

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 2 diagrams in section
