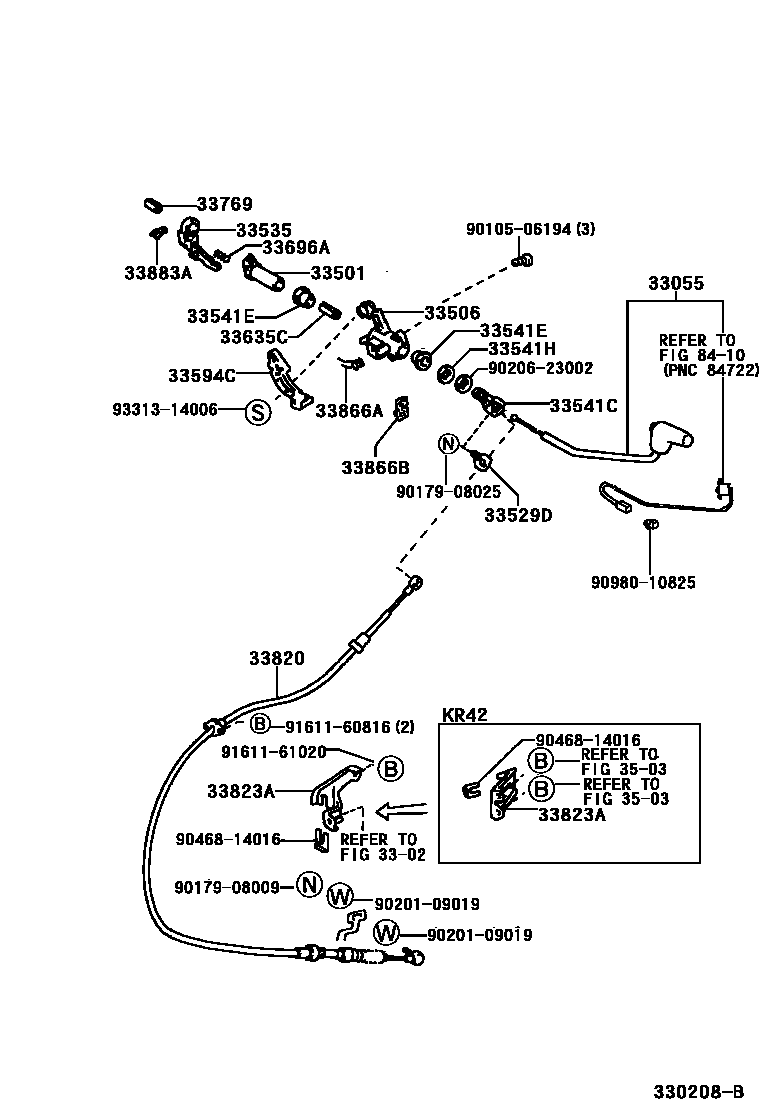

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

3302

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-28200iKR42,SR40..ATM¥5,200199611-199812

main33055-28210iKR42,SR40..ATM¥7,900199812-200310

sub33055-29025¥7,900

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33511-28130iKR42,SR40..ATM¥2,080199611-199812

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-28200iKR42,SR40..ATM¥2,650199611-199812

33529DBOLT, SHIFT LEVER

main33529-28100iKR42,SR40..ATM¥400199611-199812

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-28070iKR42,SR40..ATM¥460199611-200310

33541CLEVER, SHIFT (FOR COLUMN SHIFT)

main33543-28060iKR42,SR40..ATM¥1,600199611-199812

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90386-14014iKR42,SR40..ATM¥110199812-200310

main90386-22003iKR42,SR40..ATM¥180199611-199812

33541HSPACER (FOR COLUMN SHIFT)

main90560-22003iKR42,SR40..ATM¥120199611-199812

33594CPLATE, SHIFT LOCK

main33594-28020iKR42,SR40..ATM..ARL¥660199611-199812

33635CGUIDE, WIRE

main33635-28050iKR42,SR40..ATM¥380199611-199812

33696ASPRING, COMPRESSION

main90501-09136iKR42,SR40..ATM¥170199611-200310

33769SCREW, CONTROL ROD SET

main33769-28010iKR42,SR40..ATM¥310199611-200310

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-28280iSR40..ATM¥13,000199611-199812

main33820-28290iKR42..ATM¥13,000199611-199812

main33820-28310iSR40..ATM¥13,000199812-200111

main33820-28320iKR42..ATM¥13,200199812-200310

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-28180iSR40..ATM¥1,290199611-200111

main33823-28190iKR42..ATM¥1,240199611-200310

33866ASPRING, SHIFT LOCK RELEASE

main33866-28010iKR42,SR40..ATM..ARL¥90199611-199812

main33866-28020iKR42,SR40..ATM¥90199812-200310

33866BFIXED CLAMP

main82711-1A660iKR42,SR40..ATM¥110199611-200310

33883AHOLDER, CABLE END ROD

main33883-28020iKR42,SR40..ATM¥90199611-200310

3503

8410

9010506194

main90105-06194¥70

9017908009

main90179-08009¥220

9017908025

main90179-08025¥80

9020109019

main90201-09019¥160

9020623002

main90206-23002¥110

9046814016

main90468-14016¥160

9098010825

main90980-10825¥200

9161160816

main91611-60816¥230

9161161020

main91611-61020¥240

9331314006

main93313-14006¥110

30 parts on this diagram · 2 diagrams in section
