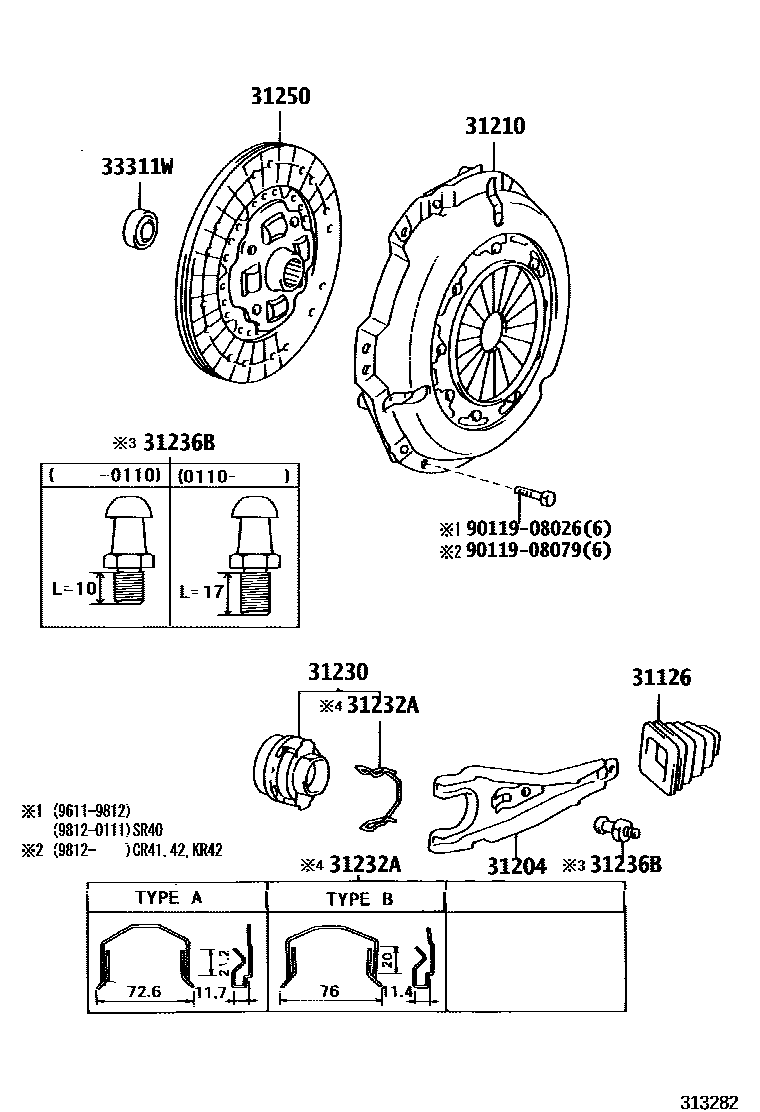

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCR41,SR40..MTM199611-200412

main31126-20070iKR4#..MTM199611-200310

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCR42199611-200412

main31204-22040iKR42..MTM199611-200310

31210COVER ASSY, CLUTCH

main31210-12180iKR41199611-199812

sub31210-12181

main31210-12191iKR42..MTM199611-200310

sub31210-12192

main31210-22100iSR40..MTM199611-200111

sub31210-22101

main31210-22120iCR41199611-199812

sub31210-22121

main31210-28050iCR4#199812-200412

sub31210-28051

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iCR41,KR4#,SR40..MTM199611-200111

sub31230-35091

main31230-35091iCR4#,KR42..MTM199812-200412

31232ACLIP, RELEASE BEARING HUB

main31232-35020iCR4#,KR42,SR40..MTM199812-200412

TYPE A:REFER ILLUST.

main31232-35020iCR41,KR4#,SR40..MTM199611-199812

TYPE A:REFER TO ILLUSTRATION

main31232-35040iCR41,KR4#,SR40..MTM199611-199812

TYPE B:REFER TO ILLUSTRATION

main31232-35040iCR4#,KR42,SR40..MTM199812-200412

TYPE B:REFER ILLUST.

31236BSUPPORT, RELEASE FORK

main31236-26010iSR40..MTM200110-200412

main31236-30060iCR4#,KR42,SR40..MTM199611-200110

31250DISC ASSY, CLUTCH

main31250-20117iCR41199611-199708

sub31250-20118

main31250-20118iCR41199708-200412

sub31250-28190

main31250-28140iKR41199611-199702

sub31250-28141

main31250-28141iKR41199702-199812

sub31250-28142

main31250-28160iSR40..MTM199611-199708

sub31250-35370

main31250-28170iKR42..MTM199611-200310

sub31250-28171

main31250-35370iSR40..MTM199708-199811

sub31250-35371

main31250-35371iSR40..MTM199811-200111

sub31250-35372

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iKR4#..MTM199611-200310

main90363-12004iCR41,SR40..MTM199611-200412

9011908026

main90119-08026

9011908079

main90119-08079

10 parts on this diagram · 1 diagram in section
