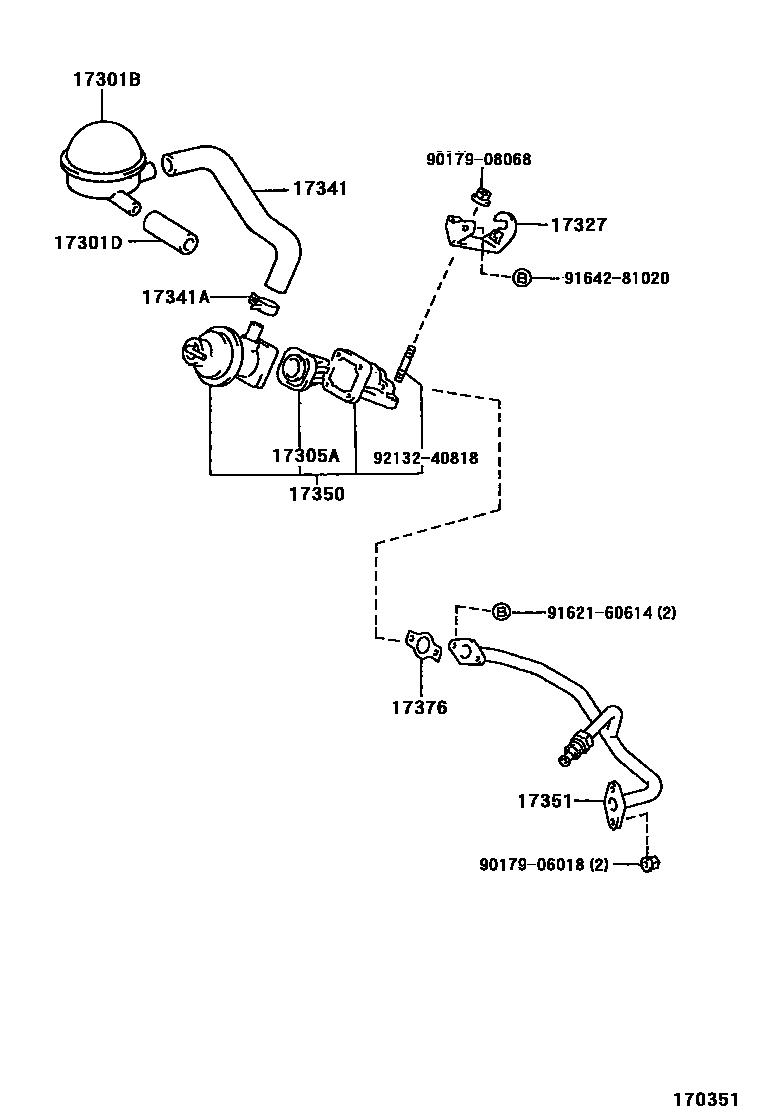

MANIFOLD AIR INJECTION SYSTEM

17301BSILENCER SUB-ASSY, AIR SUCTION

main17301-13020i7K..KR42..ARL199611-199812

17301DHOSE(FOR AIR SUCTION SILENCER)

main90445-31014i7K..KR42..ARL199611-199812

17305AVALVE SUB-ASSY, REED

main17305-13030i7K..KR42..ARL199611-199812

17327BRACKET, REED VALVE

main17327-13040i7K..KR42..ARL199611-199812

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-13150i7K..KR42..ARL199611-199812

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26001i7K..KR42..ARL199611-199701

sub96134-52600

main90467-26002i7K..KR42..ARL199701-199812

sub96134-52600

17350VALVE ASSY, REED

main17350-13070i7K..KR42..ARL199611-199812

17351MANIFOLD, AIR INJECTION

main17306-13060i7K..KR42..ARL199611-199812

17376GASKET, AIR TUBE, NO.1

main17376-13020i7K..KR42..ARL199611-199812

9017906018

main90179-06018

9017908068

main90179-08068

9162160614

main91621-60614

9164281020

main91642-81020

9213240818

main92132-40818

14 parts on this diagram · 1 diagram in section
