EXHAUST PIPE

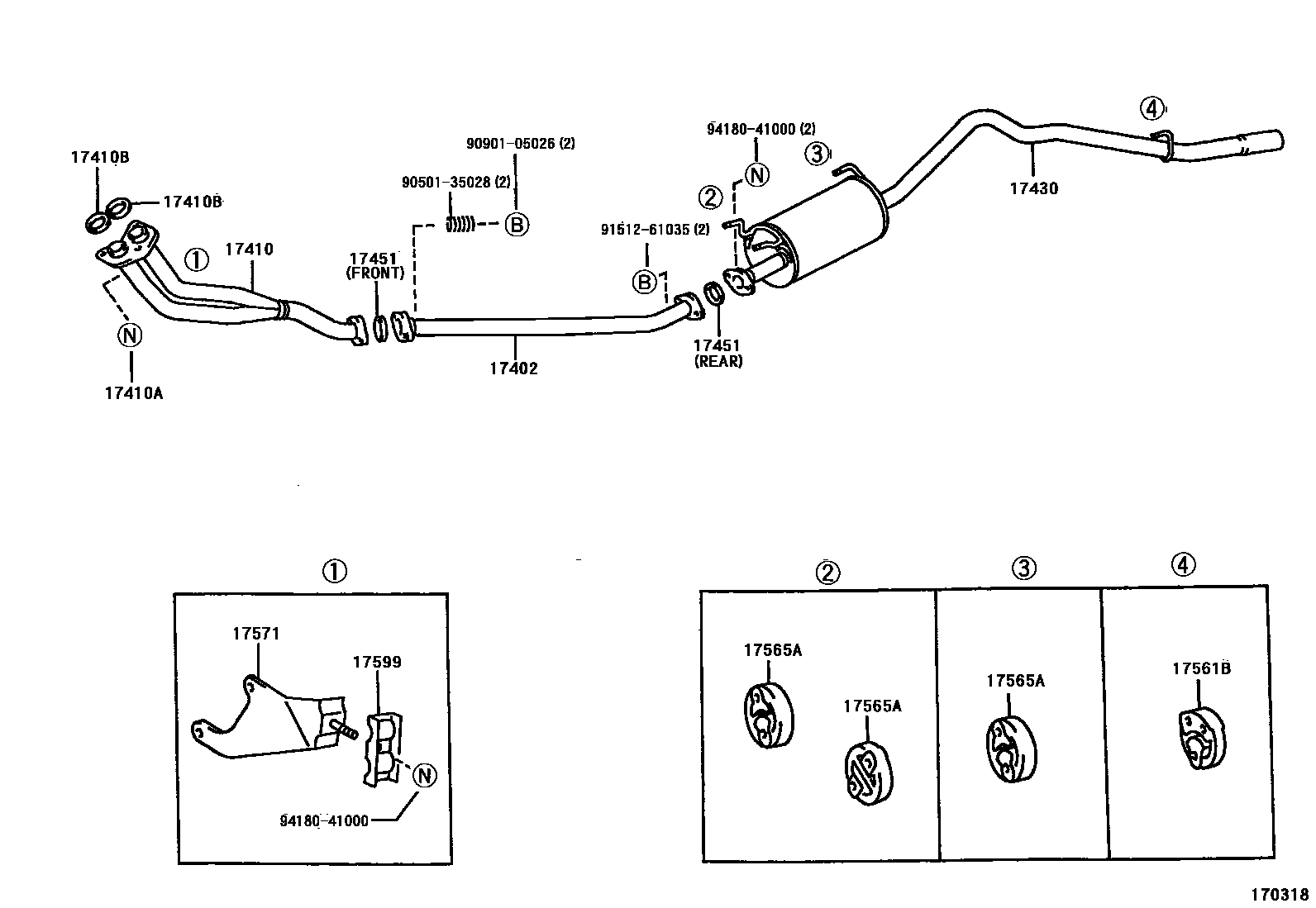

Parts diagram

17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2

main17402-13020i199611-200310

main17402-13030i199611-200310

main17402-64110i199611-200112

main17402-74040i199611-200111

main17402-74060i199710-199906

main17402-74061i199906-200111

17410PIPE ASSY, EXHAUST, FRONT

main17401-13230i199611-199812

main17401-13240i199611-199812

main17401-13250i199812-200310

main17401-13260i199812-200310

main17401-64270i199611-200112

main17401-74520i199611-200111

main17410-64890i200008-200412

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i199611-200310

17410BGASKET, EXHAUST PIPE

main90917-06061i199611-200112

main90917-06065i199611-200111

main90917-06069i199611-200310

main90917-06080i200008-200412

17430PIPE ASSY, EXHAUST, TAIL

main17430-13480i199611-200310

main17430-13490i199611-199812

main17430-13560i199812-200310

main17430-6A150i199611-199812

main17430-6A410i200008-200412

main17430-6A430i199812-200112

main17430-7A800i199611-199812

main17430-7B200i199812-200111

17451GASKET, EXHAUST PIPE

main17451-16030i199611-199805

FRONT

main17451-21010i199805-200111

FRONT

main17451-64030i199611-200310

FRONT

main90917-06039i200208-200412

main90917-06044i199611-200310

REAR

main90917-06045i199701-200111

REAR

main90917-06046i199611-199701

REAR

main90917-06074i199611-200208

REAR

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-73020i199611-200412

main17561-74110i199805-200111

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-15140i199611-200412

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-13280i199611-199812

main17571-13300i199812-200310

main17571-74470i199611-200111

17599HOLDER, EXHAUST PIPE SUPPORT STOPPER

main17599-13010i199611-199812

9050135028

main90501-35028

9090105026

main90901-05026

9151261035

main91512-61035

9418041000

main94180-41000

14 parts on this diagram · 7 diagrams in section
