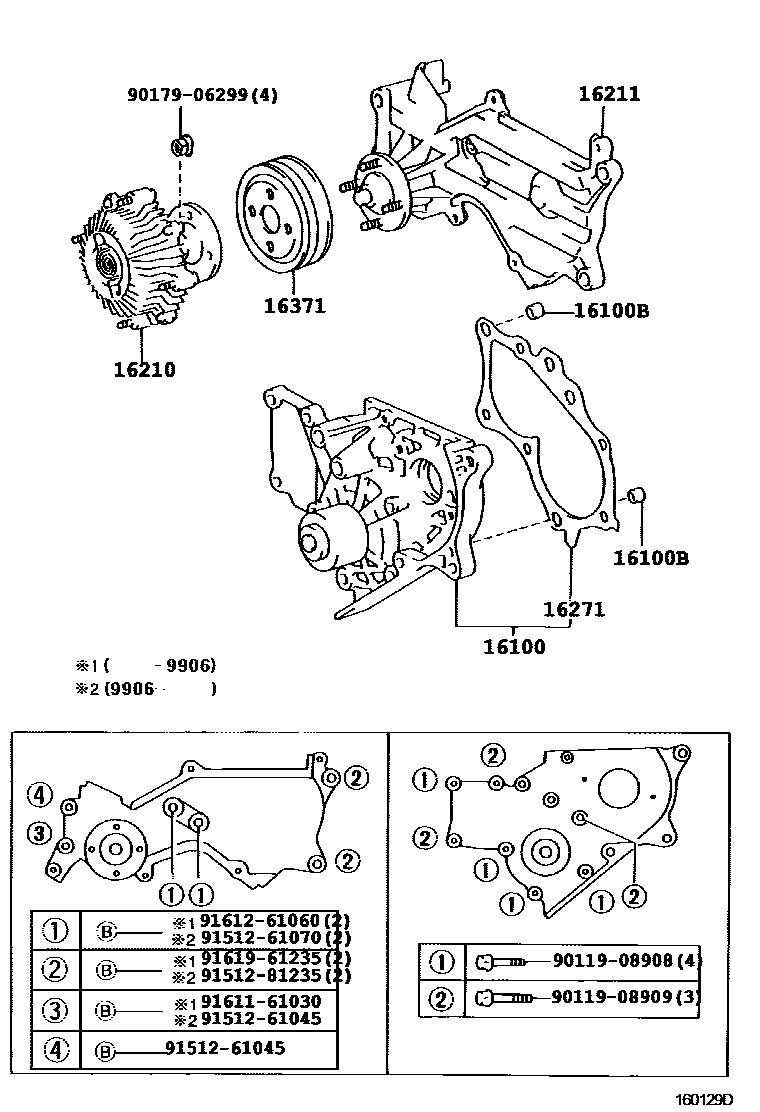

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-19156i5K..KR41199611-199812

main16100-19275i7K..KR42199611-199805

sub16100-19276

main16100-19276i7KE..KR42199805-200310

main16100-69295i2C..CR41199611-199704

sub16100-69296

main16100-69296i2C..CR41199704-199811

sub16100-69425

main16100-69298i2C..CR41199811-199812

sub16100-69435

main16100-69435i3CE..CR42199812-200407

main16100-79185i3SFE..SR40199611-200111

sub16100-79186

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021i2C..CR41199611-200412

16210COUPLING ASSY, FLUID

main16210-13030i7KE..KR42199611-200310

main16210-64020i3CE..CR42199611-200412

main16210-74020i3SFE..SR40199611-200111

16211BRACKET, FLUID COUPLING

main16211-74020i3SFE..SR40199611-200111

main16307-64021i2C..CR41199611-199904

sub16307-64022

sub11321-64080

sub11328-64070

sub91512-61045

sub91512-61070

sub91512-81235

main16307-64022i2C..CR41199904-200412

16271GASKET, WATER PUMP

main16271-13040i5K,7K..KR4#199611-200310

main16271-64030i2C..CR41199611-199811

sub16271-64031

main16271-64031i2C..CR41199811-200412

16371PULLEY, FAN

main16371-13010i5K,7K..KR4#199611-200310

main16371-64050i2C..CR41199611-200412

9011908908

main90119-08908

9011908909

main90119-08909

9017906299

main90179-06299

9151261045

main91512-61045

9151261070

main91512-61070

9151281235

main91512-81235

9161161030

main91611-61030

9161261060

main91612-61060

9161961235

main91619-61235

15 parts on this diagram · 3 diagrams in section
