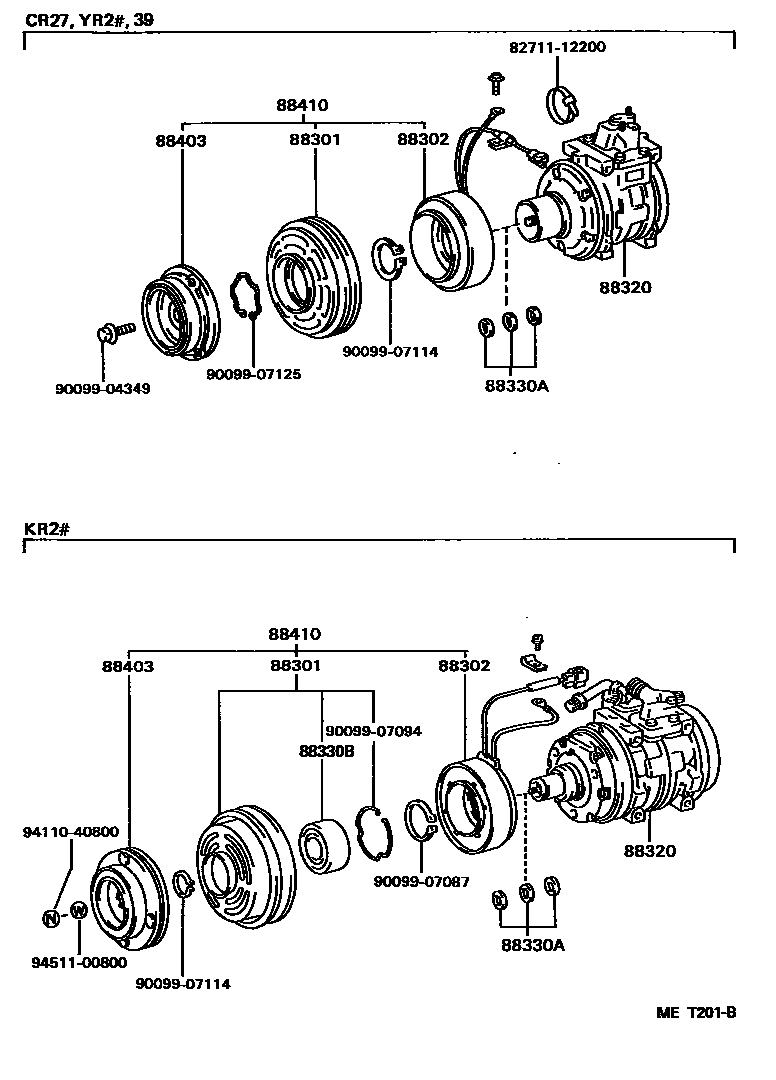

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iKR2#199201-199309

main88412-22240iKR2#199309-199610

main88412-28030iYR2#,39199201-200007

main88412-28040iCR27199201-199610

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22180iKR2#199201-199309

main88411-22300iKR2#199309-199610

main88411-22310iYR2#,39199309-199708

sub88411-2A030

main88411-28010iCR27199201-199309

sub88411-28030

main88411-28030iCR27199309-199610

main88411-2A030iYR21199708-200007

main88411-2B080iYR2#,39199201-199309

88320COMPRESSOR ASSY, COOLER

main88320-28120iYR2#,39199201-199309

sub88320-35H91

main88320-28130iCR27199201-199309

sub88320-60H90

main88320-28170iKR2#199201-199309

main88320-28230iKR2#199309-199610

main88320-28240iCR27199309-199610

main88320-28250iYR2#,39199309-200007

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iKR2#199201-199610

main88335-14020iCR27,YR21;YR39..05S199201-200007

88330BBEARING, MAGNET CLUTCH

main90099-10133iKR2#199201-199309

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iKR2#199201-199610

main88403-16011iCR27,YR2#,39199201-199309

main88403-30290iCR27,YR2#,39199309-200007

88410CLUTCH ASSY, MAGNET

main88410-22290iKR2#199201-199309

main88410-28070iYR2#,39199201-199309

sub88410-28140

main88410-28080iCR27199201-199309

main88410-28120iKR2#199309-199610

main88410-28130iCR27199309-199610

main88410-28140iYR2#,39199309-200007

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9009904349

main90099-04349

9009907087

main90099-07087

9009907094

main90099-07094

9009907114

main90099-07114

9009907125

main90099-07125

9411040800

main94110-40800

9451100800

main94511-00800

15 parts on this diagram · 6 diagrams in section
