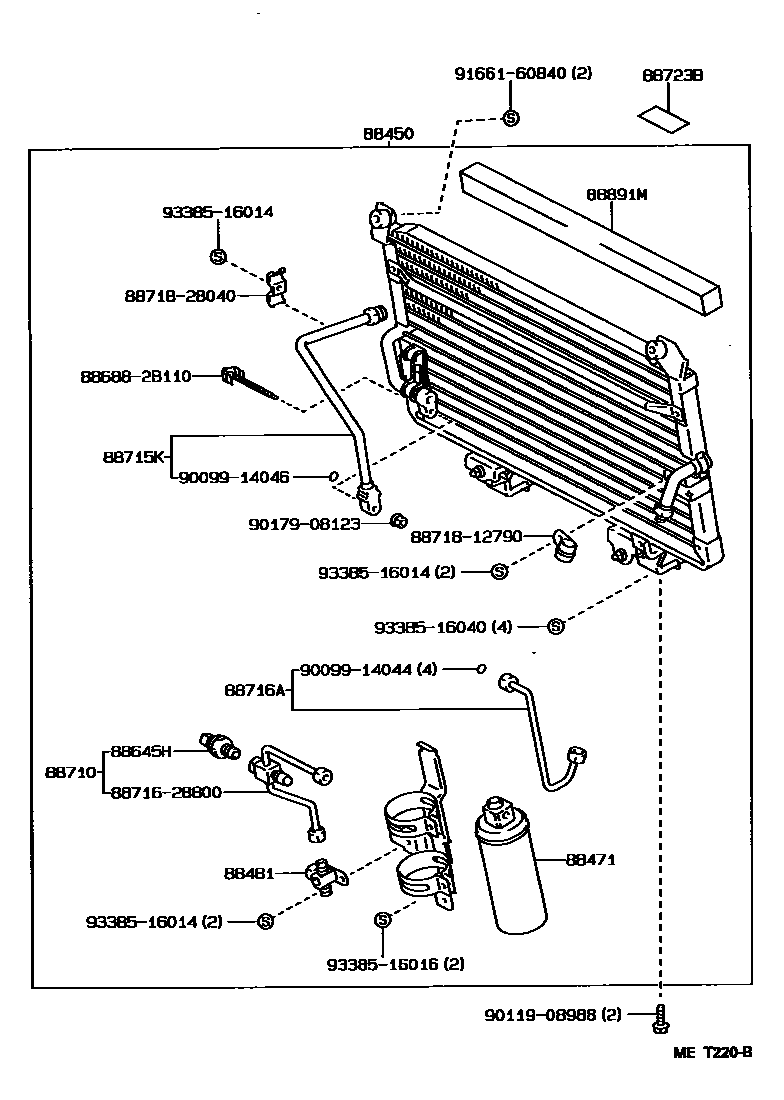

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER---SINGLE(MAKER OPTI0002 1CONDENSER---SINGLE(MAKER OPTI0003 1CONDENSER---SINGLE(MAKER OPTI0004 1 0005 1CONDENSER---SINGLE(DEALER OPT0006 1CONDENSER---DUAL(MAKER OPTION0007 1CONDENSER---DUAL(MAKER OPTION0008 1CONDENSER---DUAL(MAKER OPTION0009 1PIPING(MAKER OPTION) 0010 1PIPING(MAKER OPTION) 0011 1PIPING---SINGLE(DEALER OPTION0012 1PIPING(MAKER OPTION) 0013 1PIPING(MAKER OPTION) 0014 1PIPING(DEALER OPTION) 0015 1PIPING---SINGLE(MAKER OPTION)0016 1PIPING---SINGLE(DEALER OPTION0017 1PIPING---DUAL(MAKER OPTION) 0018 1PIPING---DUAL(DEALER OPTION) 0019 1PIPING---SINGLE(MAKER OPTION)0020 1RADIATOR PACKING(MAKER OPTION0021 1RADIATOR PACKING(DEALER OPTIO0022 1W/O(COOL BOX) :O-RING 0023 1W(COOL BOX):O-RING

88450CONDENSER ASSY, W/RECEIVER

main88450-28030iYR39..05S;CR27,KR27..RHD199201-199309

main88450-28060iYR21199201-199309

MAKER OPTION SINGLE AIR CONDITIONER

main88450-28070iYR21199201-199309

DUAL AIR CONDITIONER

main88450-28170iYR39..05S;CR27,KR27..RHD199309-199610

main88450-28190iYR21199309-200007

MAKER OPTION SINGLE AIR CONDITIONER

main88450-28190iCR27,KR2#..LHD199309-199610

main88450-28200iYR21199309-200007

DUAL AIR CONDITIONER

88471TANK, RECEIVER AIR CONDITIONER

main88470-14010iCR27,KR2#,YR2#,39199201-199309

sub04884-33110

main88471-28100iCR27,KR2#,YR2#,39199309-200007

88481GLASS, SIGHT

main88481-87002iCR27,KR2#,YR21..LHD199201-199309

main88481-87004iCR27,KR27,YR22,39..RHD199201-199309

88645HSWITCH, PRESSURE NO.1

main88645-30281iYR39..05S;CR27,KR2#,YR21199201-199309

main88645-34010iCR27,KR2#,YR21..LHD199309-200007

88710TUBE ASSY, AIR CONDITIONER

main88710-28640iCR27,KR27,YR39..RHD199201-199309

DEALER OPTION SINGLE AIR CONDITIONER

main88710-28660iYR22199201-199309

DEALER OPTION DUAL AIR CONDITIONER

main88710-2J420iCR27,KR27,YR39..RHD199309-199610

DEALER OPTION SINGLE AIR CONDITIONER

main88710-2J490iYR22199309-199610

DEALER OPTION DUAL AIR CONDITIONER

main88710-2J640iYR21199309-200007

MAKER OPTION SINGLE AIR CONDITIONER

main88710-2J640iCR27,KR2#..LHD199309-199610

main88710-2J650iYR21199309-200007

MAKER OPTION DUAL AIR CONDITIONER

88715KTUBE, DISCHARGE, K

main88715-28130iYR39..05S;CR27,KR27..RHD199201-199309

main88715-28440iYR21199309-200007

MAKER OPTION DUAL AIR CONDITIONER

main88715-28450iCR27,KR2#..LHD199309-199610

main88715-28450iYR21199309-200007

MAKER OPTION SINGLE AIR CONDITIONER

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88715-2R200iCR27,KR2#,YR21..LHD199309-200007

MAKER OPTION

main88716-2J860iCR27,KR27,YR22,39..RHD199309-199610

main88716-2R200iCR27,KR2#..LHD199309-200007

MAKER OPTION

main88716-87055iCR27,KR27,YR22,39..RHD199201-199309

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iYR39..05S;CR27,KR2#,YR2#199309-200007

88891MPACKING

main88578-28510iYR39..05S;CR27,KR2#,YR21199201-199309

main88893-28090iYR22199201-199610

886882B110BRACKET, COOLER DIAPHRAGM

main88688-2B110

8871628800TUBE, LIQUID

main88716-28800

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

8871828040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-28040

9009914044

main90099-14044

9009914046

main90099-14046

9011908988

main90119-08988

9017908123

main90179-08123

9166160840

main91661-60840

9338516014

main93385-16014

9338516016

main93385-16016

9338516040

main93385-16040

21 parts on this diagram · 23 diagrams in section
