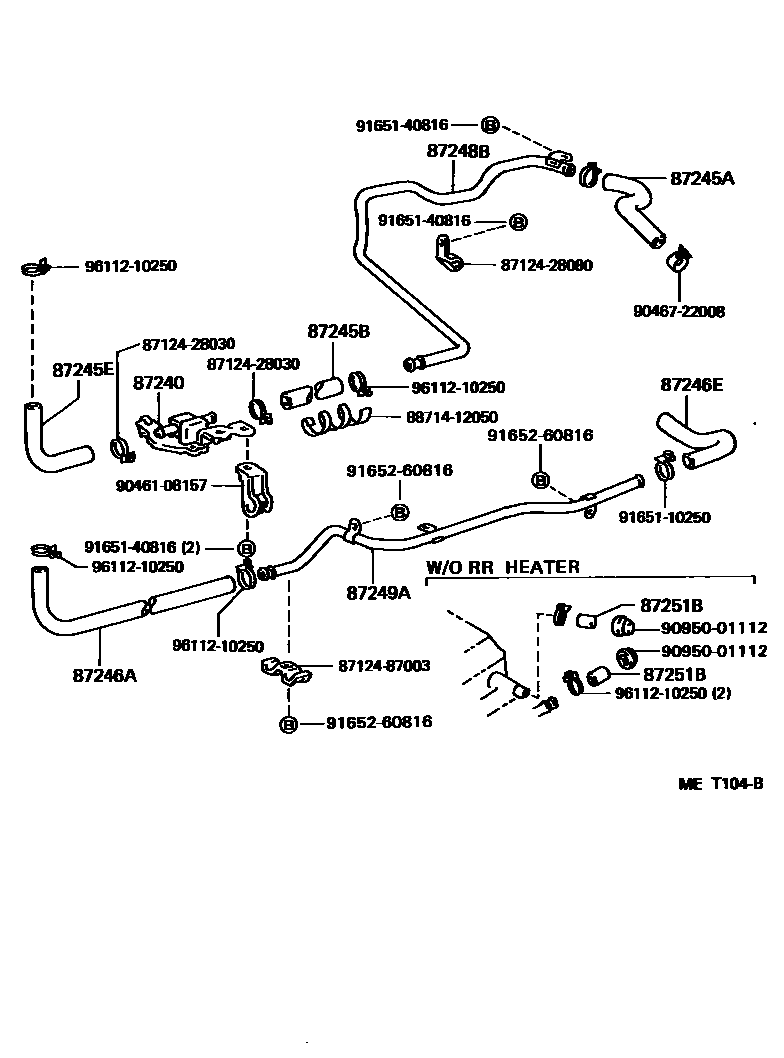

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-28030iCR27,KR2#,YR21..LHD199201-200007

main87240-87010iCR27,KR27,YR22,39..RHD199201-199610

87245AHOSE, HEATER WATER, INLET A

main87245-28220iCR27199201-199610

main87245-28230iKR27..06S199201-199610

HONG KONG SPEC

main87245-28250iKR27..06S199201-199610

main87245-28350iYR2#,39199201-200007

87245BHOSE, HEATER WATER, INLET B

main99556-30500iCR27,KR27,YR22,39..RHD199201-200007

L=500

87245EHOSE, HEATER WATER, INLET E

main87245-28050iCR27,KR2#,YR21..LHD199201-200007

main87245-28470iCR27..LHD199309-199610

main99556-30165iCR27,KR27,YR22,39..RHD199201-199610

*H,L=165

sub99556-30200

87246AHOSE, HEATER WATER, OUTLET A

main87245-28210iKR2#,YR21..LHD199201-200007

main87245-28450iCR27..LHD199309-199610

main99556-30700iCR27,KR27,YR22,39..RHD199201-199610

L=700

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-28240iKR27..06S199201-199610

main87245-28260iYR2#,39199201-200007

main87245-87017iCR27199201-199610

87248BPIPE, HEATER WATER INLET, B

main87208-28260iYR39..02S;YR22,39..STD..MRF199201-199610

main87208-28260iYR21,39..4D..(05S,08S)199201-200007

W(FRONT STD HEATER)

main87208-28290iYR21,39..4D..(05S,08S)199201-200007

W(REAR HEATER)

main87208-28290iYR22..DX199201-199309

main87208-28310iCR27199201-199610

87249APIPE, HEATER WATER OUTLET, A

main87208-28280iYR21,39..4D..(05S,08S)199201-200007

W(REAR HEATER)

main87208-28280iYR22..DX199201-199309

main87208-28300iYR21,39..4D..(05S,08S)199201-200007

W(FRONT STD HEATER)

main87208-28300iYR39..5D;YR39..02S;CR27,YR22..STD199201-199610

87251BPLUG, HEATER WATER

main90339-16001iYR39..05S;CR27,KR2#,YR21199201-200007

8712428030CLAMP, HEATER

main87124-28030

8712428080CLAMP, HEATER

main87124-28080

8712487003CLAMP, HEATER

main87124-87003

8871412050HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-12050

9046108157

main90461-08157

9046722008

main90467-22008

9095001112

main90950-01112

9165110250

main91651-10250

9165140816

main91651-40816

9165260816

main91652-60816

9611210250

main96112-10250

20 parts on this diagram · 3 diagrams in section
