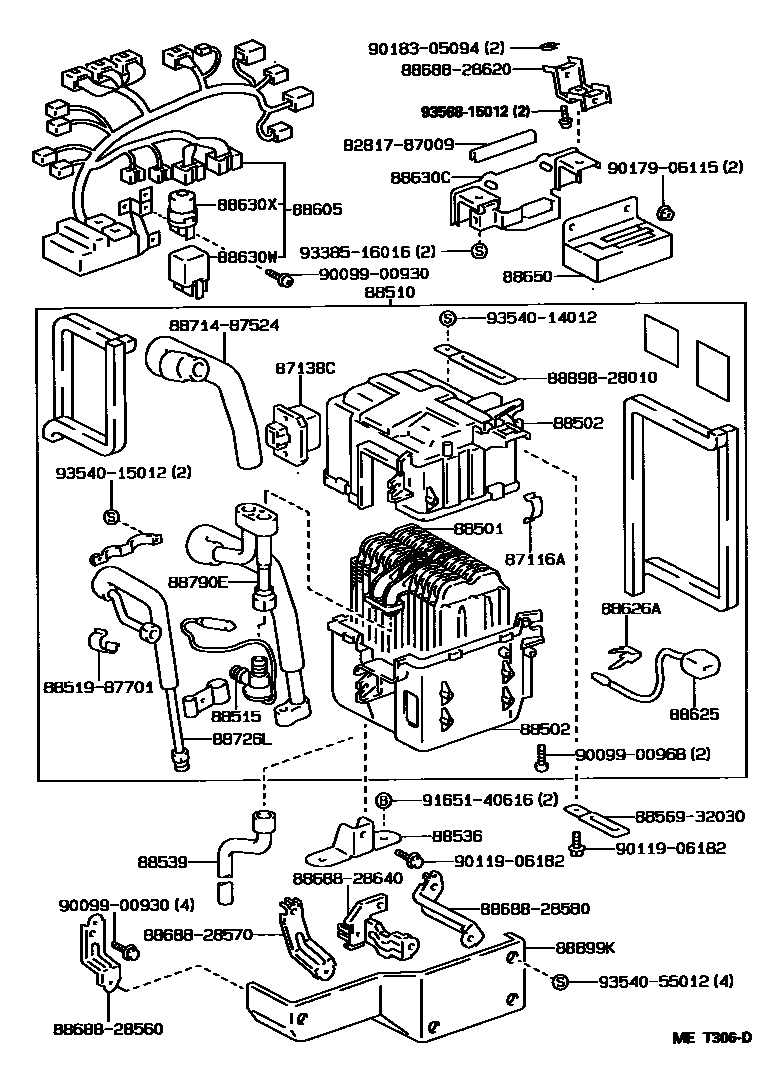

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT(MAKER OPTION) 0002 1FRONT(DEALER OPTION) 0003 1FRONT(MAKER OPTION) 0004 1REAR 0005 1COOL BOX 0006 1COOL BOX

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iCR27,KR27,YR22,39..RHD199201-200007

87138CRESISTOR, BLOWER

main87138-28050iYR39..05S;CR27,KR27..RHD199201-199610

main87138-28080iCR27,KR2#,YR21..LHD199201-200007

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28220iCR27,KR27,YR22,39..RHD199309-199410

sub88501-28221

main88501-28221iCR27,KR27,YR22,39..RHD199410-199610

main88501-28230iCR27,KR2#,YR21..LHD199309-200007

88502CASE SUB-ASSY, COOLING UNIT

main88502-28060iCR27,KR2#,YR21..LHD199201-199309

UPPER

sub88502-28330

main88502-28310iCR27,KR27,YR22,39..RHD199201-199610

UPPER

main88502-28320iCR27,KR27,YR22,39..RHD199201-199610

LOWER

main88502-28330iCR27,KR2#,YR21..LHD199309-200007

UPPER

main88502-28340iCR27,KR2#,YR21..LHD199201-200007

LOWER

88510UNIT ASSY, COOLER

main88510-28280iYR39..05S;CR27,KR27..RHD..(02S,03S)199201-199309

MAKER OPTION

main88510-28320iKR2#,YR21..LHD199201-199309

main88510-28330iCR27..LHD199201-199309

main88510-28350iYR22,39..02S,08S199201-199309

DEALER OPTION

main88510-28500iCR27,KR27..RHD..(05S,06S)199309-199610

MAKER OPTION

main88510-28510iKR2#,YR21..LHD199309-200007

main88510-28520iCR27..LHD199309-199610

main88510-28540iCR27,KR27..RHD..(05S,06S)199309-199610

DEALER OPTION

88515VALVE, COOLER EXPANSION

main88515-28090iCR27,KR2#..LHD199309-199610

main88515-28090iYR21199309-200007

FRONT

main88515-28100iCR27,KR27..RHD..(05S,06S)199309-199610

main88515-28110iCR27,KR27..RHD..(05S,06S)199511-199610

main88515-60030iYR22199309-200007

REAR

main88515-87002iCR27,KR27,YR22,39..RHD199201-199309

REAR

main88515-87004iYR21199201-199309

FRONT

88536BRACKET, COOLING UNIT, NO.1

main88536-28010iCR27,KR2#,YR21..LHD199201-200007

main88536-28020iCR27,KR27,YR22,39..RHD199201-199610

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-87010iCR27,KR27,YR22,39..RHD199201-199610

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-28540iKR2#..LHD199201-199610

main88605-28550iYR21199201-200007

MAKER OPTION SINGLE AIR CONDITIONER

main88605-28560iYR21199201-200007

MAKER OPTION DUAL AIR CONDITIONER

main88605-28570iCR27..LHD199201-199309

main88605-28580iKR27..RHD199201-199202

MAKER OPTION SINGLE AIR CONDITIONER

main88605-28590iKR27,YR39..RHD..(03S,05S,06S)199201-199610

MAKER OPTION SINGLE AIR CONDITIONER

main88605-28600iCR27..02S199201-199610

MAKER OPTION SINGLE AIR CONDITIONER

main88605-28730iKR27..RHD199201-199202

MAKER OPTION SINGLE AIR CONDITIONER & W(FRONT STD HEATER)

main88605-28740iYR39..05S199201-199610

MAKER OPTION SINGLE AIR CONDITIONER & W(FRONT STD HEATER)

main88605-28770iYR22199201-199610

DEALER OPTION SINGLE AIR CONDITIONER

main88605-2J110iKR27..06S199201-199610

DEALER OPTION SINGLE AIR CONDITIONER

main88605-2J120iCR27..RHD..05S199201-199610

DEALER OPTION SINGLE AIR CONDITIONER

main88605-2J140iYR22199201-199610

DEALER OPTION DUAL AIR CONDITIONER

main88605-2J870iCR27..LHD199309-199610

88625THERMISTOR, COOLER, NO.1

main88625-28130iCR27,KR27,YR22,39..RHD199309-199610

main88625-28150iCR27,KR2#,YR21..LHD199509-200007

main88625-90A00iCR27,KR27,YR22,39..RHD199201-199309

sub88625-12070

main88625-95A00iCR27,KR2#,YR21..LHD199201-199509

sub88625-28150

88626AHOLDER, THERMISTOR

main88626-28010iCR27,KR27,YR22,39..RHD199201-199610

FRONT

main88626-40050iYR22199201-200007

REAR

main88626-40050iCR27,KR2#,YR21..LHD199201-199309

FRONT

88630CBRACKET, COOLER RELAY

main88631-28100iYR21199201-200007

main88631-28120iCR27,KR27,YR22,39..RHD199201-199610

sub88631-28040

88630WRELAY ASSY

main85913-30020iCR27,KR2#,YR2#,39199201-200007

88630XRELAY ASSY

main90987-03001iCR27,KR2#,YR2#,39199201-200007

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-28150iKR27,YR22,39..RHD199201-199610

main88650-28170iCR27..RHD199201-199309

main88650-28220iKR2#,YR21..LHD199201-200007

main88650-28230iCR27..LHD199201-199309

main88650-28380iCR27..RHD199309-199610

main88650-28390iCR27..LHD199309-199610

88726LPIPE, COOLER REFRIGERANT LIQUID, L

main88716-2R160iCR27,KR27,YR22,39..RHD199309-199610

main88716-2R161iCR27,KR27..RHD..(05S,06S)199511-199610

88790ETUBE & ACCESSORY ASSY, AIRCONDITIONER

main88710-2J660iYR39..05S;CR27,KR27..RHD..(02S,03S)199309-199312

MAKER OPTION

main88710-2J660iCR27,KR27,YR22,39..RHD199312-199511

main88710-2J660iYR22,39..02S,08S199511-199610

DEALER OPTION

main88710-2J661iCR27,KR27..RHD..(05S,06S)199511-199610

MAKER OPTION

main88716-2R170iCR27,KR2#,YR21..LHD199309-200007

main88790-28060iCR27,KR27..RHD..(05S,06S)199309-199312

DEALER OPTION

sub88710-2J660

88899KPLATE, COVER

main88899-28010iCR27,KR2#,YR21..LHD199201-200007

main88899-28260iCR27,KR27,YR22,39..RHD199201-199610

8281787009PROTECTOR, WIRING HARNESS, NO.1

main82817-87009

8851987701HOLDER, REMOTE BULB

main88519-87701

8856932030CLAMP (FOR COOLER RELAY)

main88569-32030

8868828560BRACKET, COOLER DIAPHRAGM

main88688-28560

8868828570BRACKET, COOLER DIAPHRAGM

main88688-28570

8868828580BRACKET, COOLER DIAPHRAGM

main88688-28580

8868828620BRACKET, COOLER DIAPHRAGM

main88688-28620

8868828640BRACKET, COOLER DIAPHRAGM

main88688-28640

8871487524HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-87524

8889828010TUBE SUB-ASSY, EQUALIZER

main88898-28010

9009900930

main90099-00930

9009900968

main90099-00968

9011906182

main90119-06182

9017906115

main90179-06115

9018305094

main90183-05094

9165140616

main91651-40616

9338516016

main93385-16016

9354014012

main93540-14012

9354015012

main93540-15012

9354055012

main93540-55012

9356815012

main93568-15012

39 parts on this diagram · 6 diagrams in section
