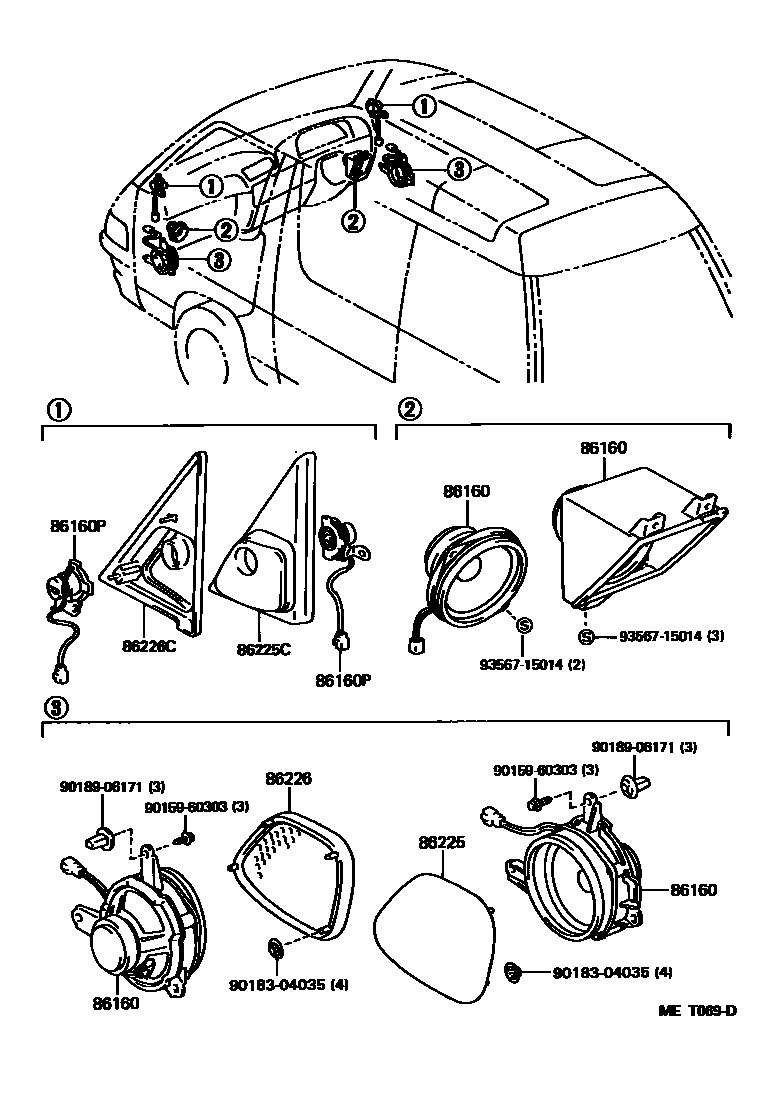

SPEAKER
86160SPEAKER ASSY, FRONT NO.1
DOOR,RH
DOOR,RH
INSTRUMENT PANEL,RH
INSTRUMENT PANEL,LH
INSTRUMENT PANEL,RH
DOOR,LH
86160PSPEAKER ASSY, FRONT NO.2
RH
86225COVER, SPEAKER, RH
GRAY,TRIM1#
86225CCOVER, TWEETER SPEAKER, RH
86226COVER, SPEAKER, LH
GRAY,TRIM1#
86226CCOVER, TWEETER SPEAKER, LH
9015960303
main90159-60303
9018304035
main90183-04035
9018906171
main90189-06171
9356715014
main93567-15014
10 parts on this diagram · 2 diagrams in section
