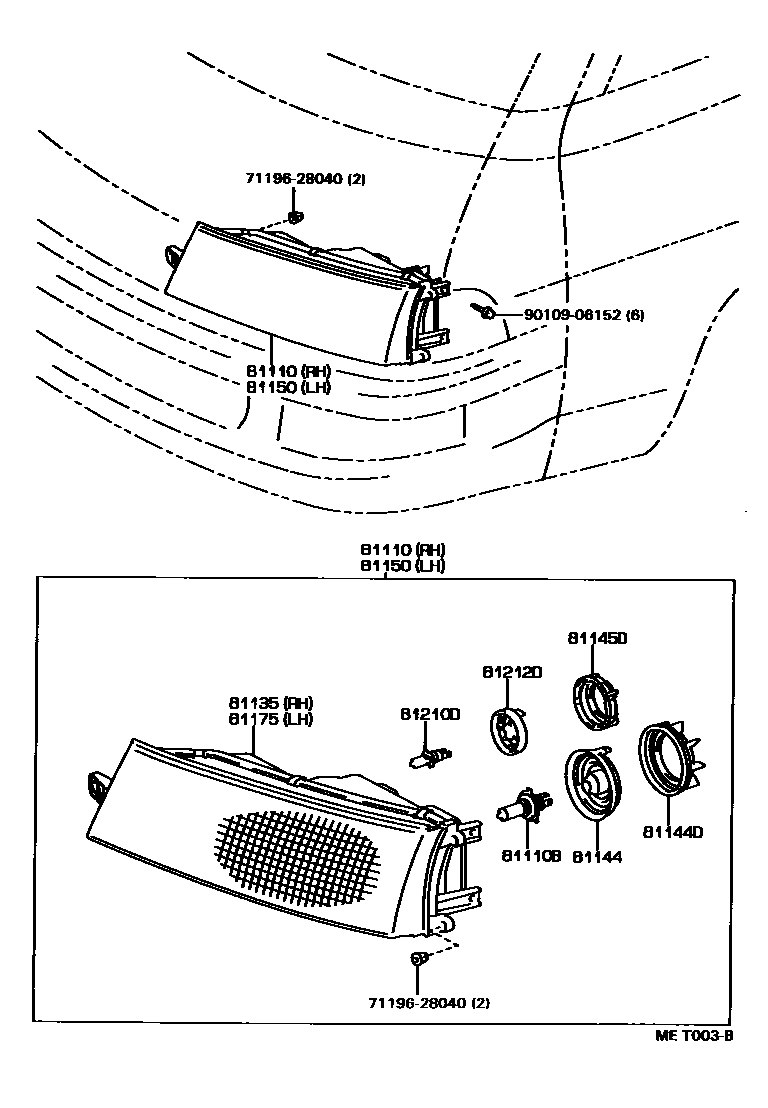

HEADLAMP
81110HEADLAMP ASSY, RH
NEWZEALAND SPEC & HALOGEN WHITE
HALOGEN WHITE
HALOGEN WHITE
HALOGEN YELLOW
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE
81135UNIT ASSY, HEADLAMP, RH
81144COVER, HEADLAMP, NO.1
81144DCAP, HEADLAMP LOCKING
81145DCAP, HEADLAMP LOCKING NO.2
81150HEADLAMP ASSY, LH
NEWZEALAND SPEC & HALOGEN WHITE
HALOGEN WHITE
HALOGEN WHITE
HALOGEN YELLOW
81175UNIT ASSY, HEADLAMP, LH
81210DBULB, FOG LAMP
12V 55W,HALOGEN
81212DCOVER, FOG LAMP
7119628040CLIP(FOR REAR SPOILER)
main71196-28040
9010906152
main90109-06152
12 parts on this diagram · 3 diagrams in section
