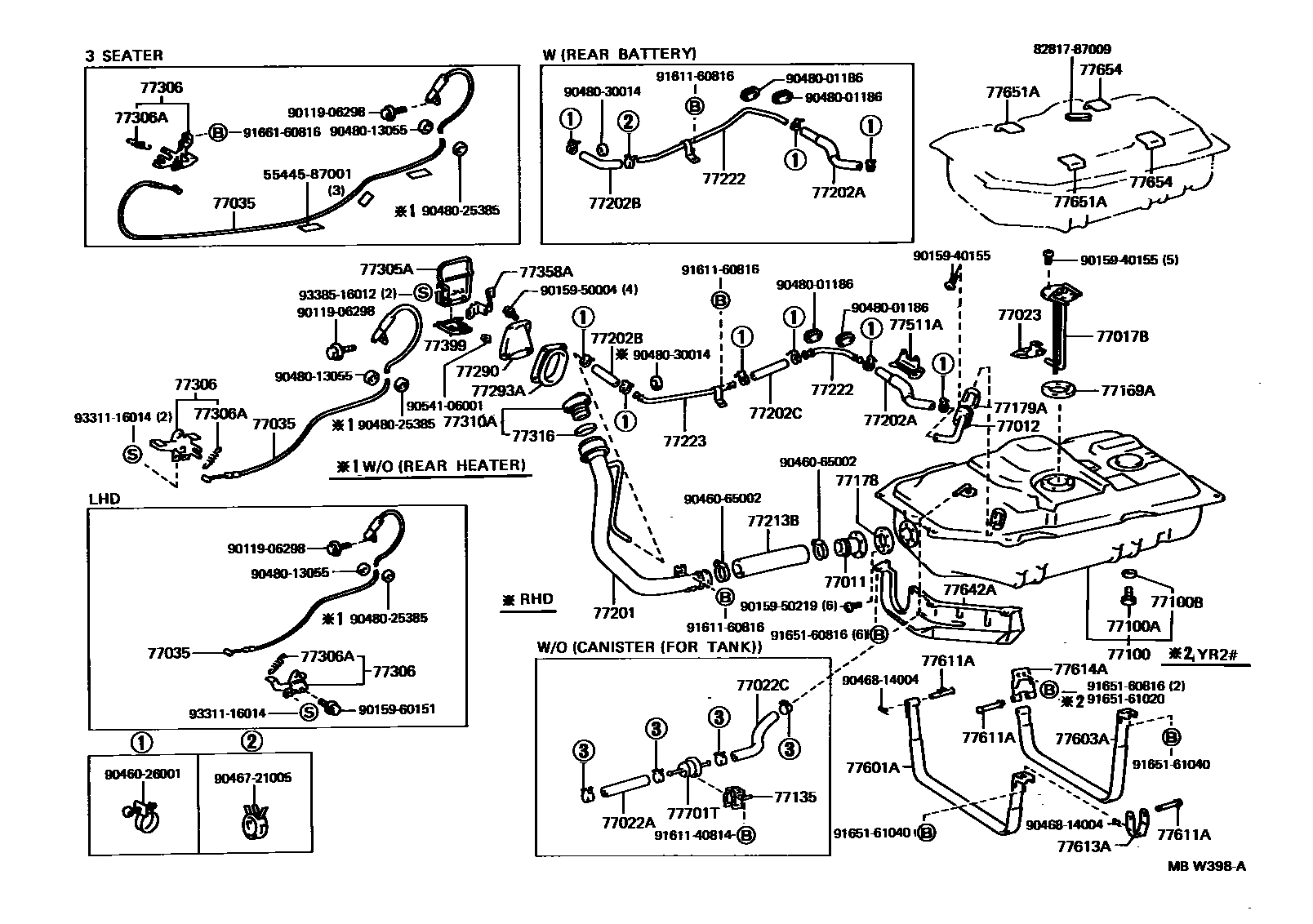

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77017BTUBE SUB-ASSY, FUEL TANK VENT
HONGKONG SPEC
77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022CHOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
SINGAPORE SPEC
SINGAPORE SPEC OR HONGKONG SPEC
NEWZEALAND SPEC
SINGAPORE SPEC OR THAILAND SPEC
HONGKONG SPEC
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=290
77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)
W(REAR HEATER)
77202CHOSE, FUEL, NO.3 (FOR BREATHER TUBE)
L=130
77213BHOSE, FUEL TANK TO FILLER PIPE
77222TUBE, FUEL TANK BREATHER, NO.2
W(REAR HEATER)
77223TUBE, FUEL TANK BREATHER, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77305ALID SUB-ASSY, FUEL FILLER OPENING
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77316GASKET, FUEL TANK CAP
77358ASTOPPER, FUEL FILLER OPENING LID
77399HANGER, FUEL TANK CAP
77511ABRACKET, FUEL TANK
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77611APIN (FOR FUEL TANK BAND)
L=77
L=73
L=85
77613ABRACKET, FUEL TANK BAND, NO.1
77614ABAND, FUEL TANK, NO.2 RH
77642APROTECTOR, FUEL TANK, NO.2
77651ACUSHION, FUEL TANK, NO.1
77654CUSHION, FUEL TANK, NO.2
77701TVALVE, CHECK (FOR MAIN FUEL TANK)
HONGKONG SPEC
5544587001GARNISH, INSTRUMENT PANEL OUTSIDE, RH
main55445-87001
8281787009PROTECTOR, WIRING HARNESS, NO.1
main82817-87009
9011906298
main90119-06298
9015940155
main90159-40155
9015950004
main90159-50004
9015950219
main90159-50219
9015960151
main90159-60151
9046026001
main90460-26001
9046065002
main90460-65002
9046721005
main90467-21005
9046814004
main90468-14004
9048001186
main90480-01186
9048013055
main90480-13055
9048025385
main90480-25385
9048030014
main90480-30014
9054106001
main90541-06001
9161140814
main91611-40814
9161160816
main91611-60816
9165160816
main91651-60816
9165161020
main91651-61020
9165161040
main91651-61040
9166160816
main91661-60816
9331116014
main93311-16014
9338516012
main93385-16012
64 parts on this diagram · 6 diagrams in section
