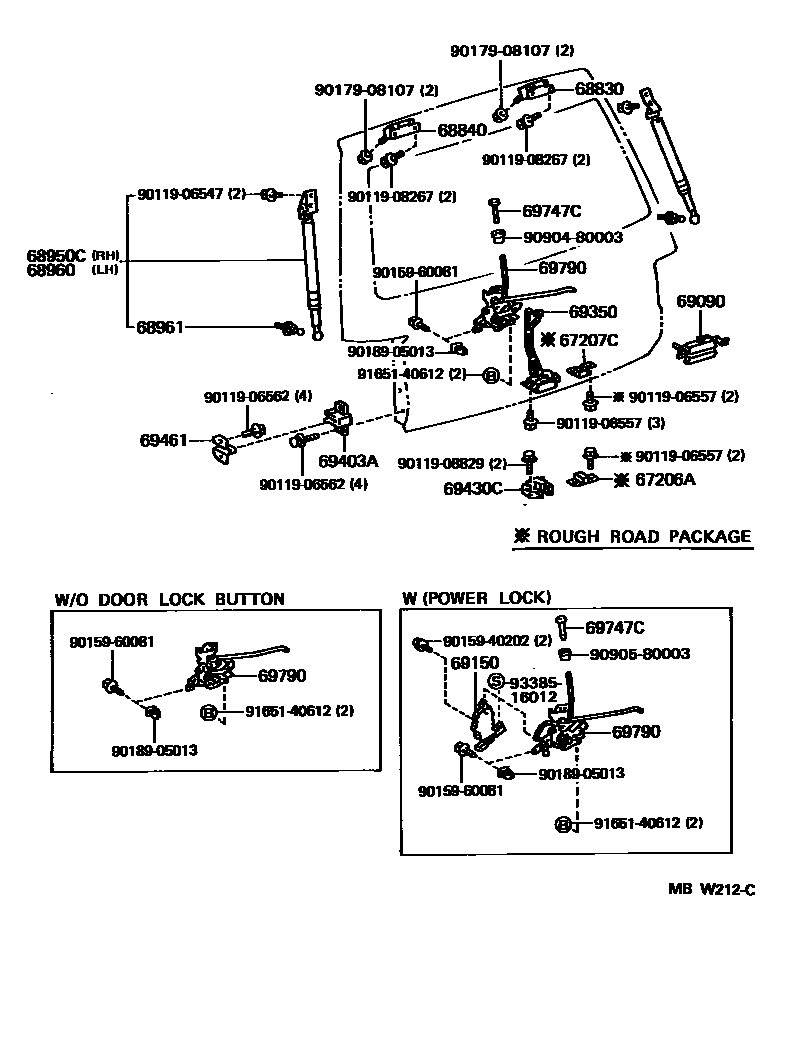

BACK DOOR LOCK & HINGE
67206ABRACKET SUB-ASSY, BACK DOOR STOPPER
ROUGH ROAD PACKAGE
67207CSTOPPER SUB-ASSY, BACK DOOR
ROUGH ROAD PACKAGE
68830HINGE ASSY, BACK DOOR, RH
68840HINGE ASSY, BACK DOOR, LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69150ACTUATOR ASSY, BACK DOOR LOCK
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69461STOPPER, BACK DOOR SIDE MALE, RH
69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)
69790CONTROL ASSY, BACK DOOR LOCK
NEWZEALAND SPEC
W(POWER LOCK)
9011906547
main90119-06547
9011906557
main90119-06557
9011906562
main90119-06562
9011908267
main90119-08267
9011908829
main90119-08829
9015940202
main90159-40202
9015960081
main90159-60081
9017908107
main90179-08107
9018905013
main90189-05013
9090480003
main90904-80003
9090580003
main90905-80003
9165140612
main91651-40612
9338516012
main93385-16012
28 parts on this diagram · 1 diagram in section
