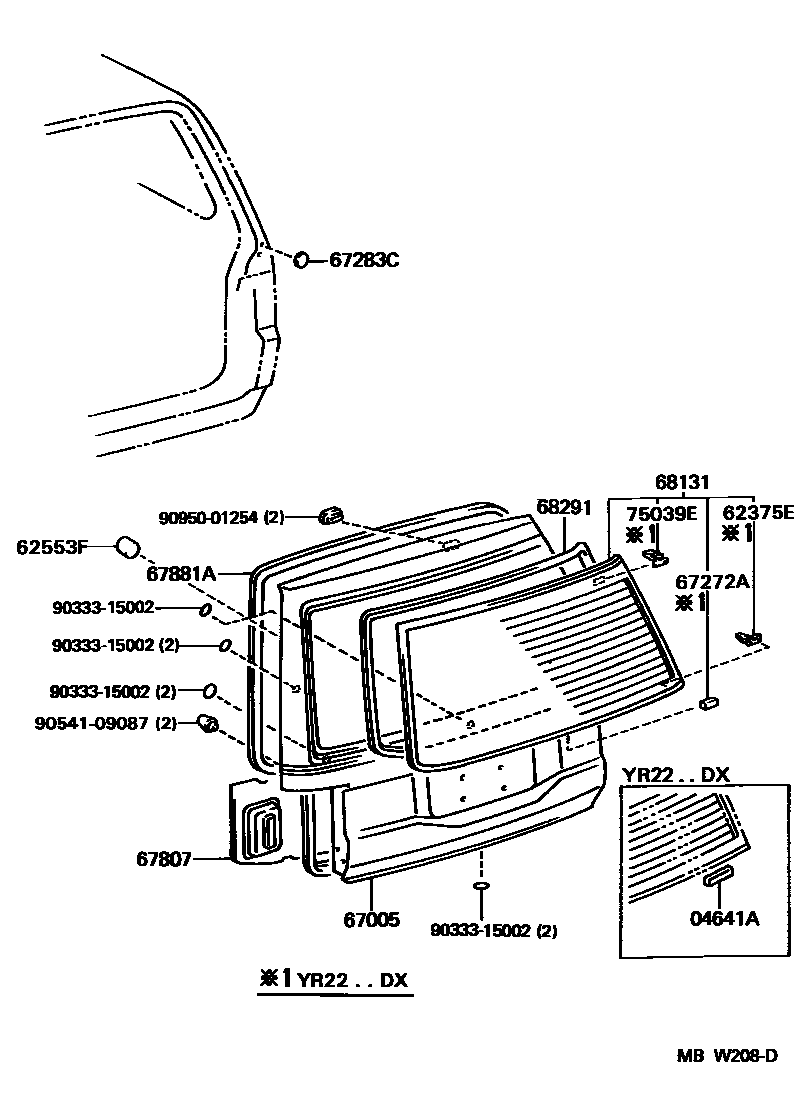

BACK DOOR PANEL & GLASS

0001 1 0002 1

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main68294-28010×2iYR22..DX199201-199208

62375ECLIP, SIDE WINDOW, NO.1

main62375-28020×2iYR22..DX199201-199309

62553FPAD, PILLAR, NO.3

main62553-20030×2iYR22,39..02S,08S199201-199610

67005PANEL SUB-ASSY, BACK DOOR

main67005-28430iYR39..05S;CR27,KR2#,YR21199201-200007

main67005-28500iYR22..DX199201-199309

main67005-28580iYR22..DX199201-199309

ROUGH ROAD PACKAGE

main67005-28620iCR27,YR21;KR27,YR39..03S,05S,06S199201-200007

ROUGH ROAD PACKAGE & W(*RW & *RUM)

main67005-28630iYR39..05S;CR27,KR2#,YR21199201-200007

W(*RW & *RUM)

main67005-28670iCR27,YR21;KR27,YR39..03S,05S,06S199201-200007

ROUGH ROAD PACKAGE & W(*RW)

main67005-28680iYR39..05S;CR27,KR2#,YR21199201-200007

W(*RW)

main67005-28710iKR2#..02S,08S199201-199610

ROUGH ROAD PACKAGE & W(*RUM)

main67005-28720iYR39..05S;CR27,KR2#,YR21199201-200007

W(*RUM)

main67005-28760iYR39..05S;CR27,KR2#,YR21199201-200007

ROUGH ROAD PACKAGE

main67005-2J100iYR39..02S199201-199610

ROUGH ROAD PACKAGE

main67005-2J110iYR39..02S199201-199610

main67005-2J120iYR21199309-200007

CHINA SPEC & ROUGH ROAD PACKAGE & W(*RW)

main67005-2J130iYR22..STD199201-199610

W(*RW)

main67005-2J390iYR21199309-200007

CHINA SPEC & ROUGH ROAD PACKAGE &W(*RUM)

main67005-2J400iYR21199309-200007

CHINA SPEC & ROUGH ROAD PACKAGE & W(*RUM & *RW)

main67005-2J410iYR21199309-200007

CHINA SPEC & W(*RUM)

main67005-2J420iYR21199309-200007

CHINA SPEC & W(*RUM & *RW)

67272ACUSHION, BACK DOOR STOPPER, NO.2

main67272-28010iYR22..DX199201-199309

67283CCOVER, BACK DOOR STOPPER CUSHION, NO.1

main67283-28020×2iCR27,KR2#,YR2#,39199201-199402

main90950-06096×2iCR27,KR2#,YR2#,39199402-200007

67807COVER SUB-ASSY, BACK DOOR SERVICE HOLE

main67807-28010iYR39..05S199201-199411

NEWZEALAND SPEC

main67807-28030iYR39..05S199411-199610

NEWZEALAND SPEC

main67847-28040iCR27,KR27,YR39199201-199610

NEWZEALAND SPEC & W/O(RR NO.1 SEAT)

67881AWEATHERSTRIP, BACK DOOR

main67881-28020iYR22..STD;CR27,KR2#,YR21,39199201-200007

main67881-28040iYR22..DX199201-199309

68131GLASS, BACK DOOR

main68105-28040iCR27,KR2#,YR21,39199201-199408

*EHT,T=3.5

main68105-28050iYR22..STD199201-199408

*EHT,T=3.5,BLUE

main68105-28060iYR22..DX199201-199309

*EHT,T=4.0,BLUE

main68105-28070iYR22..DX199201-199309

*EHT,T=4.0

main68105-28110iYR22199408-199610

*EHT,T=3.5

main68105-28120iYR22199408-199610

*EHT,T=3.5,BLUE

main68131-28140iCR27,KR2#,YR21,39199201-200007

*TEM,T=3.5

main68131-28160iCR27,KR2#,YR21,39..05S,06S,08S199201-200007

*TEM,T=3.5,BLUE

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-28020iYR22..STD;CR27,KR2#,YR21,39199201-200007

75039ECLIP SUB-ASSY, OUTSIDE MOULDING, NO.1

main75039-28010×2iYR22..DX199201-199309

9033315002

main90333-15002

9054109087

main90541-09087

9095001254

main90950-01254

14 parts on this diagram · 2 diagrams in section
