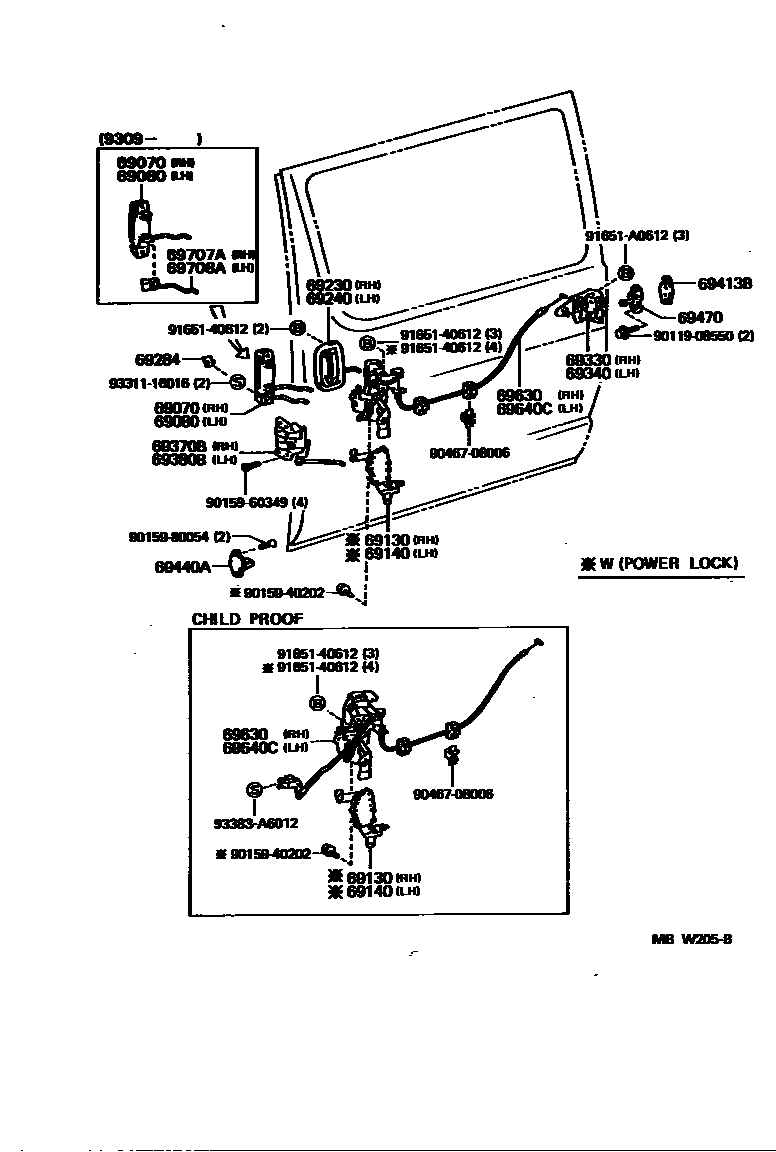

REAR DOOR LOCK & HANDLE

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-28030-B0iKR27,YR39..5D;CR27,KR2#,YR21..LHD..4D199201-200007

GRAY,TRIM1#

main69070-28040-B0iKR27,YR39..5D;CR27,KR2#..LHD..4D199309-199610

GRAY,TRIM1#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-28010-B0iKR27,YR39..5D199201-199610

GRAY,TRIM1#

sub69080-28010

main69080-28020-B0iCR27,YR39..RHD;KR27..02S,03S,06S199309-199610

GRAY,TRIM1#

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-28010iYR21,39..MRF;KR27..5D..03S199201-200007

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-28010iCR27,KR27,YR22,39..RHD199201-199610

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-28030iKR27,YR39..5D;CR27,KR2#,YR21..LHD..4D199201-200007

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-28010iCR27,YR22,39..RHD;KR27..02S,03S,06S199201-199610

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-95J00-03iCR27,KR2#,YR21..LHD..4D199201-199308

GRAY,TRIM1#

sub69284-95J00

main69284-95J00-B0iCR27,KR2#,YR2#,39..4D199308-200007

BLUISH GRAY,TRIM1#

sub69284-95J00

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iKR27,YR39..5D;CR27,KR2#,YR21..LHD..4D199201-200007

69340LOCK ASSY, REAR DOOR, LH

main69340-87001iCR27,YR22,39..RHD;KR27..02S,03S,06S199201-199610

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28030iYR39..5D;CR27,KR2#,YR21..LHD..4D199201-200007

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28030iCR27,KR27,YR22,39..RHD..(05S,06S,08S)199201-199610

69413BSHIM, DOOR LOCK STRIKER

main69413-28020iCR27,KR2#,YR2#,39199201-200007

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iCR27,KR2#,YR2#,39..4D..(05S,06S,08S)199408-200007

sub69440-46010

main69440-28020iCR27,KR2#,YR2#,39..4D..(05S,06S,08S)199201-199408

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28030iKR27,YR39..5D199201-200007

sub69470-46010

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-28040iKR27,YR39..5D;CR27,KR2#..LHD..4D199201-199610

main69650-28020iKR27..5D..03S199201-199610

W(POWER LOCK)

main69650-28020iYR39..5D199201-199610

NEWZEALAND SPEC & W/O(REAR NO.1 SEAT)

main69650-28030iYR21199201-200007

main69650-28030iYR39..5D199201-199610

NEWZEALAND SPEC

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28040iYR39..4D..05S199206-199610

NEWZEALAND SPEC & W/O(REAR NO.1 SEAT)

main69640-28040iCR27,YR39..RHD;KR27..02S,03S,06S199201-199610

main69640-28060iYR39..4D..05S199206-199610

NEWZEALAND SPEC

main69640-28060iYR22199201-199610

main69660-28010iYR39..5D199201-199610

NEWZEALAND SPEC & W/O(REAR NO.1 SEAT)

main69660-28010iYR39..02S;CR27,KR27..RHD199201-199610

W(POWER LOCK)

main69660-28010iYR39..5D199206-199610

NEWZEALAND SPEC & W(POWER LOCK) & W/O(REAR NO.1 SEAT)

main69660-28020iYR39..4D..05S199206-199610

NEWZEALAND SPEC & W(POWER LOCK)

main69660-28020iYR39..4D..05S199201-199610

NEWZEALAND SPEC

main69660-28020iYR22199201-199610

W(POWER LOCK)

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-28010-B0iKR27,YR39..5D;CR27,KR2#..LHD..4D199309-199610

GRAY,TRIM1#

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-28010-B0iCR27,YR39..RHD;KR27..02S,03S,06S199309-199610

GRAY,TRIM1#

9011908550

main90119-08550

9015940202

main90159-40202

9015960349

main90159-60349

9015980054

main90159-80054

9046708006

main90467-08006

9165140612

main91651-40612

91651A0612

main91651-A0612

9331116016

main93311-16016

93383A6012

main93383-A6012

27 parts on this diagram · 1 diagram in section
