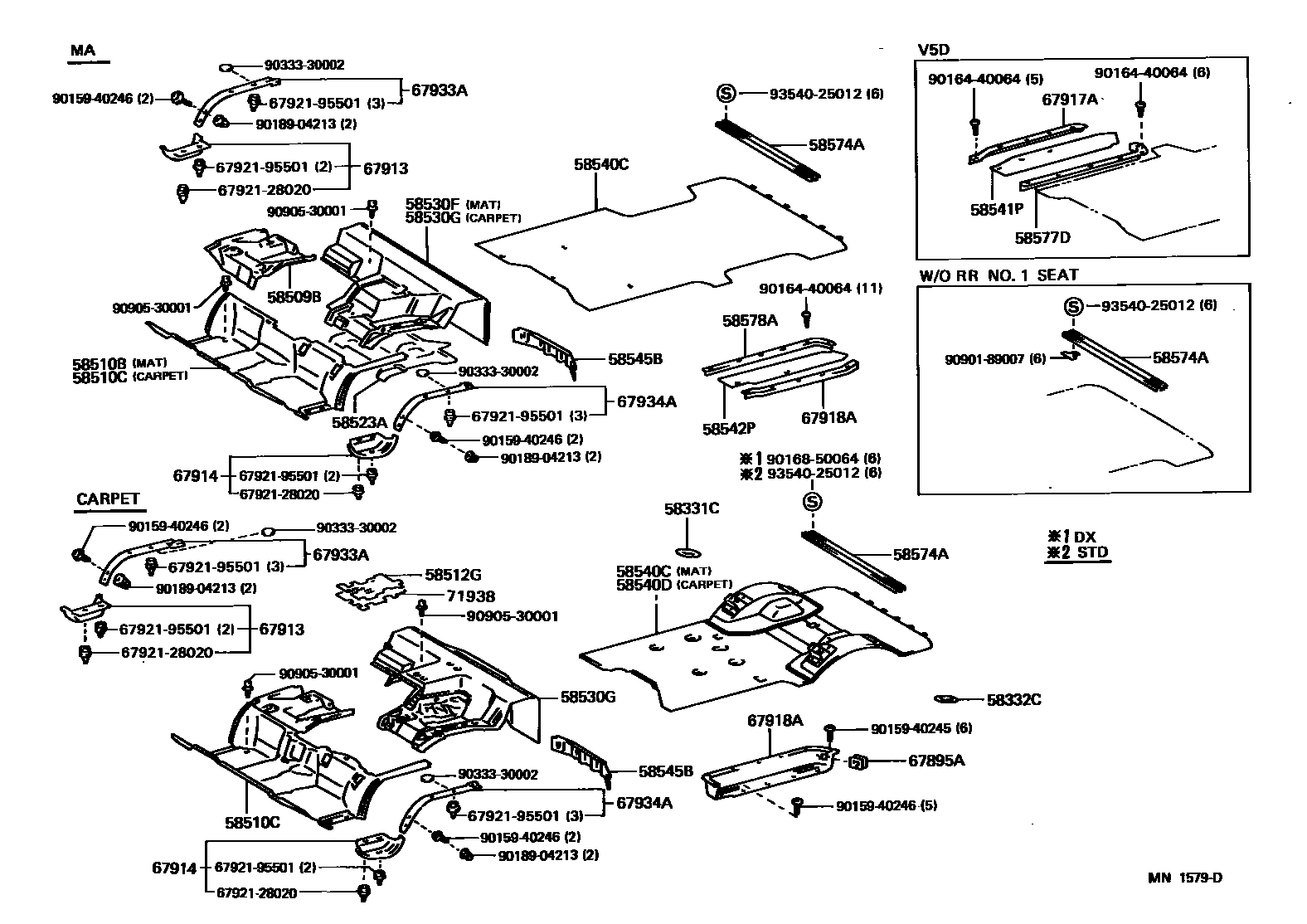

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58331CCOVER, REAR FLOOR SIDE SERVICE HOLE, RH

main58331-28010iYR2#199403-200007

main58331-87001-B2iYR2#199201-199403

GRAY,TRIM1#

sub58331-87001

58332CCOVER, REAR FLOOR SIDE SERVICE HOLE, LH

main58332-28050iYR2#199403-200007

main58332-87002-B2iYR2#199201-199403

GRAY,TRIM1#

sub58332-87002

58509BMAT SUB-ASSY, SEAT FLOOR

main58509-28010-B0iCR27,KR2#..LHD199201-199610

GRAY,TRIM1#

main58509-28020-B0iKR27..RHD199210-199610

GRAY,TRIM1#

main58509-28030-B0iCR27,YR39..RHD199201-199610

GRAY,TRIM1#

58510BMAT, FRONT FLOOR, FRONT

main58510-28550-B0iCR27,YR39..RHD199201-199305

GRAY,TRIM1#

main58510-28551-B0iCR27,YR39..RHD199305-199610

GRAY,TRIM1#

main58510-28580-B0iKR27..RHD199201-199305

GRAY,TRIM1#

main58510-28581-B0iKR27..RHD199305-199610

GRAY,TRIM1#

main58510-2J080-B0iCR27,KR2#..LHD199201-199305

GRAY,TRIM1#

main58510-2J081-B0iCR27,KR2#..LHD199305-199610

GRAY,TRIM1#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-28590-B1iYR39..05S199201-199301

GRAY,TRIM1#

main58510-28591-B1iYR39..05S199211-199305

GRAY,TRIM1#

main58510-28592-B0iYR39..05S199305-199309

GRAY,TRIM1#

main58510-2J030-B0iYR22199201-199211

GRAY,TRIM1#

main58510-2J031-B0iYR22199211-199305

GRAY,TRIM1#

main58510-2J032-B0iYR22199305-199309

GRAY,TRIM1#

main58510-2J040-B0iYR21199201-199211

GRAY,TRIM1#

main58510-2J041-B0iYR21199211-199305

GRAY,TRIM1#

main58510-2J042-B0iYR21199305-199309

GRAY,TRIM1#

main58510-2J650-B0iYR22199309-199610

GRAY,TRIM1#

main58510-2J660-B1iYR21199309-200007

GRAY,TRIM1#

main58510-2J680-B0iYR39..05S199309-199610

GRAY,TRIM1#

58512GSILENCER, FRONT FLOOR, NO.2

main58512-87005iYR2#199201-200007

58523AMAT, SEAT FLOOR

main58523-28020-B0iKR27..RHD199201-199610

GRAY,TRIM1#

58530FMAT ASSY, HEADER

main58530-28300-B0iCR27..RHD199201-199309

GRAY,TRIM1#

main58530-28330-B0iYR39..02S199201-199309

GRAY,TRIM1#

main58530-28340-B0iYR39..4D..05S199201-199309

GRAY,TRIM1#

main58530-28370-B0iCR27,KR2#..LHD..4D199201-199309

GRAY,TRIM1#

main58530-28430-B0iKR28199201-199309

W(REAR HEATER),GRAY,TRIM1#

main58530-28460-B0iKR27..RHD..4D199201-199610

GRAY,TRIM1#

main58530-28640-B0iKR27..5D..03S199201-199610

GRAY,TRIM1#

main58530-28670-B0iYR39..5D199201-199309

GRAY,TRIM1#

main58530-28690-B0iYR39..4D..05S199201-199309

W(REAR HEATER),GRAY,TRIM1#

main58530-28710-B0iKR27..02S199201-199309

GRAY,TRIM1#

main58530-2J010-B0iCR27..RHD199309-199610

GRAY,TRIM1#

main58530-2J030-B0iYR39..4D..05S199309-199610

W(REAR HEATER),GRAY,TRIM1#

main58530-2J040-B0iYR39..02S199309-199610

GRAY,TRIM1#

main58530-2J050-B0iYR39..4D..05S199309-199610

GRAY,TRIM1#

main58530-2J070-B0iYR39..5D199309-199610

GRAY,TRIM1#

main58530-2J080-B0iCR27,KR2#..LHD..4D199309-199610

GRAY,TRIM1#

main58530-2J100-B0iKR28199309-199610

W(REAR HEATER),GRAY,TRIM1#

main58530-2J130-B0iKR27..02S199309-199610

GRAY,TRIM1#

58530GCARPET ASSY, HEADER

main58530-28220-B0iYR39..4D..05S199201-199211

GRAY,TRIM1#

main58530-28221-B0iYR39..4D..05S199301-199309

GRAY,TRIM1#

main58530-28230-B0iYR39..5D199201-199211

GRAY,TRIM1#

main58530-28231-B0iYR39..5D199211-199309

GRAY,TRIM1#

main58530-28240-B0iYR21199201-199301

W(REAR HEATER),GRAY,TRIM1#

main58530-28241-B0iYR21199211-199309

W(REAR HEATER),GRAY,TRIM1#

main58530-28250-B0iYR21199201-199211

GRAY,TRIM1#

main58530-28251-B0iYR21199211-199309

GRAY,TRIM1#

main58530-28270-B0iYR39..4D..05S199201-199211

W(REAR HEATER),GRAY,TRIM1#

main58530-28270-B0iYR39..4D..05S199211-199301

GRAY,TRIM1#

main58530-28271-B0iYR39..4D..05S199301-199309

W(REAR HEATER),GRAY,TRIM1#

main58530-28271-B0iYR39..4D..05S199211-199301

GRAY,TRIM1#

main58530-28540-B1iYR22..STD199201-199211

W(REAR HEATER),GRAY,TRIM1#

main58530-28541-B1iYR22..STD199211-199309

W(REAR HEATER),GRAY,TRIM1#

main58530-28600-B0iYR22..DX199201-199211

GRAY,TRIM1#

main58530-28601-B0iYR22..DX199211-199309

GRAY,TRIM1#

main58530-28650-B0iYR22..STD199201-199211

GRAY,TRIM1#

main58530-28651-B0iYR22..STD199211-199309

GRAY,TRIM1#

main58530-28800-B1iYR39..4D..05S199309-199610

W(REAR HEATER),GRAY,TRIM1#

main58530-28810-B0iYR39..4D..05S199309-199610

GRAY,TRIM1#

main58530-28820-B1iYR22199309-199403

GRAY,TRIM1#

main58530-28830-B0iYR22199309-199403

W(REAR HEATER),GRAY,TRIM1#

main58530-28840-B0iYR39..5D199309-199610

GRAY,TRIM1#

main58530-28870-B1iYR21199309-200007

GRAY,TRIM1#

main58530-28880-B1iYR21199309-200007

W(REAR HEATER),GRAY,TRIM1#

main58530-2J170-B0iYR22199403-199610

GRAY,TRIM1#

58540CMAT ASSY, FLOOR, REAR

main58540-28350-B0iCR27..RHD..05S199201-199309

HONGKONG SPEC,GRAY,TRIM1#

sub58540-2J170

main58540-28460-B0iKR27..06S199201-199309

GRAY,TRIM1#

main58540-28470-B0iYR39..4D..05S199201-199309

GRAY,TRIM1#

main58540-28610-B0iKR28199201-199309

GRAY,TRIM1#

main58540-28660-B0iYR39..4D..05S199201-199309

W(REAR HEATER),GRAY,TRIM1#

main58540-28670-B0iKR28199201-199309

W(REAR HEATER),GRAY,TRIM1#

main58540-28710-B1iYR22..STD199201-199309

GRAY,TRIM1#

main58540-28720-B0iCR27,KR27..LHD..05S199201-199309

GRAY,TRIM1#

main58540-28750-B0iCR27..RHD..05S199201-199309

GRAY,TRIM1#

main58540-28800-B0iYR39..5D199201-199309

GRAY,TRIM1#

main58540-28810-B0iYR39..5D199201-199309

W/O(REAR NO.1 SEAT),GRAY,TRIM1#

main58540-28820-B0iYR39..4D..05S199201-199309

W/O(REAR NO.1 SEAT),GRAY,TRIM1#

main58540-28830-B0iYR39..4D..05S199201-199309

W/O(REAR NO.1 SEAT) & W(REAR HEATER),GRAY,TRIM1#

main58540-28850-B0iKR27..06S199201-199309

HONGKONG SPEC,GRAY,TRIM1#

main58540-2J140-B0iKR27..06S199309-199610

GRAY,TRIM1#

sub58540-28460

main58540-2J160-B0iKR27..06S199309-199610

HONGKONG SPEC,GRAY,TRIM1#

sub58540-28850

main58540-2J170-B0iCR27..RHD..05S199309-199610

HONGKONG SPEC,GRAY,TRIM1#

main58540-2J210-B0iYR39..4D..05S199309-199610

GRAY,TRIM1#

sub58540-28470

main58540-2J220-B0iYR39..4D..05S199309-199610

W(REAR HEATER),GRAY,TRIM1#

sub58540-28660

main58540-2J230-B0iCR27..RHD..05S199309-199610

GRAY,TRIM1#

sub58540-28750

main58540-2J250-B0iYR39..5D199309-199610

GRAY,TRIM1#

sub58540-28800

main58540-2J260-B0iYR39..5D199309-199610

W/O(REAR NO.1 SEAT),GRAY,TRIM1#

sub58540-28810

main58540-2J270-B0iYR39..4D..05S199309-199610

W/O(REAR NO.1 SEAT),GRAY,TRIM1#

sub58540-28820

main58540-2J420-B0iCR27,KR27..LHD..05S199309-199610

GRAY,TRIM1#

sub58540-28720

main58540-2J430-B0iKR28199309-199610

W(REAR HEATER),GRAY,TRIM1#

sub58540-28670

main58540-2J440-B0iKR28199309-199610

GRAY,TRIM1#

sub58540-28610

58540DCARPET ASSY, FLOOR, REAR

main58540-28230-B0iYR21199201-199309

W(REAR HEATER),GRAY,TRIM1#

sub58540-2J010

main58540-28240-B0iYR21199201-199309

GRAY,TRIM1#

sub58540-2J020

main58540-28300-B0iYR22199201-199309

GRAY,TRIM1#

main58540-2J010-B1iYR21199309-200007

W(REAR HEATER),GRAY,TRIM1#

main58540-2J020-B1iYR21199309-200007

GRAY,TRIM1#

main58540-2J030-B0iYR22199309-199311

W(REAR HEATER),GRAY,TRIM1#

main58540-2J031-B1iYR22199311-199403

W(REAR HEATER),GRAY,TRIM1#

main58540-2J050-B0iYR22199309-199311

GRAY,TRIM1#

main58540-2J051-B1iYR22199311-199403

GRAY,TRIM1#

main58540-2J470-B0iYR22199403-199610

GRAY,TRIM1#

main58540-2J471-B0iYR22199404-199410

GRAY,TRIM1#

58541PMAT, STEP, RH

main58541-28050-B0iYR39..5D;CR27,KR2#..LHD..4D199201-199309

GRAY,TRIM1#

sub58541-28060

main58541-28060-B0iYR39..5D;CR27,KR2#..LHD..4D199309-199610

GRAY,TRIM1#

58542PMAT, STEP, LH

main58542-28010-B0iCR27,KR27,YR39..RHD..(05S,06S)199201-199309

GRAY,TRIM1#

sub58542-28020

main58542-28020-B0iCR27,KR27,YR39..RHD..(05S,06S)199309-199610

GRAY,TRIM1#

58545BSILENCER, HEADER PANEL

main58545-87001iCR27,KR2#,YR2#,39..02S,05S,08S199201-200007

main58545-87002iKR27..RHD199201-199610

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-28020-B1iYR2#..DX199201-199309

GRAY,TRIM1#

main58574-28030iCR27,KR2#,YR22,39..STD199201-200007

58577DPLATE, REAR FLOOR MAT SUPPORT SIDE, RH

main58577-87001iYR39..5D;CR27,KR2#..LHD..4D199201-199610

58578APLATE, REAR FLOOR MAT SUPPORT SIDE, LH

main58578-87001iCR27,KR27,YR39..RHD..(05S,06S)199201-199610

67895ASEAL, CENTER DOOR DUST

main67895-87001iYR22199201-199610

67913PLATE, FRONT DOOR SCUFF, RH

main67913-28010-B0iCR27,KR2#,YR2#,39199201-200007

GRAY,TRIM1#

sub67913-28010

67914PLATE, FRONT DOOR SCUFF, LH

main67914-28010-B0iCR27,KR2#,YR2#,39199201-200007

GRAY,TRIM1#

sub67914-28010

67917APLATE, REAR DOOR SCUFF, RH

main67910-28010-B0iYR21199201-200007

GRAY,TRIM1#

sub67910-28010

main67917-87001iYR39..5D;CR27,KR2#..LHD..4D199201-199610

67918APLATE, REAR DOOR SCUFF, LH

main67918-28010-B0iYR22199408-199610

GRAY,TRIM1#

sub67918-28010

main67918-87001iCR27,KR27,YR39..RHD..(05S,06S)199201-199610

main67918-87004-B0iYR22199210-199408

GRAY,TRIM1#

sub67918-87004

main67920-87001-B0iYR22199201-199210

GRAY,TRIM1#

sub67920-87001

67933APLATE, FRONT DOOR SCUFF, REAR RH

main67933-28010-B0iCR27,KR2#,YR2#,39199201-199408

GRAY,TRIM1#

sub67933-28011

main67933-28011-B0iCR27,KR2#,YR2#,39199408-200007

GRAY,TRIM1#

sub67933-28011

67934APLATE, FRONT DOOR SCUFF, REAR LH

main67934-28010-B0iCR27,KR2#,YR2#,39199201-199408

GRAY,TRIM1#

sub67934-28011

main67934-28011-B0iCR27,KR2#,YR2#,39199408-200007

GRAY,TRIM1#

sub67934-28011

71938PAD, ENGINE SERVICE HOLE COVER, NO.2

main71938-87003iYR2#199201-200007

6792128020RETAINER, FRONT DOOR SCUFF PLATE

main67921-28020

6792195501RETAINER, FRONT DOOR SCUFF PLATE

main67921-95501

9015940245

main90159-40245

9015940246

main90159-40246

9016440064

main90164-40064

9016850064

main90168-50064

9018904213

main90189-04213

9033330002

main90333-30002

9090189007

main90901-89007

9090530001

main90905-30001

9354025012

main93540-25012

36 parts on this diagram · 2 diagrams in section
