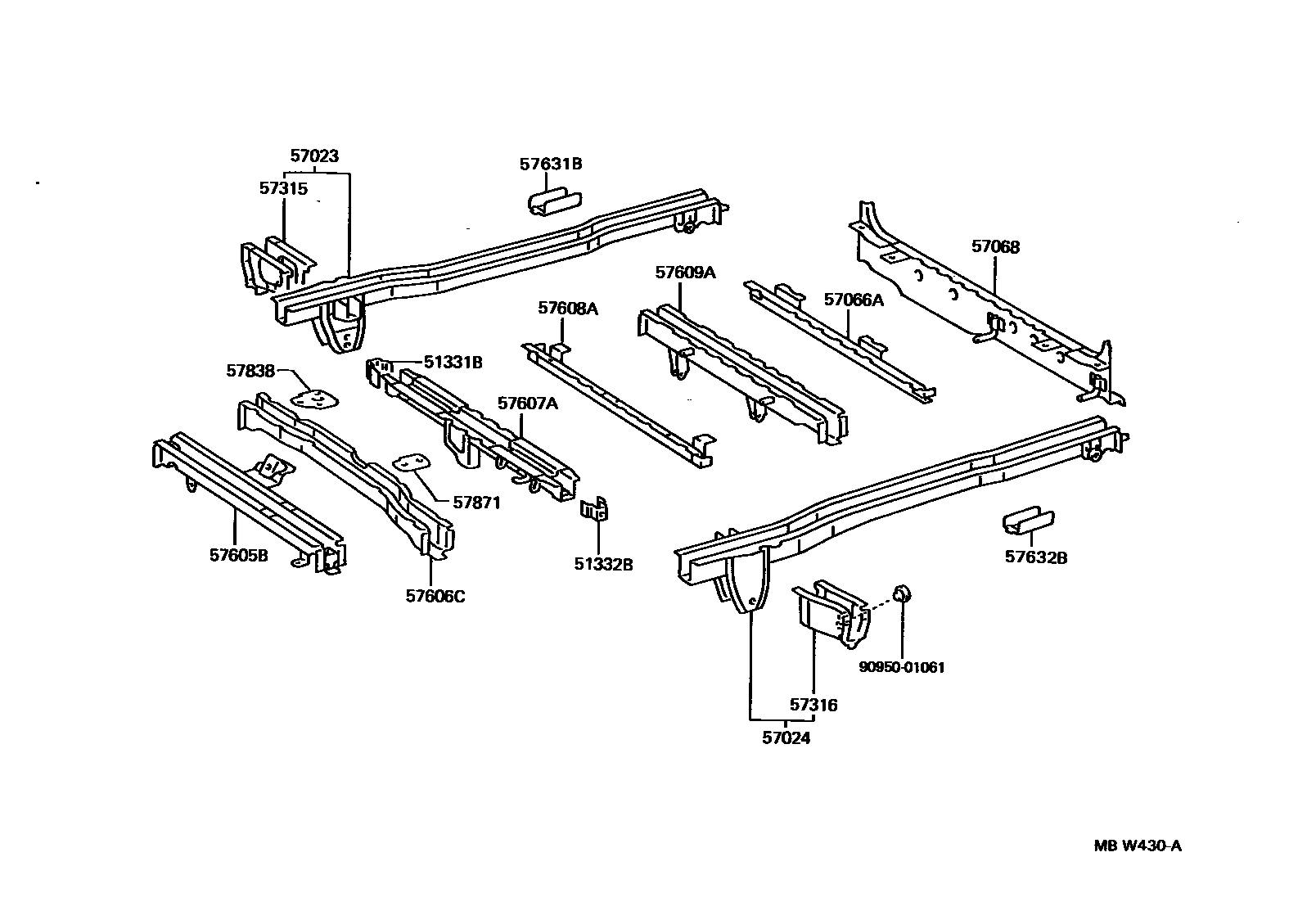

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51331BGUSSET, FRAME NO.3 CROSSMEMBER, RH

main51331-28010iYR39;CR27..02S;CR27..LHD;KR27,YR2#..03S,05S,06S,08S¥1,260199201-200007

main51331-28010iKR2#..02S,08S;CR27..RHD..05S¥1,260199201-199610

ROUGH ROAD PACKAGE

51332BGUSSET, FRAME NO.3 CROSSMEMBER, LH

main51332-28010iKR2#..02S,08S;CR27..RHD..05S¥1,260199201-199610

ROUGH ROAD PACKAGE

main51332-28010iYR39;CR27..02S;CR27..LHD;KR27,YR2#..03S,05S,06S,08S¥1,260199201-200007

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28240iCR27,KR27..RHD..(05S,06S)¥50,300199201-199610

HONG KONG SPEC

main57023-28300iCR27,KR27..RHD..(05S,06S)¥61,500199201-199610

HONG KONG SPEC & ROUGH ROAD PACKAGE

main57023-28300iYR39..4D¥61,500199201-199610

ROUGH ROAD PACKAGE

main57023-28310iYR39..4D¥59,000199201-199610

main57023-28320iYR39..5D¥59,000199201-199610

ROUGH ROAD PACKAGE

main57023-28330iYR39..5D¥59,000199201-199610

main57023-28350iCR27,KR27..RHD..4D¥50,200199201-199610

sub57023-28310¥59,000

main57023-28360iCR27,KR27..RHD..4D¥54,800199201-199610

ROUGH ROAD PACKAGE

sub57023-28300¥61,500

main57023-28370iKR27..5D;CR27,KR2#..LHD..4D¥52,500199201-199610

sub57023-28330¥59,000

main57023-28380iKR27..5D;CR27,KR2#..LHD..4D¥54,800199201-199610

ROUGH ROAD PACKAGE

sub57023-28320¥59,000

main57023-28929iYR22¥50,300199201-199610

main57023-28930iYR21¥50,300199201-200007

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28200iCR27,KR27..RHD..(05S,06S)¥52,500199201-199610

HONG KONG SPEC

main57024-28260iKR28¥56,600199201-199610

main57024-28290iCR27,KR27..RHD..(05S,06S)¥61,500199201-199610

ROUGH ROAD PACKAGE

main57024-28290iYR39¥61,500199201-199610

HONG KONG SPEC & ROUGH ROAD PACKAGE

main57024-28300iYR39¥59,000199201-199610

main57024-28320iKR28¥59,000199201-199610

ROUGH ROAD PACKAGE

main57024-28350iCR27..RHD;KR27..02S,03S,06S¥50,200199201-199610

sub57024-28300¥59,000

main57024-28360iCR27..RHD;KR27..02S,03S,06S¥52,500199201-199610

ROUGH ROAD PACKAGE

sub57024-28290¥61,500

main57024-28370iCR27,KR27..LHD..05S¥50,200199201-199610

sub57024-28270¥59,000

main57024-28380iCR27,KR27..LHD..05S¥54,800199201-199610

ROUGH ROAD PACKAGE

sub57024-28330¥61,500

main57024-28930iYR22¥52,200199201-199610

main57024-28931iYR21¥52,200199201-200007

57066AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6

main57066-28020iCR27,KR2#,YR39¥4,670199201-199610

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-28090iYR2#¥15,100199201-200007

main57068-28100iCR27,KR2#,YR39¥16,700199201-199610

main57068-28160iCR27,KR2#,YR39¥16,400199201-199610

ROUGH ROAD PACKAGE

57315OUTRIGGER, NO.3 RH

main57315-28080iKR27,YR39..5D;CR27,KR2#,YR21..LHD..4D¥3,960199201-200007

main57315-87004iCR27,KR27,YR22,39..RHD..4D¥1,150199201-199610

57316OUTRIGGER, NO.3 LH

main57315-87004iCR27,KR2#,YR21..LHD..4D¥1,150199201-200007

main57316-28040iCR27,YR39..RHD;KR27..02S,03S,06S¥3,950199201-199610

main57316-87006iYR22¥4,410199201-199610

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-28160iYR21¥20,800199201-199610

sub57605-28280¥21,100

main57605-28180iYR22¥23,700199201-199610

sub57605-28320¥20,800

main57605-28220iCR27,KR27,YR39¥18,500199201-199610

sub57605-28280¥21,100

main57605-28250iCR27,KR27,YR39¥20,800199201-199610

ROUGH ROAD PACKAGE

sub57605-28290¥20,800

main57605-28280iYR21¥21,100199201-199610

ROUGH ROAD PACKAGE

main57605-28280iYR21¥21,100199610-200007

main57605-28290iKR28¥20,800199201-199610

ROUGH ROAD PACKAGE

main57605-28310iKR28¥20,800199201-199610

sub57605-28290¥20,800

main57605-28320iYR22¥20,800199201-199610

ROUGH ROAD PACKAGE

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-28010iYR21¥13,300199201-200007

main57606-28230iKR28¥10,500199201-199610

sub57606-28250¥10,600

main57606-28250iCR27,KR2#,YR21,39¥10,600199201-200007

ROUGH ROAD PACKAGE

main57606-28250iCR27,KR27,YR22,39¥10,600199405-199610

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-28090iKR2#,YR39..02S,03S,08S¥10,500199201-199610

W/O(REAR NO.1 SEAT)

sub57607-28180¥10,500

main57607-28110iCR27..RHD..05S¥15,700199201-199610

HONG KONG SPEC

main57607-28120iYR2#¥13,300199201-200007

main57607-28170iYR39..05S¥15,600199201-199610

sub57607-28110¥15,700

main57607-28180iCR27..05S¥10,500199201-199610

W/O(REAR NO.1 SEAT)

main57607-28200iKR27..05S,06S¥10,500199201-199610

sub57607-28230¥13,300

main57607-28220iCR27..05S¥10,500199201-199610

sub57607-28180¥10,500

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-28060iCR27,KR27¥4,930199201-199610

main57608-28110iKR28¥4,930199201-199610

main57608-28120iYR39¥4,930199201-199610

main57608-28901iYR2#¥34,100199201-200007

main57608-28902iYR2#¥36,500199201-200007

ROUGH ROAD PACKAGE

57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-28020iCR27,KR2#,YR39¥20,800199201-199610

sub57609-28070¥20,800

main57609-28040iYR2#¥36,700199405-200007

main57609-28060iCR27,KR2#,YR39¥20,800199201-199206

ROUGH ROAD PACKAGE

sub57609-28070¥20,800

main57609-28070iCR27,KR2#,YR39¥20,800199206-199610

ROUGH ROAD PACKAGE

main57609-87004iYR2#¥36,700199201-199405

sub57609-28040¥36,700

57631BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH

main57631-28020iYR39¥2,820199201-199610

57632BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH

main57632-28020iCR27,KR27..RHD..(05S,06S)¥3,330199201-199610

57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

main57838-28020iKR28¥1,730199201-199610

main57838-95D00iYR21¥2,110199201-200007

57871PATCH, REAR NO.1 SEAT LEG, REAR NO.1

main57089-87001iYR22¥1,610199201-199610

main57871-28030iKR27..06S¥930199201-199610

9095001061

main90950-01061¥240

18 parts on this diagram · 4 diagrams in section
