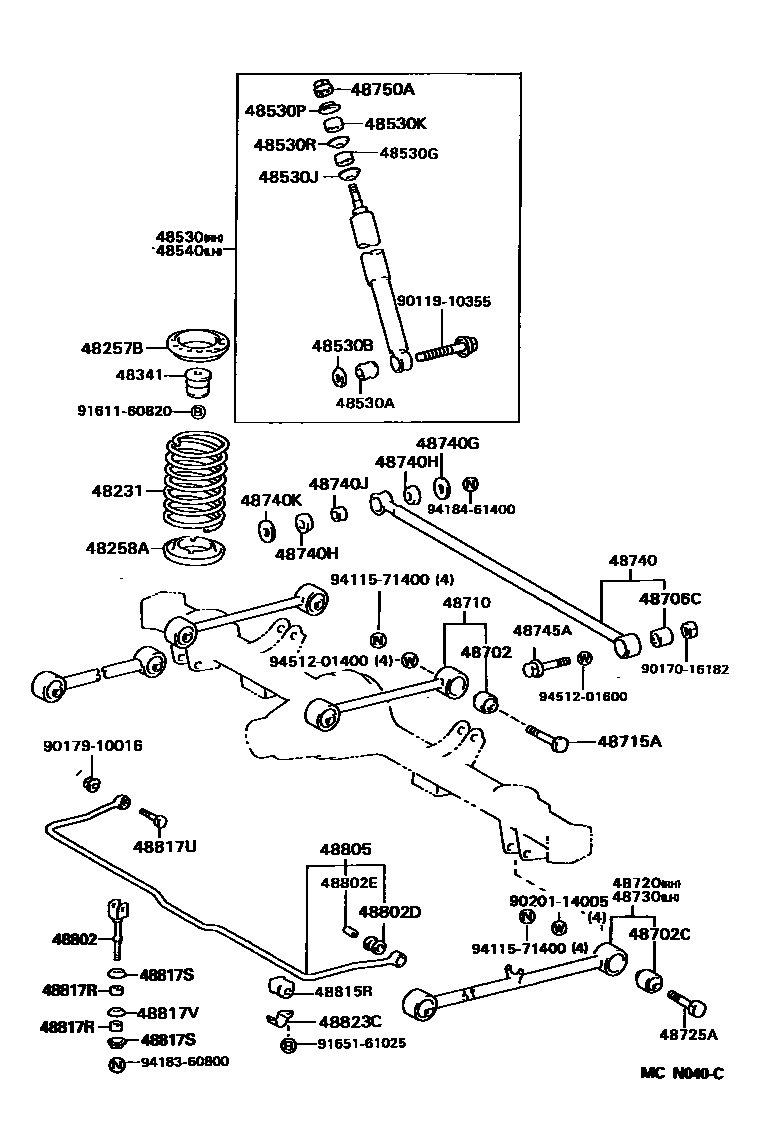

REAR SPRING & SHOCK ABSORBER
48257BINSULATOR, REAR COIL SPRING, UPPER
48258AINSULATOR, REAR COIL SPRING, LOWER
48341BUMPER, REAR SPRING
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48530RRETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER)
48706CBUSH SUB-ASSY, LATERAL CONTROL ROD
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
48725ABOLT(FOR LOWER CONTROL ARM)
48740GWASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD)
48740HBUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
48740JBUSH, NO.2(FOR REAR LATERAL CONTROL ROD)
48740KWASHER, PLATE, NO.2(FOR REAR LATERAL CONTROL ROD)
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817UBOLT(FOR REAR STABILIZER)
sub91512-61045
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48823CCOVER, REAR STABILIZER BRACKET
9011910355
main90119-10355
9017016182
main90170-16182
9017910016
main90179-10016
9020114005
main90201-14005
9161160820
main91611-60820
9165161025
main91651-61025
9411571400
main94115-71400
9418360800
main94183-60800
9418461400
main94184-61400
9451201400
main94512-01400
9451201600
main94512-01600
49 parts on this diagram · 3 diagrams in section
