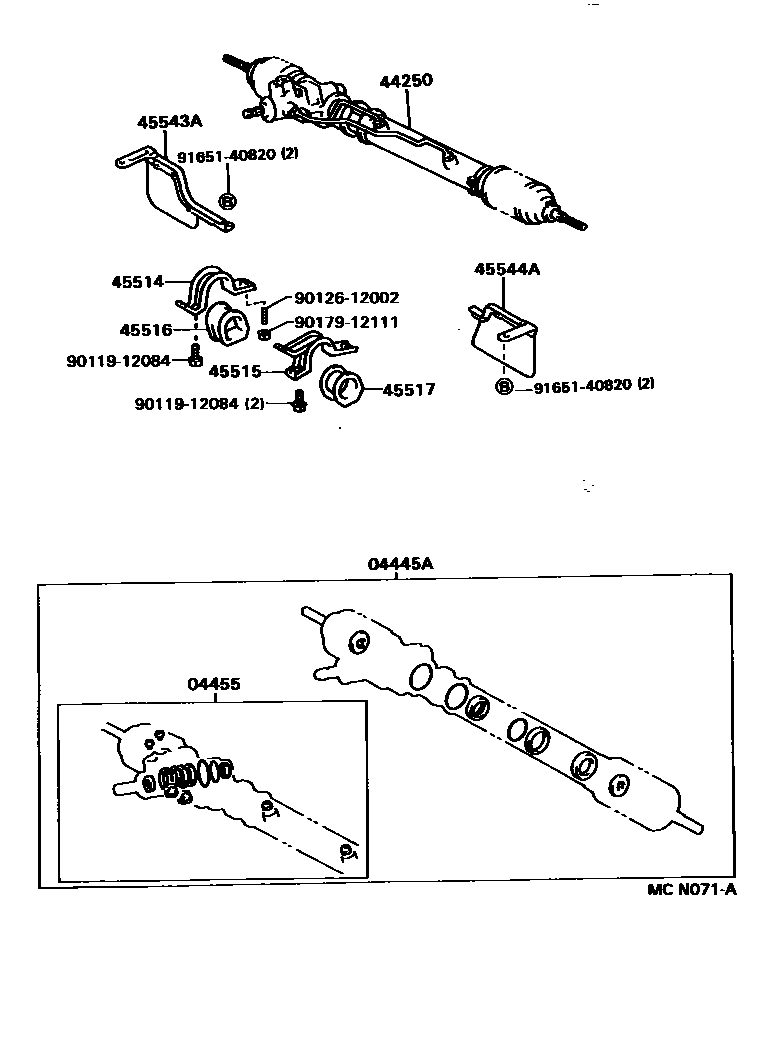

FRONT STEERING GEAR & LINK

0001 1POWER STEERING 0002 1POWER STEERING 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-28041iYR39;CR27..RHD..05S;KR27,YR2#..06S,08S199201-200007

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-28020iYR39;CR27..RHD..05S;KR27,YR2#..06S,08S199201-200007

sub04455-20120

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28200iYR22199201-199610

main44250-28210iCR27..RHD..05S;KR27,YR39..RHD..(02S,05S,06S)199201-199610

main44250-28220iYR21199201-199609

sub44250-28221

main44250-28221iYR21199609-200007

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-28020iCR27,KR2#,YR2#,39199201-200007

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-28020iYR22..STD;CR27,KR2#,YR21,39199201-200007

main45515-28030iYR22,39..STD;CR27..RHD..05S;KR27,YR21..06S,08S199201-200007

W(POWER STEERING)

main45515-28030iYR22..DX199201-199309

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-27010iCR27,KR2#,YR2#,39199201-200007

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-27010iYR22..STD;CR27,KR2#,YR21,39199201-200007

main45517-27020iYR22..DX199201-199309

main45517-27020iYR22,39..STD;CR27..RHD..05S;KR27,YR21..06S,08S199201-200007

W(POWER STEERING)

45543APROTECTOR, STEERING RACK BOOT, RH

main45543-28030iCR27,KR27,YR22,39..RHD199201-199610

main45543-28040iCR27,KR2#,YR21..LHD199201-200007

45544APROTECTOR, STEERING RACK BOOT, LH

main45544-28050iCR27,KR27,YR22,39..RHD199201-199610

main45544-28060iCR27,KR2#,YR21..LHD199201-200007

9011912084

main90119-12084

9012612002

main90126-12002

9017912111

main90179-12111

9165140820

main91651-40820

13 parts on this diagram · 4 diagrams in section
