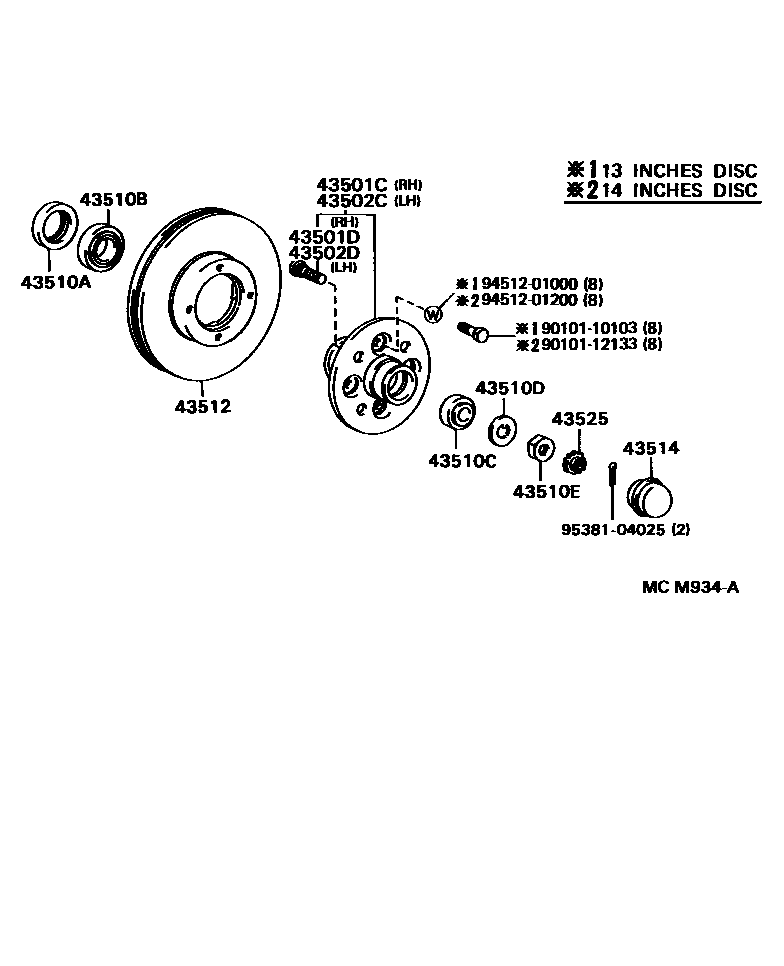

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-20010iCR27,KR2#199201-199610

main43502-28030iYR2#,39199201-200007

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02048×8iCR27,KR2#,YR2#,39199201-200007

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-20010iCR27,KR2#199201-199610

main43502-28030iYR2#,39199201-200007

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02048×8iCR27,KR2#,YR2#,39199201-200007

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001×2iCR27,KR2#,YR2#,39199201-200007

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31067×2iCR27,KR2#,YR2#,39199201-200007

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037×2iCR27,KR2#,YR2#,39199201-200007

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2iCR27,KR2#,YR2#,39199201-200007

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iCR27,KR2#,YR2#,39199201-200007

43512DISC, FRONT

main43512-28130×2iYR2#,39199201-200007

main43512-28150×2iCR27,KR2#199201-199610

43514CAP, FRONT HUB GREASE

main43514-22020×2iCR27,KR2#,YR2#,39199309-200007

main43514-27010×2iCR27,KR2#,YR2#,39199201-199309

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iCR27,KR2#,YR2#,39199201-200007

9010110103

main90101-10103

9010112133

main90101-12133

9451201000

main94512-01000

9451201200

main94512-01200

9538104025

main95381-04025

17 parts on this diagram · 1 diagram in section
