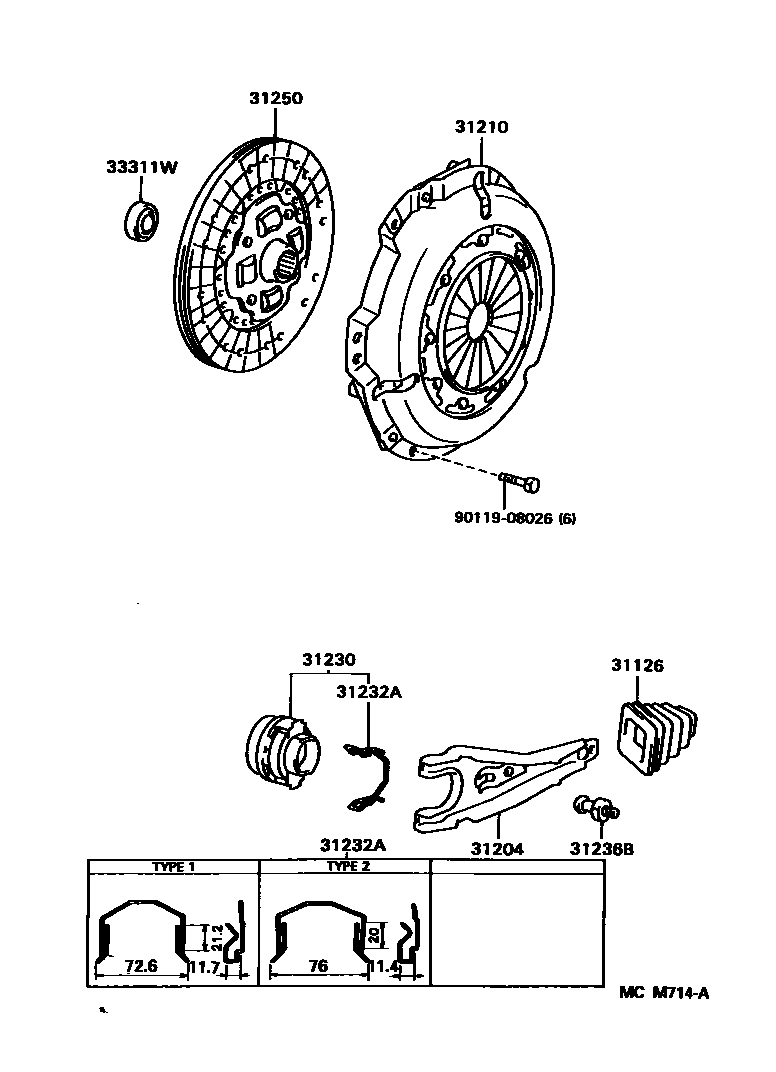

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCR27,YR2#,39..MTM199201-200007

main31126-20070iKR2#199201-199610

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCR27,YR2#,39..MTM199201-200007

main31204-22040iKR2#199201-199610

31210COVER ASSY, CLUTCH

main31210-12180iKR2#199201-199610

sub31210-12181

main31210-22120iCR27,YR21,39..MTM199201-200007

sub31210-22121

main31210-35100iYR22..MTM199201-199610

sub31210-35101

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iCR27,KR2#,YR2#,39..MTM199201-200007

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iCR27,KR2#,YR2#,39..MTM199201-200007

TYPE 1

main31232-35040iCR27,KR2#,YR2#,39..MTM199201-200007

TYPE 2

31236BSUPPORT, RELEASE FORK

main31236-30060iCR27,KR2#,YR2#,39..MTM199201-200007

31250DISC ASSY, CLUTCH

main31250-20117iCR27199211-199610

sub31250-20118

main31250-20240iYR21,39..MTM199505-199702

sub31250-20241

main31250-20241iYR21199702-200007

sub31250-20242

main31250-25122iYR21,39..MTM199201-199505

sub31250-20240

main31250-27061iKR2#199201-199509

sub31250-28140

main31250-27081iCR27199201-199205

sub31250-27082

main31250-27082iCR27199205-199211

sub31250-20117

main31250-28031iYR22..MTM199201-199603

sub31250-28130

main31250-28130iYR22..MTM199603-199610

sub31250-28131

main31250-28140iKR2#199509-199610

sub31250-28141

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYR2#,39..MTM199201-200007

sub90363-12024

main90363-12003iKR2#199201-199610

main90363-12004iCR27199201-199610

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
