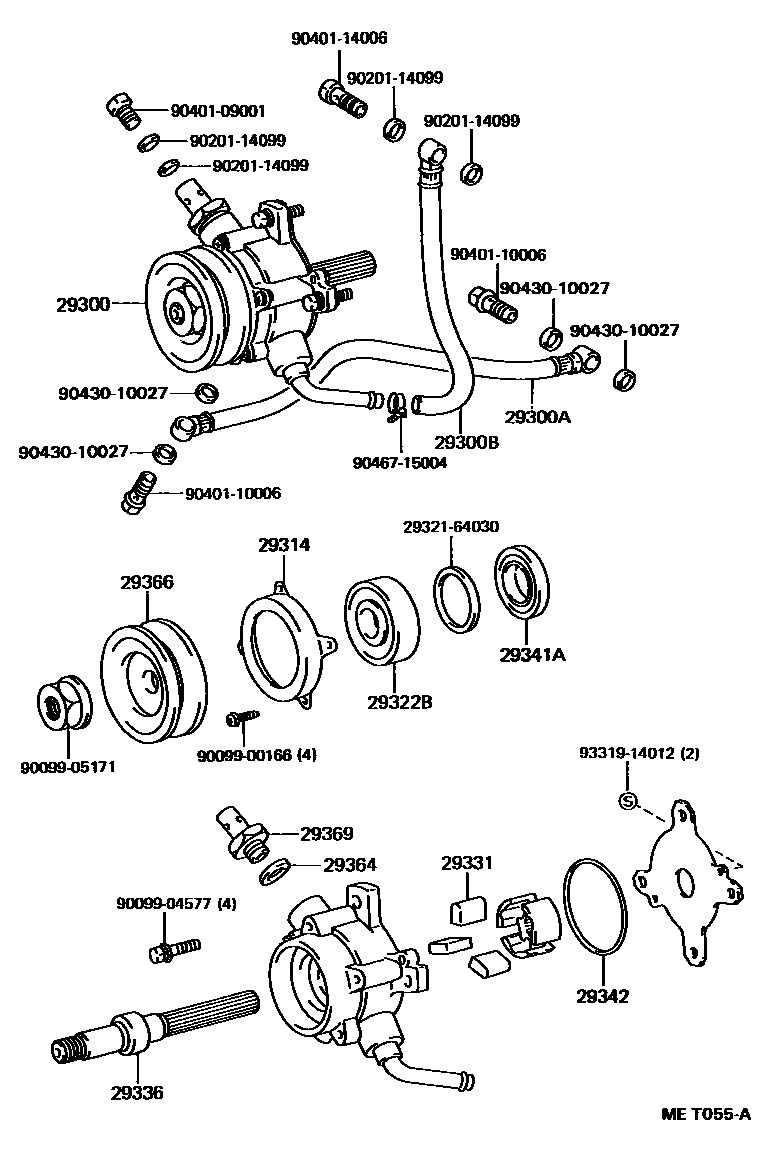

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-64060i2C..CR27199201-199309

main29300-64110i2C..CR27199309-199610

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02099i2C..CR27199201-199309

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-64010i2C..CR27199201-199309

29314RING, STOP

main29314-64030i2C..CR27199201-199309

29322BBEARING, VACUUM PUMP

main90099-10166i2C..CR27199201-199309

29331BLADE, VACUUM PUMP, A

main29331-64030i2C..CR27199201-199309

29336SHAFT, VACUUM PUMP

main29336-64031i2C..CR27199201-199309

29341ASEAL, OIL

main29341-64030i2C..CR27199201-199309

29342PACKING, VACUUM PUMP

main29342-64030i2C..CR27199201-199309

29364WASHER, VACUUM PUMP

main29364-66010i2C..CR27199201-199309

29366PULLEY, VACUUM PUMP

main29366-64060i2C..CR27199201-199309

29369VALVE SUB-ASSY, CHECK

main29369-64030i2C..CR27199201-199309

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114006

main90401-14006

9043010027

main90430-10027

9046715004

main90467-15004

9331914012

main93319-14012

23 parts on this diagram · 2 diagrams in section
