DISTRIBUTOR

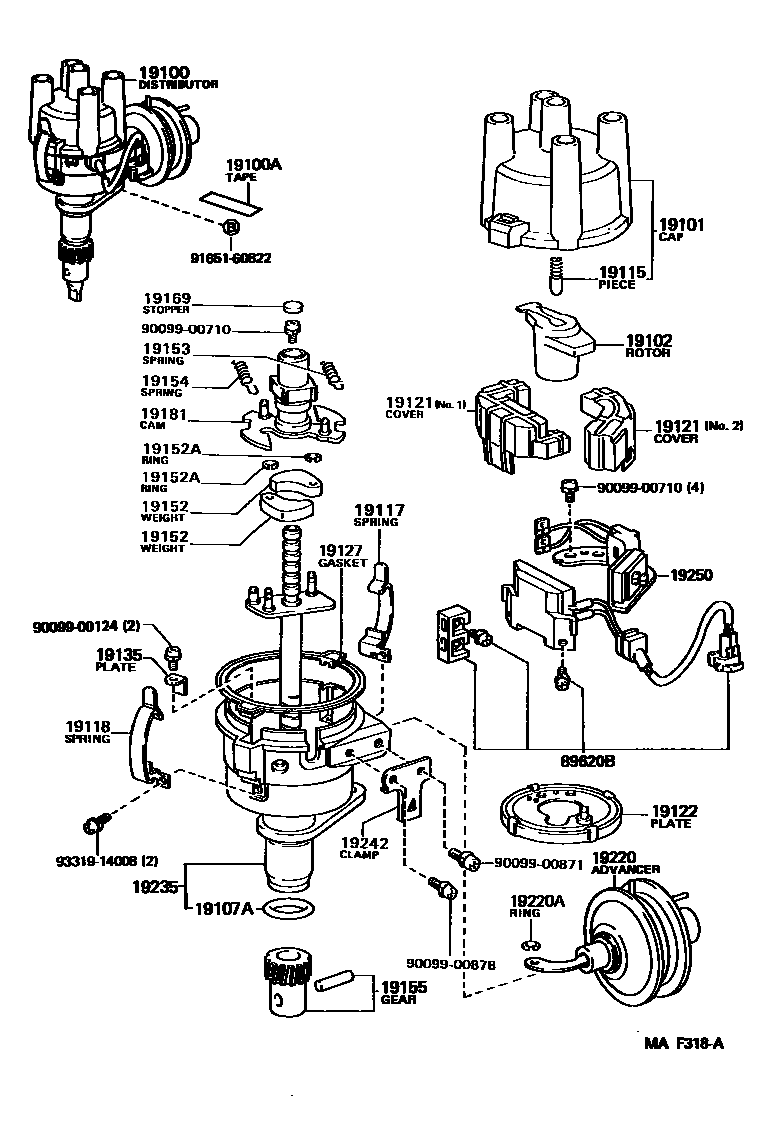

Parts diagram
19100DISTRIBUTOR ASSY
main19030-71060i199201-200007
main19030-72040i199201-199610
main19040-73060i199201-199610
main19060-13150i199201-199508
HONG KONG SPEC
main19060-13160i199311-199408
SINGAPORE SPEC
main19060-13170i199201-199610
main19060-13200i199508-199610
HONG KONG SPEC
19100ATAPE, SEALING
main90919-24004i199201-199312
HONG KONG SPEC
sub90919-24003
19101CAP SUB-ASSY, DISTRIBUTOR
main19101-13010i199201-199610
main19101-71010i199201-200007
19102ROTOR SUB-ASSY, DISTRIBUTOR
main19102-16040i199201-200007
main19102-16060i199201-199610
sub19102-73180
main19102-26151i199201-199610
main19102-33012i199201-199610
HONG KONG SPEC
19107ARING, O, DISTRIBUTOR HOUSING
main90099-14090i199201-200007
19115PIECE, DISTRIBUTOR CAP, CENTER
main19115-63010×2i199201-200007
main19115-88280i199201-199610
19117SPRING, DISTRIBUTOR CAP, A
main19117-24080i199201-199610
19118SPRING, DISTRIBUTOR CAP, B
main19117-24080i199201-199610
19121COVER, DUST PROOF
main19121-63010i199201-200007
NO.1
main19121-63040i199201-200007
NO.2
main19121-88260i199201-199610
NO.2
main19121-88261i199201-199610
NO.1
19122PLATE, STATIONARY, DISTRIBUTOR
main19122-88263i199201-199610
19127PACKING, DUST PROOF
main19127-15010i199201-199610
main19127-63010i199201-200007
NO.1
main19127-63020i199201-200007
NO.2
19135PLATE, HOLDER
main19135-24080×2i199201-199610
19152WEIGHT, GOVERNOR
main19152-63010×2i199201-200007
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
main90099-07122×2i199201-200007
19153SPRING, GOVERNOR, A
main19153-13080i199201-199610
HONG KONG SPEC
main19153-13110i199311-199610
SINGAPORE OR THAILAND SPEC
main19153-13120i199201-199610
main19153-71060i199201-200007
main19153-72050i199201-199610
19154SPRING, GOVERNOR, B
main19153-71060i199201-200007
main19153-72050i199201-199610
main19154-13080i199201-199610
HONG KONG SPEC
main19154-13110i199311-199408
SINGAPORE SPEC
main19154-13120i199201-199610
19155GEAR, SPIRAL, DISTRIBUTOR
main19195-13060i199201-199408
SINGAPORE OR HONG KONG SPEC
main19195-24081i199201-199610
main19195-71010i199201-199603
main19195-72090i199603-200007
19169STOPPER, CAM GREASE
main19169-63011i199201-200007
19181ROTOR, DISTRIBUTOR, SIGNAL
main19181-13010i199201-199610
HONG KONG SPEC
main19181-13110i199408-199610
SINGAPORE SPEC
main19181-13120i199201-199610
main19181-72011i199201-200007
main19181-72040i199201-199610
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
main19220-13050i199311-199408
SINGAPORE SPEC
main19220-13180i199201-199508
HONG KONG SPEC
main19220-13260i199201-199610
main19220-13470i199508-199610
HONG KONG SPEC
main19220-71060i199201-200007
main19220-72040i199201-199610
19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
main90099-07109i199201-199610
19235HOUSING, DISTRIBUTOR
main19235-13030i199201-199610
main19235-71010i199201-200007
main19235-73090i199201-199610
19242CLAMP, CORD
main19242-13080i199201-199610
main19242-71010i199309-200007
main19242-71060i199201-199610
NO.2
main19242-71061i199201-199309
NO.2
main19242-72030i199201-199610
main19242-73030i199201-199610
NO.1
19250GENERATOR ASSY, SIGNAL
main19250-13030i199201-199610
main19250-73030i199201-199610
main19251-63011i199201-200007
89620BIGNITER ASSY
main89620-27031i199201-199610
main89620-32020i199201-200007
9009900124
main90099-00124
9009900710
main90099-00710
9009900871
main90099-00871
9009900878
main90099-00878
9165160822
main91651-60822
9331914008
main93319-14008

31 parts on this diagram · 3 diagrams in section
