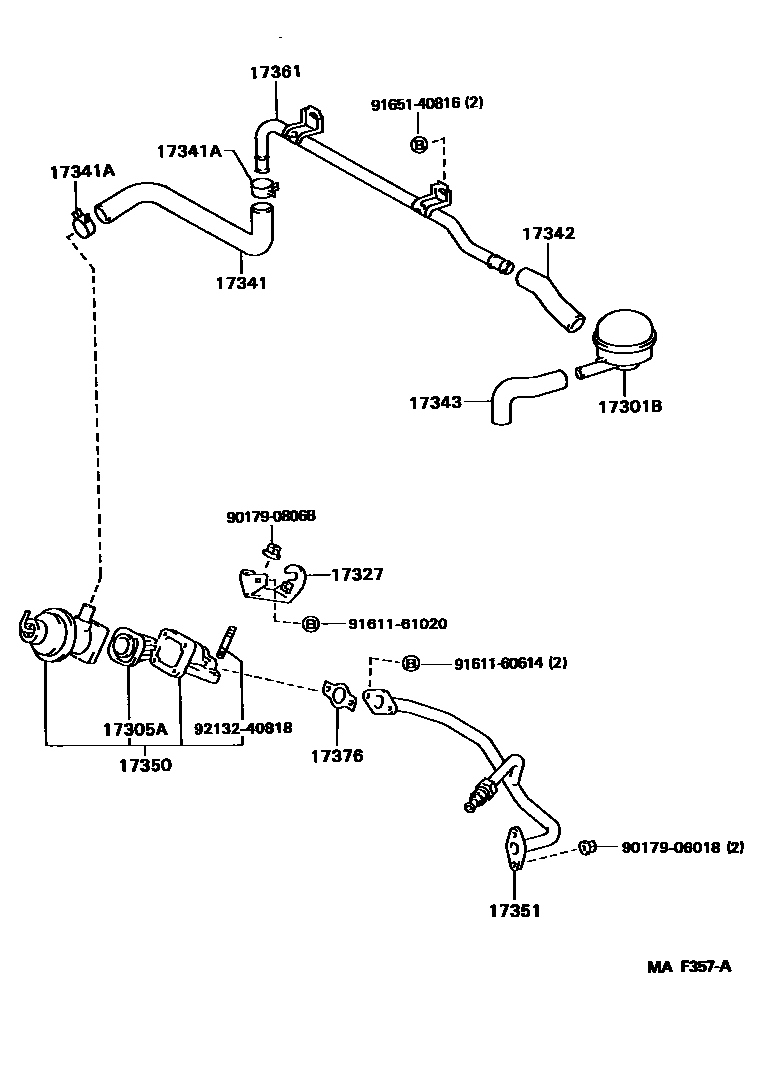

MANIFOLD AIR INJECTION SYSTEM
17301BSILENCER SUB-ASSY, AIR SUCTION
HONG KONG SPEC
17305AVALVE SUB-ASSY, REED
HONG KONG SPEC
NIPPONDENSO
NOK
17327BRACKET, REED VALVE
HONG KONG SPEC
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
HONG KONG SPEC
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
HONG KONG SPEC
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
HONG KONG SPEC
17350VALVE ASSY, REED
HONG KONG SPEC
17351MANIFOLD, AIR INJECTION
HONG KONG SPEC
17361TUBE, AIR
HONG KONG SPEC
17376GASKET, AIR TUBE, NO.1
9017906018
main90179-06018
9017908068
main90179-08068
9161160614
main91611-60614
9161161020
main91611-61020
9165140816
main91651-40816
9213240818
main92132-40818
17 parts on this diagram · 2 diagrams in section
