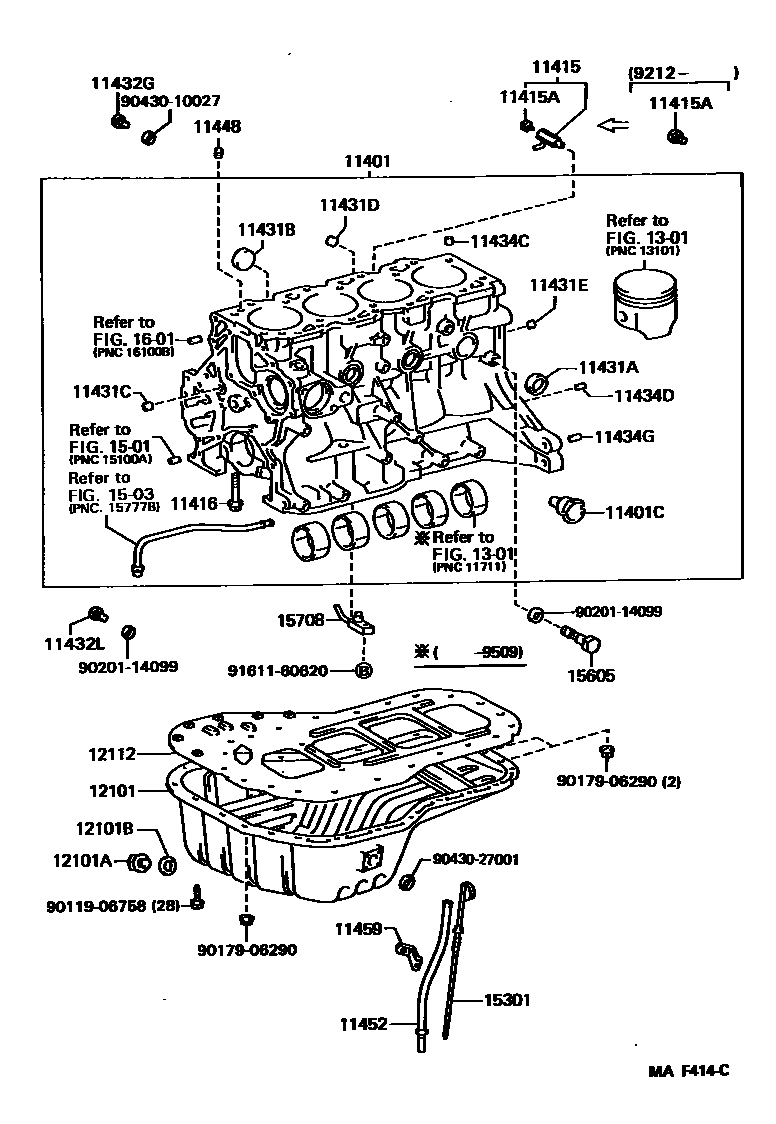

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19335i5K..KR27..5D..03S199311-199504

SINGAPORE OR THAILAND SPEC

sub11401-19336

sub11011-11010

sub90910-09091

main11401-19335i5K..KR27..06S199201-199504

HONG KONG SPEC

sub11401-19336

sub11011-11010

sub90910-09091

main11401-19335i5K..KR27..03S199201-199504

SINGAPORE SPEC

sub11401-19336

sub11011-11010

sub90910-09091

main11401-19336i5K..KR27..4D..03S199504-199610

SINGAPORE OR THAILAND SPEC

main11401-19336i5K..KR27..5D..03S199504-199610

SINGAPORE SPEC

main11401-19336i5K..KR27..5D..03S199504-199610

HONG KONG SPEC

main11401-19345i5K..KR2#199201-199504

sub11401-19346

sub11011-11010

sub90910-09091

main11401-19346i5K..KR2#199504-199610

main11401-69465i2C..CR27199201-199209

sub11401-69467

sub11115-64122

main11401-69466i2C..CR27199209-199504

sub11401-69468

sub11115-64122

main11401-69625i2C..CR27199504-199509

sub11401-69626

sub11701-64071

main11401-69626i2C..CR27199509-199610

sub11401-69627

sub11115-64170

main11401-79088i3Y#..YR21,39199201-199308

sub11401-79735

main11401-79206i4YEC..YR22199201-199610

main11401-79735i3Y#..YR21,39199308-199512

sub11401-79736

main11401-79736i3Y#..YR21,39199512-200007

11401CFLANGE(FOR WATER BY-PASS)

main16353-64010i2C..CR27199201-199204

sub16353-64011

main16353-64011i2C..CR27199204-199610

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i2C..CR27199201-199212

sub90345-52003

main90910-09091i5K..KR2#199504-199610

main96431-53828i3Y#,4YEC..YR2#,39199201-200007

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52003i2C..CR27199212-199610

main90910-09087i5K..KR2#199201-199610

main96432-23814i5K..KR2#199201-200007

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019i5K..KR2#199201-199610

main90910-02032i3Y#,4YEC..YR2#,39199201-200007

main90910-02061i2C..CR27199201-199610

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025i5K..KR2#199201-199610

main96411-01800i3Y#,4YEC..YR2#,39199201-200007

main96411-43500i2C..CR27199201-199610

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i2C..CR27199201-199610

main96411-43500i4YEC..YR22199201-200007

main96411-44500i5K..KR2#199201-199610

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i2C..CR27199201-199610

main96411-43500i5K..KR2#199201-199610

main96411-45000i3Y#,4YEC..YR2#,39199201-200007

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i2C..CR27199201-199610

main96411-45000i3Y#,4YEC..YR2#,39199201-200007

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800i2C..CR27199201-199610

main96412-01800i5K..KR2#199201-199610

11432GPLUG, W/HEAD STRAIGHT SCREW, NO.5

main90341-10002i2C..CR27199309-199610

11432LPLUG, W/HEAD STRAIGHT SCREW, NO.4(FOR CYLINDER BLOCK)

main90341-14032i2C..CR27199309-199610

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i5K..KR2#199201-199610

L=18,OD=8

main90253-14001i2C..CR27199201-199208

L=9,OD=14

main90253-14002i2C..CR27199208-199610

L=16,OD=14

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i2C..CR27199201-199610

L=11,OD=6

main90250-08120i5K..KR2#199201-199610

L=18,OD=8

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i2C..CR27199201-199610

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2C..CR27199201-199209

main11448-64020i2C..CR27199209-199610

11452GUIDE, OIL LEVEL GAGE

main11452-13030i5K..KR2#199201-199610

main11452-64020i2C..CR27199201-199408

main11452-64021i2C..CR27199408-199610

main11452-71020i3Y#,4YEC..YR2#,39199201-200007

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-71011i3Y#,4YEC..YR2#,39199201-200007

main90929-01026i2C..CR27199201-199610

12101PAN SUB-ASSY, OIL

main12101-13030i5K..KR2#199201-199610

main12101-13070i5K..KR27..06S199201-199610

HONG KONG SPEC

main12101-64080i2C..CR27199201-199309

sub12101-64081

main12101-64081i2C..CR27199309-199408

sub12101-64082

main12101-64082i2C..CR27199408-199610

main12101-71031i3Y#,4YEC..YR2#,39199201-200007

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i5K..KR2#199201-200007

main90341-12026i2C..CR27199208-199610

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12027i5K..KR2#199201-199312

sub90430-12031

main90430-12031i5K..KR2#199304-200007

12112PAN, OIL NO.2

main12112-64050i2C..CR27199201-199306

sub12112-64051

main12112-64051i2C..CR27199306-199610

1301

1501

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-13040i5K..KR2#199201-199610

main15301-64051i2C..CR27199201-199408

main15301-64052i2C..CR27199408-199610

main15301-71020i3Y#,4YEC..YR2#,39199201-200007

15605VALVE SUB-ASSY, OIL CHECK

main15605-64020i2C..CR27199201-199610

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64021i2C..CR27199201-199610

sub15790-64030

sub90110-06034

1601

9011906758

main90119-06758

9017906290

main90179-06290

9020114099

main90201-14099

9043010027

main90430-10027

9043027001

main90430-27001

9161160620

main91611-60620

35 parts on this diagram · 3 diagrams in section
