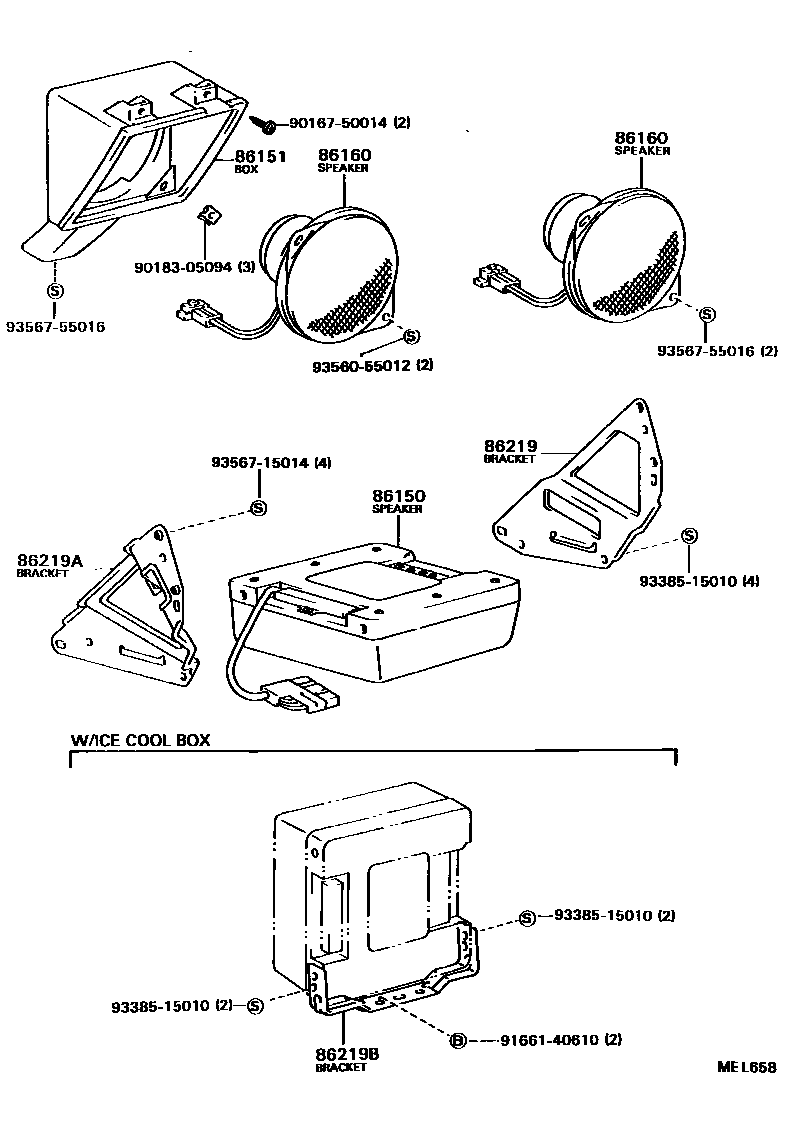

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-87011iYR21..GEN198808-199001

86151BOX, SPEAKER

main86151-87001iYR21..GEN198808-199001

86160SPEAKER ASSY, FRONT NO.1

main86160-10140iYR2#,31..ARL198808-199001

main86160-87011iYR21..GEN198808-199001

BOX SPEAKER

86219BRACKET, STEREO COMPONENT SPEAKER, NO.1

main86211-87004iYR2#..DLX198808-199001

WOOFER SPEAKER

main86211-87004iYR2#..DLX198808-199001

W(AM/FM MPX RADIO),WOOFER SPEAKER

main86219-28010iYR21..GEN198808-199001

main86219-87014iYR2#,31..GL..ARL198808-199001

86219ABRACKET, STEREO COMPONENT SPEAKER, NO.2

main86212-87003iYR2#..DLX198808-199001

WOOFER SPEAKER

main86219-28020iYR21..GEN198808-199001

86219BBRACKET, STEREO COMPONENT SPEAKER, NO.3

main86219-87001iYR21..GEN198808-199001

9016750014

main90167-50014

9018305094

main90183-05094

9166140610

main91661-40610

9338515010

main93385-15010

9356055012

main93560-55012

9356715014

main93567-15014

9356755016

main93567-55016

13 parts on this diagram · 2 diagrams in section
