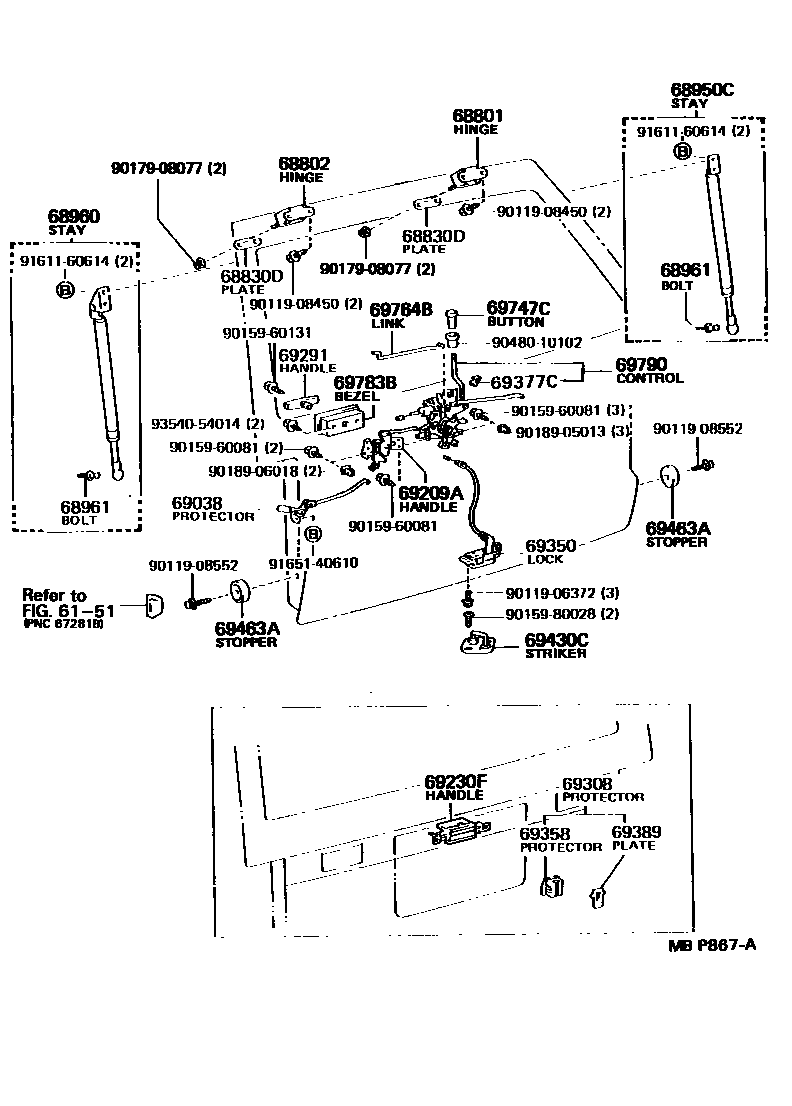

BACK DOOR LOCK & HINGE

6151

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-87005iYR2#..DLX;YR21..GEN198808-199001

main68801-87006iYR2#,31..GL..ARL198808-199001

W(REAR WINDOW WIPER)

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-87005iYR2#,31198808-199001

68830DPLATE, BACK DOOR HINGE

main68715-87001iYR2#,31..MRF198808-199001

68950CSTAY ASSY, BACK DOOR, RH

main68950-29365iYR22..HRF198808-199001

main68950-29535iYR2#..DLX;YR21..GEN198808-199001

main68950-29545iYR2#,31..MRF..GL..ARL198808-199001

W(REAR WINDOW WIPER)

68960STAY ASSY, BACK DOOR, LH

main68960-29205iYR2#..DLX;YR21..GEN198808-199001

main68960-29215iYR2#,31..MRF..GL..ARL198808-199001

W(REAR WINDOW WIPER)

main68960-29225iYR22..HRF198808-199001

68961BOLT, BACK DOOR STAY

main68961-28010iYR2#,31198808-199001

69038PROTECTOR SUB-ASSY, BACK DOOR CHILD

main69038-28010iYR2#,31..ARL198808-199001

69209AHANDLE SUB-ASSY, BACK DOOR, INSIDE

main69209-28010iYR2#,31..ARL198808-199001

main69209-87001iYR21..GEN198808-199001

69230FHANDLE ASSY, REAR DOOR OUTSIDE

main69230-87002iYR21..GEN198808-198903

sub69230-87007

main69230-87005iYR2#,31..ARL198808-198901

sub69230-87008

main69230-87007iYR21..GEN198903-199001

main69230-87008iYR2#,31..ARL198901-199001

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

sub69291-95J00

main69291-95J00-56iYR2#,31..GL198808-199001

LIGHT BROWN,TRIM4#

sub69291-95J00

69308PROTECTOR SUB-ASSY, BACK DOOR LOCK

main69308-87001iYR2#,31198808-199001

69350LOCK ASSY, BACK DOOR

main69350-87006iYR2#,31198808-199001

69358PROTECTOR, BACK DOOR LOCK

main69358-87001iYR2#,31198808-199001

69377CSNAP, DOOR LOCK CONTROL ROD

main69377-13020iYR2#,31198808-199001

69389PLATE, BACK DOOR LOCK

main69389-87001iYR2#,31198808-199001

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28010iYR2#,31198808-199001

sub69430-95702

69463ASTOPPER, BACK DOOR MALE, LOWER

main69463-87002iYR2#,31198808-199001

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-87701iYR2#,31198808-199001

sub69743-87001

69764BLINK, BACK DOOR LOCK CONTROL, RH

main69764-87006iYR2#,31..GL198808-199001

69783BBEZEL, BACK DOOR INSIDE HANDLE

main69783-95J00-03iYR2#,31..MRF198808-199001

GRAY,TRIM1#

sub69783-95J00

main69783-95J00-46iYR2#,31..GL198808-199001

LIGHT BROWN,TRIM4#

sub69783-95J00

69790CONTROL ASSY, BACK DOOR LOCK

main69790-87007iYR2#..DLX198808-199001

main69790-87008iYR2#,31..GL198808-199001

9011906372

main90119-06372

9011908450

main90119-08450

9011908552

main90119-08552

9015960081

main90159-60081

9015960131

main90159-60131

9015980028

main90159-80028

9017908077

main90179-08077

9018905013

main90189-05013

9018906018

main90189-06018

9048010102

main90480-10102

9161160614

main91611-60614

9165140610

main91651-40610

9354054014

main93540-54014

35 parts on this diagram · 1 diagram in section
