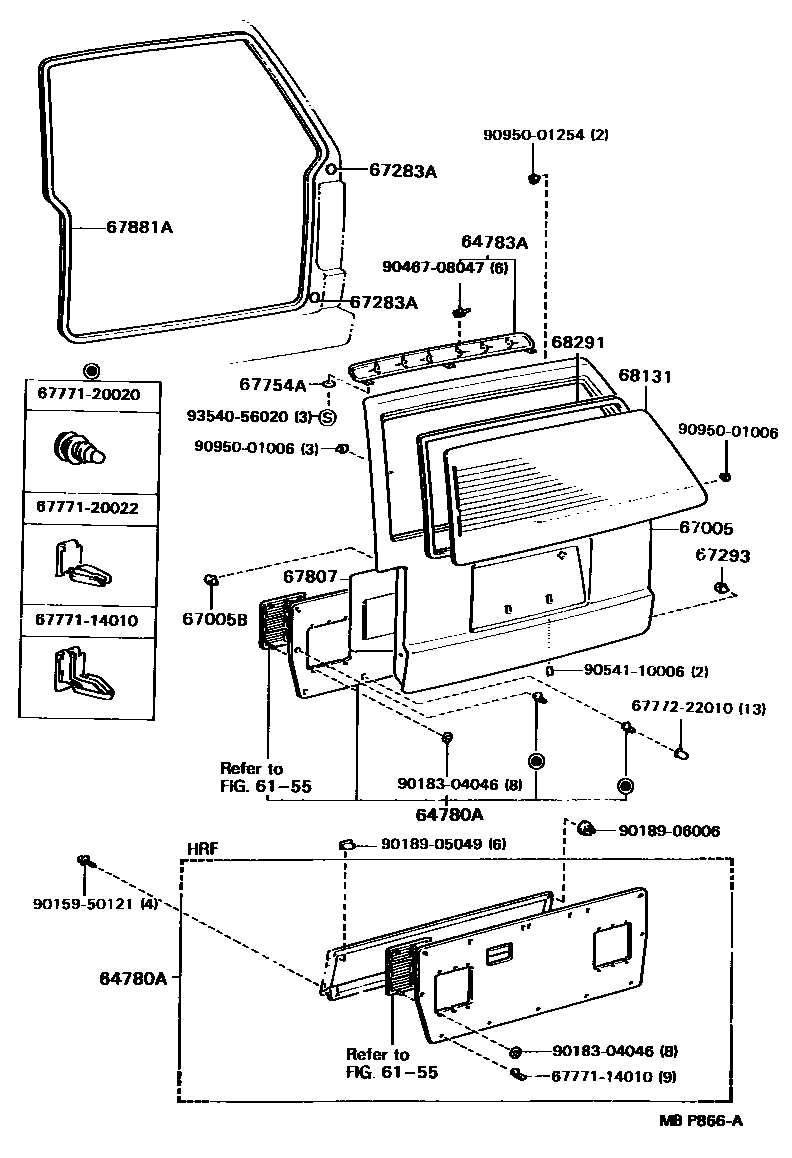

BACK DOOR PANEL & GLASS
6155
64780APANEL ASSY, BACK DOOR TRIM
GRAY,TRIM1#
LIGHT SABLE,TRIM4#
LIGHT SABLE,TRIM4#
64783ATRIM, BACK WINDOW PANEL, UPPER
LIGHT SABLE,TRIM4#
67005PANEL SUB-ASSY, BACK DOOR
W(REAR WINDOW WIPER)
W(REAR UNDER MIRROR)
W(REAR WINDOW WIPER & REAR UNDER MIRROR)
W(REAR WINDOW WIPER)
W(REAR WINDOW WIPER)
67005BCUSHION(FOR BACK DOOR PANEL)
67283ACOVER, BACK DOOR STOPPER CUSHION, NO.1
67293CUSHION, BACK DOOR LOWER STOPPER
67754ACOVER, BACK DOOR HOLE
67807COVER SUB-ASSY, BACK DOOR SERVICE HOLE
68131GLASS, BACK DOOR
*EHTT,T=4.0
*EHTT,T=4.0,BRONZE
*EHTT,T=4.0,BRONZE
68291WEATHERSTRIP, BACK DOOR GLASS
6777114010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14010
6777120020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20020
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9015950121
main90159-50121
9018304046
main90183-04046
9018905049
main90189-05049
9018906006
main90189-06006
9046708047
main90467-08047
9054110006
main90541-10006
9095001006
main90950-01006
9095001254
main90950-01254
9354056020
main93540-56020
25 parts on this diagram · 1 diagram in section
