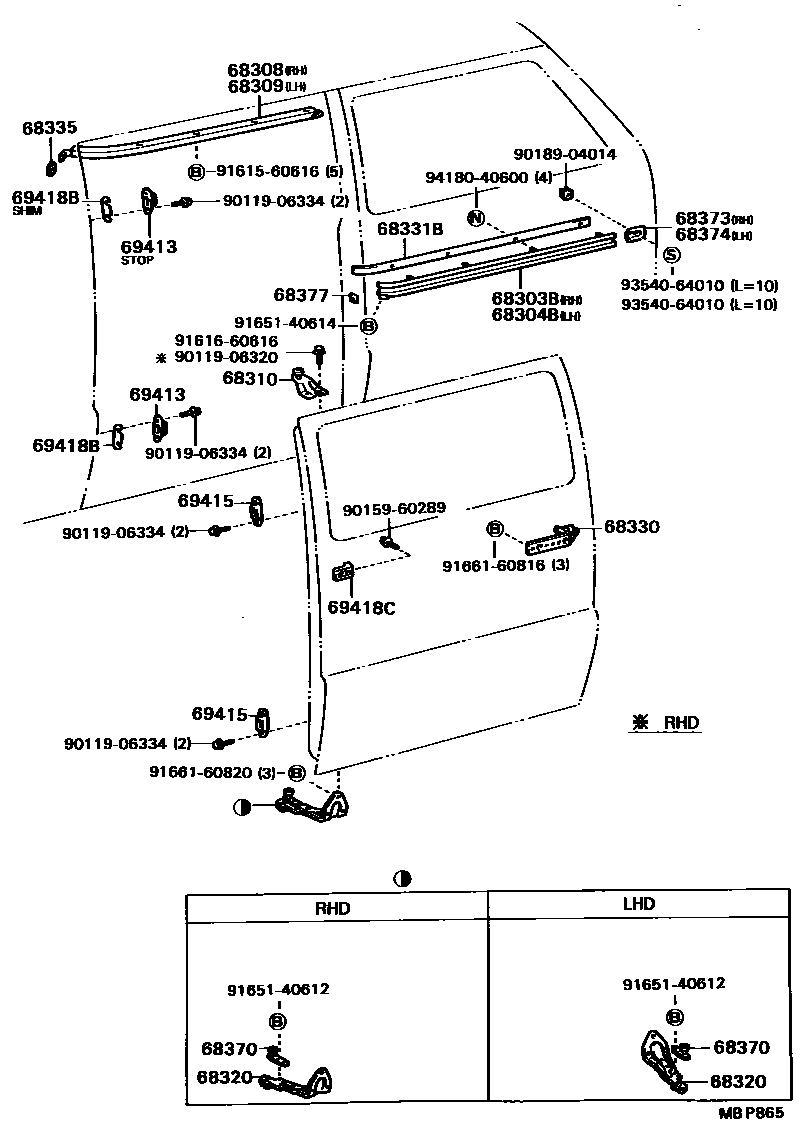

SLIDE ROLLER & RAIL

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-87001iYR21..GEN¥11,600198808-199001

sub68303-87002¥11,500

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-87003iYR2#,31..ARL¥11,400198808-199001

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-87001iYR21..GEN¥2,900198808-199001

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-87001iYR2#,31..ARL¥2,900198808-199001

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-87001iYR21..GEN¥2,020198808-199001

main68320-87001iYR2#,31..ARL¥2,020198808-199001

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68350-87001iYR21..GEN¥3,210198808-199001

main68360-87002iYR2#,31..ARL¥3,050198808-199001

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68330-87002iYR21..GEN¥5,800198808-199001

main68340-87002iYR2#,31..ARL¥5,800198808-199001

68331BPAD, SLIDE DOOR CENTER RAIL

main68367-87002iYR2#,31¥270198808-199001

68335PAD, SLIDE DOOR UPPER RAIL

main69243-87002iYR2#,31¥330198808-199001

68370ROLLER ASSY, SLIDE DOOR, LOWER SUB

main68350-87002iYR2#,31¥3,050198808-199001

68373MOULDING, SLIDE RAIL END, RH

main68373-87001iYR21..GEN¥1,200198808-199001

68374MOULDING, SLIDE RAIL END, LH

main68374-87001iYR2#,31..ARL¥1,200198808-199001

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-87001iYR2#,31¥170198808-199001

69413STOP, SLIDE DOOR DOWN MALE

main69416-87002iYR2#,31..GL¥1,460198808-199001

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-87003iYR2#,31..GL¥1,460198808-199001

UPPER

main69415-87004iYR2#..DLX¥1,180198808-199001

LOWER

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iYR2#,31¥130198808-199001

69418CSTOPPER, BACK DOOR MALE, LOWER

main69418-87003iYR2#,31¥2,500198808-199001

9011906320

main90119-06320¥130

9011906334

main90119-06334¥120

9015960289

main90159-60289¥70

9018904014

main90189-04014¥120

9161560616

main91615-60616¥120

9161660616

main91616-60616¥90

9165140612

main91651-40612¥70

9165140614

main91651-40614¥160

9166160816

main91661-60816¥130

9166160820

main91661-60820¥130

9354064010

main93540-64010¥110

9418040600

main94180-40600¥90

29 parts on this diagram · 1 diagram in section
