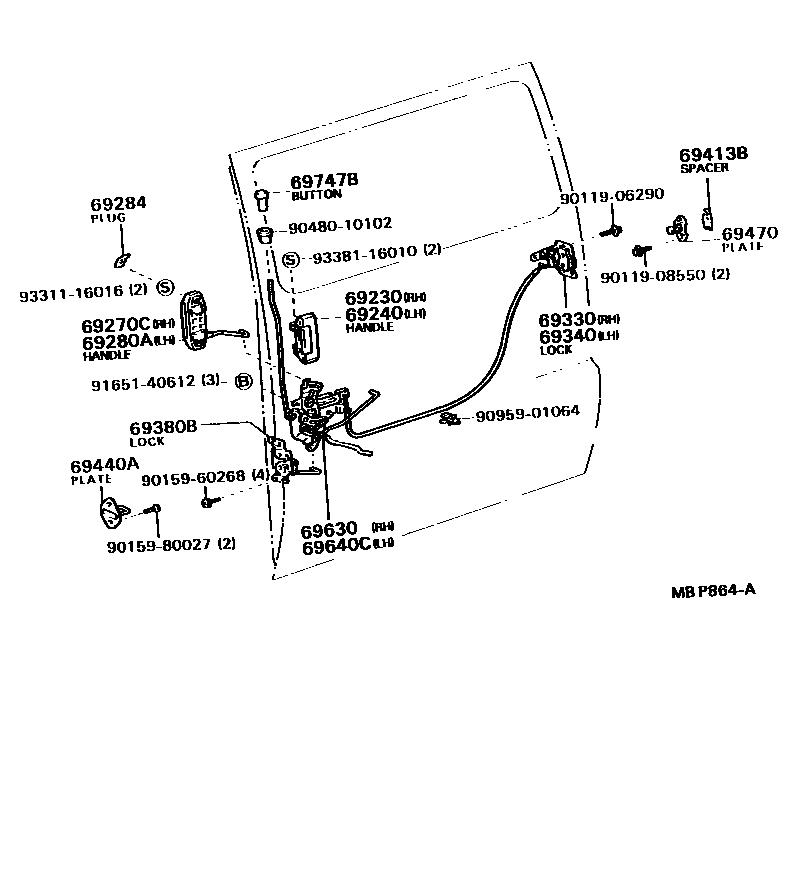

REAR DOOR LOCK & HANDLE

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-87003iYR21..GEN198808-199001

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-87002iYR2#,31..ARL198808-199001

69270CHANDLE ASSY, FRONT SLIDE DOOR, INSIDE RH

main69270-87001-03iYR21..GEN198808-199001

GRAY,TRIM1#

main69270-87001-06iYR21..GEN198808-199001

BROWN,TRIM4#

69280AHANDLE ASSY, SLIDE DOOR, INSIDE LH

main69280-87001-03iYR2#,31..MRF..ARL198808-199001

GRAY,TRIM1#

main69280-87001-06iYR2#,31..GL..ARL198808-199001

LIGHT BROWN,TRIM4#

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-03×2iYR2#,31..MRF198808-199001

GRAY,TRIM1#

main69284-87001-16×2iYR2#,31..GL198808-199001

LIGHT BROWN,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iYR21..GEN198808-199001

69340LOCK ASSY, REAR DOOR, LH

main69340-87001iYR2#,31..ARL198808-199001

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28010iYR2#,31..ARL198808-199001

69413BSHIM, DOOR LOCK STRIKER

main69413-87002iYR2#,31198808-199001

sub69413-28020

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iYR2#,31..ARL198808-199001

sub69440-46010

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001iYR2#,31198808-199001

sub69470-95D00

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-87004iYR21..GEN198808-199001

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28011iYR2#..DLX198808-199001

main69640-28021iYR2#,31..GL..ARL198808-199001

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69747-87701iYR2#,31198808-199001

sub69743-87001

9011906290

main90119-06290

9011908550

main90119-08550

9015960268

main90159-60268

9015980027

main90159-80027

9048010102

main90480-10102

9095901064

main90959-01064

9165140612

main91651-40612

9331116016

main93311-16016

9338116010

main93381-16010

23 parts on this diagram · 1 diagram in section
