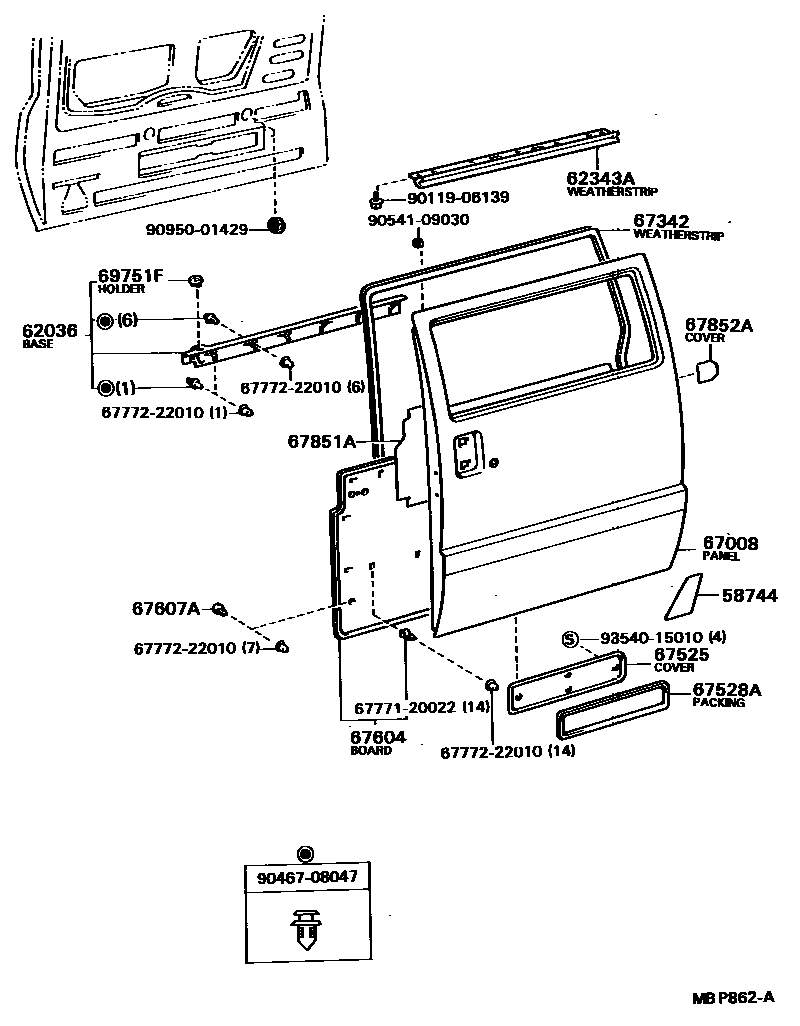

REAR DOOR PANEL & GLASS

0001 1 0002 1

58744PROTECTER, SLIDE DOOR PANEL, LH

main58744-87001iYR22..GL;YR21,31..ARL198808-199001

62036TRIM SUB-ASSY, REAR DOOR TRIM, UPPER LH

main62036-87001-06iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

main62036-87001-23iYR2#,31..MRF..GL..ARL198808-199001

SHADOW GRAY,TRIM1#

main67618-87001-03iYR2#..DLX198808-199001

GRAY,TRIM1#

62343AWEATHERSTRIP, SLIDE DOOR, NO.2

main62343-87001iYR2#,31198808-199001

sub67887-28010

67008PANEL SUB-ASSY, SLIDE DOOR, LH

main67004-87019iYR2#,31..ARL198808-199001

main67004-95D00iYR22..4FC198901-199001

W(LARGE SIDE PROTECTIVE M0ULDING)

67342WEATHERSTRIP, SLIDE DOOR, LH

main67872-87001iYR2#,31..ARL198808-199001

67525COVER, SLIDE DOOR PANEL, LOWER

main67525-28010iYR2#,31198808-199001

67528APACKING, SLIDE DOOR LOWER COVER

main67528-87001iYR2#,31198808-199001

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-87029-06iYR2#,31..GL..ARL198808-199001

SABLE,TRIM4#

sub67640-87026

main67640-87029-13iYR2#,31..MRF..GL..ARL198808-199001

SHADOW GRAY,TRIM1#

sub67640-87026

main67640-87030-03iYR2#..DLX198808-199001

SHADOW GRAY,TRIM1#

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-10016-23×7iYR2#,31..MRF198905-199001

SHADOW GRAY,TRIM1#

main90467-10016-26×7iYR2#,31..GL198905-199001

SABLE,TRIM4#

main90467-12078-13×7iYR2#,31..MRF198808-198905

SHADOW GRAY,TRIM1#

main90467-12078-56×7iYR2#,31..GL198808-198905

BROWN,TRIM4#

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-87002iYR2#,31198808-199001

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-87001iYR2#,31198808-199001

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-87001×2iYR2#..DLX;YR21..GEN198808-199001

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9011906139

main90119-06139

9046708047

main90467-08047

9054109030

main90541-09030

9095001429

main90950-01429

9354015010

main93540-15010

19 parts on this diagram · 2 diagrams in section
