FLOOR MAT & SILENCER PAD
58312CBOARD, REAR FLOOR
58331CCOVER, REAR FLOOR SIDE SERVICE HOLE, RH
58332CCOVER, REAR FLOOR SIDE SERVICE HOLE, LH
58415BBOARD, REAR FLOOR, NO.1
W(CAPTAIN SEAT)
58416BBOARD, REAR FLOOR, NO.2
58510DCARPET ASSY, FLOOR, FRONT
W(ICE COOL BOX),SHADOW GRAY,TRIM1#
W(ICE COOL BOX),SABLE,TRIM4#
W(3 SPEAKER & ICE COOL BOX),SHADOW GRAY,TRIM1#
W(3 SPEAKER & ICE COOL BOX),SABLE,TRIM4#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER & ICE COOL BOX),SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
W(DUAL AIR CONDITIONER & ICE COOL BOX),SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER & ICE COOL BOX),SABLE,TRIM4#
W(ICE COOL BOX),SABLE,TRIM4#
W(DUAL AIR CONDITIONER & ICE COOL BOX & 3-SPEAKER),SHADOW GRAY,SHADOW GRAY,TRIM1#
W(3 SPEAKER & ICE COOL BOX),SHADOW GRAY,TRIM1#
W(3 SPEAKER & ICE COOL BOX),SABLE,TRIM4#
SHADOW GRAY,TRIM1#
58512GSILENCER, FRONT FLOOR, NO.2
5852
58520DMAT ASSY, FRONT FLOOR, FRONT NO.2
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER),SABLE,TRIM4#
W(REAR HEATER),SHADOW GRAY,TRIM1#
W(REAR HEATER),SHADOW GRAY,TRIM1#
W(REAR HEATER),SABLE,TRIM4#
SHADOW GRAY,TRIM1#
W(REAR HEATER),SHADOW GRAY,SHADOW GRAY,TRIM1#
W(REAR HEATER),SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER),BROWN,TRIM4#
W(CAPTAIN SEAT & REAR HEATER),SHADOW GRAY,SHADOW GRAY,TRIM1#
W(CAPTAIN SEAT & REAR HEATER),BROWN,SABLE,TRIM4#
W(CAPTAIN SEAT),BROWN,TRIM4#
W(REAR HEATER),SHADOW GRAY,SHADOW GRAY,TRIM1#
NEW ZEALAND SPEC OR W(REAR HEATER),SHADOW GRAY,SHADOW GRAY,TRIM1#
W(REAR HEATER),SHADOW GRAY,TRIM1#
W(REAR HEATER),BROWN,SABLE,TRIM4#
BROWN,TRIM4#
W(REAR HEATER),BROWN,TRIM4#
NEW ZEALAND SPEC OR W(REAR HEATER),BROWN,SABLE,TRIM4#
SHADOW GRAY,TRIM1#
BROWN,TRIM4#
W(CAPTAIN SEAT & DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
W(CAPTAIN SEAT & DUAL AIR CONDITIONER),BROWN,TRIM4#
W(CAPTAIN SEAT),SHADOW GRAY,TRIM1#
W(CAPTAIN SEAT),BROWN,TRIM4#
SHADOW GRAY,TRIM1#
W(REAR HEATER),SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
W(DUAL AIR CONDITIONER),SABLE,TRIM4#
W(CAPTAIN SEAT & REAR HEATER),SHADOW GRAY,TRIM1#
W(CAPTAIN SEAT),SABLE,TRIM4#
W(CAPTAIN SEAT & REAR HEATER),SABLE,TRIM4#
NEW ZEALAND SPEC OR W(REAR HEATER),SHADOW GRAY,TRIM1#
W(REAR HEATER),SHADOW GRAY,TRIM1#
W(REAR HEATER),SABLE,TRIM4#
NEW ZEALAND SPEC OR W(REAR HEATER),SABLE,TRIM4#
SABLE,TRIM4#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
W(CAPTAIN SEAT & DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
W(CAPTAIN SEAT & DUAL AIR CONDITIONER),SABLE,TRIM4#
W(CAPTAIN SEAT),SHADOW GRAY,TRIM1#
W(CAPTAIN SEAT),SABLE,TRIM4#
58530JCARPET ASSY, FLOOR, CENTER
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
58540DCARPET ASSY, FLOOR, REAR
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
W(CAPTAIN SEAT),SHADOW GRAY,TRIM1#
W(CAPTAIN SEAT),SABLE,TRIM4#
58545BSILENCER, HEADER PANEL
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
sub58574-87004
58627APAD, CENTER FLOOR SILENCER, REAR
RH
LH
58634APLATE, ENGINE SERVICE HOLE MAT, RH
58676APAD, REAR FLOOR SILENCER
67895ASEAL, CENTER DOOR DUST
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
67921APAD, CENTER DOOR SCUFF PLATE
67933APLATE, FRONT DOOR SCUFF, REAR RH
67934APLATE, FRONT DOOR SCUFF, REAR LH
71938PAD, ENGINE SERVICE HOLE COVER, NO.2
9015940049
main90159-40049
9015940118
main90159-40118
9016440060
main90164-40060
9016440064
main90164-40064
9018904056
main90189-04056
9018904103
main90189-04103
9053025004
main90530-25004

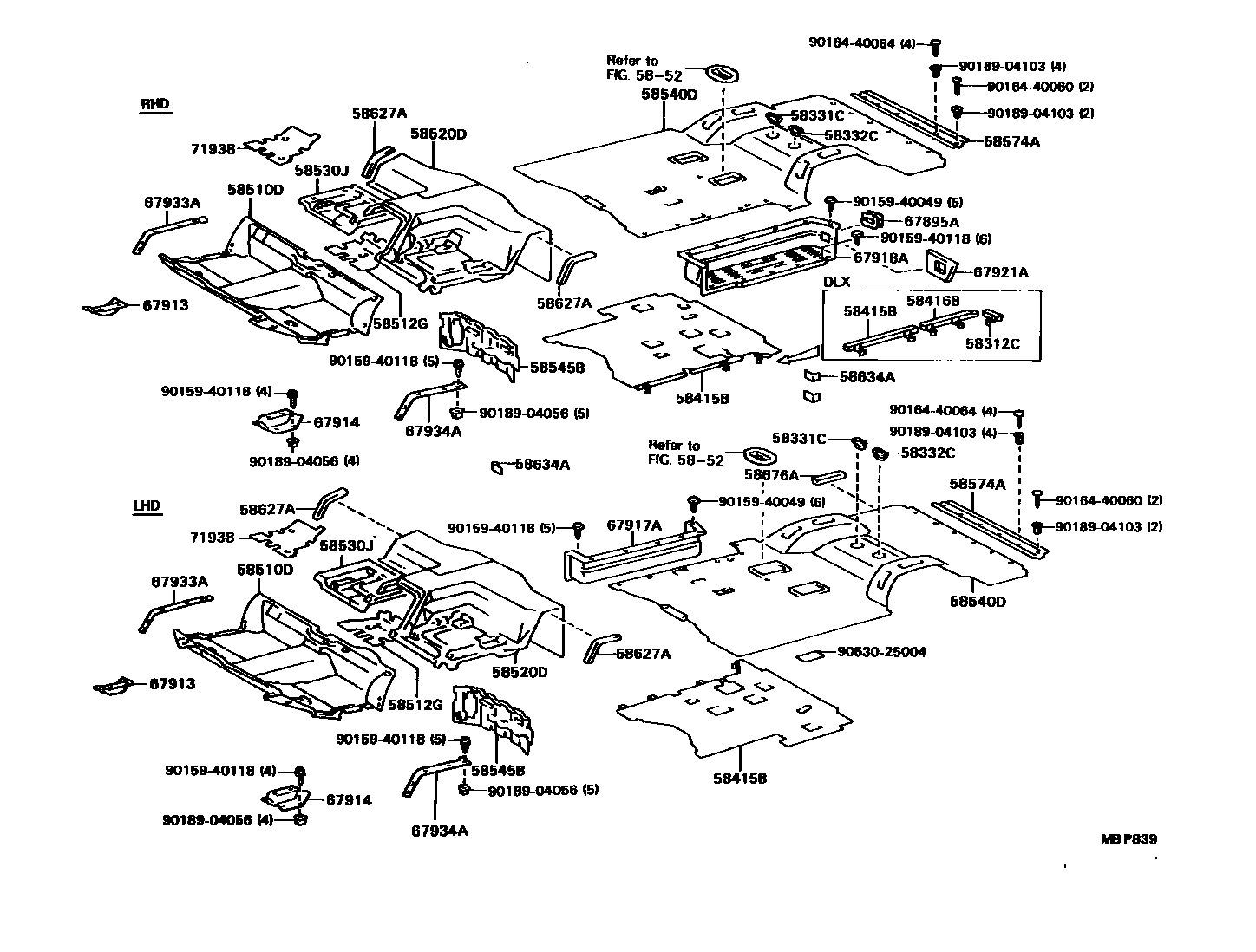

32 parts on this diagram · 1 diagram in section
