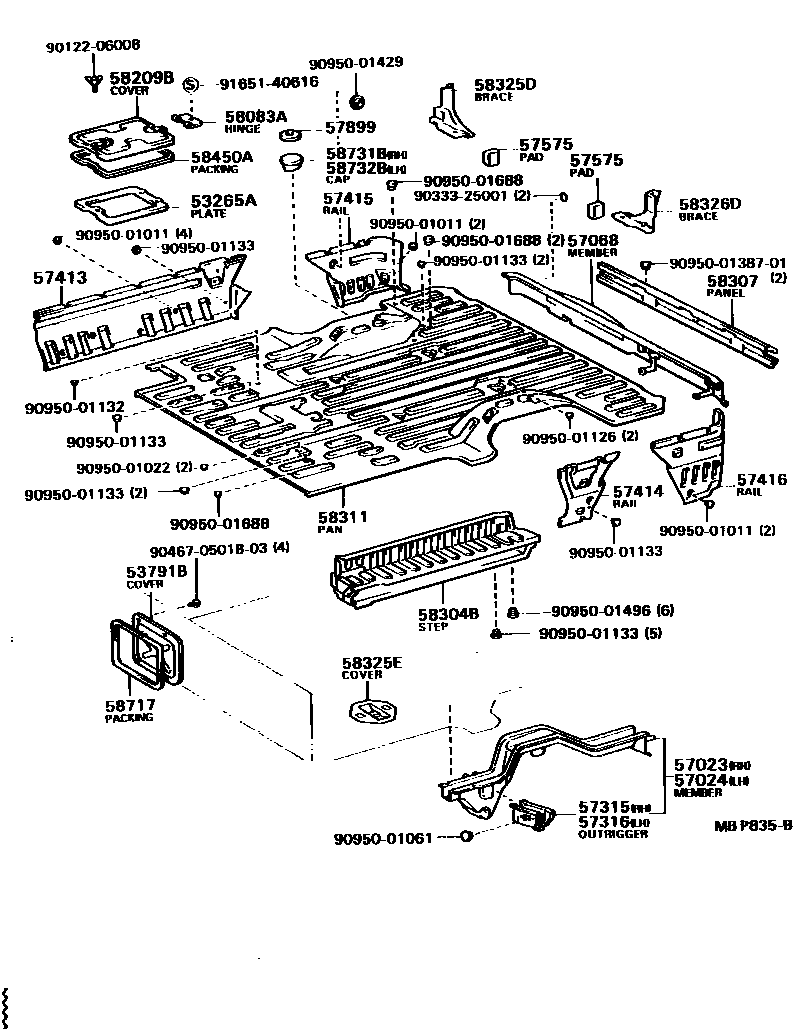

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

53265PLATE, BATTERY CARRIER MOUNTING, NO.2

main53266-28020iYR21..GEN198808-199001

53265AREINFORCEMENT, BATTERY CARRIER MOUNTING

main53205-87001iYR2#,31..ARL¥2,930198808-199001

53791BCOVER, COOL AIR INTAKE HOLE

main53791-87003iYR2#,31..MRF¥1,120198808-199001

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28918iYR21..GEN¥42,700198808-199001

main57023-28920iYR31¥48,900198808-199001

main57023-28926iYR2#..ARL¥42,700198808-199001

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28916iYR21..GEN¥42,700198808-199001

main57024-28918iYR31¥42,700198808-199001

main57024-28922iYR2#..GL..ARL¥42,700198808-199001

main57024-28923iYR22..4FC¥42,700198808-199001

W(CAPTAIN SEAT)

main57024-28924iYR2#..DLX¥42,700198808-199001

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-87007iYR21..GEN¥13,400198808-199001

main57068-87009iYR2#..ARL¥13,400198808-199001

main57068-95D02iYR31¥15,100198808-199001

57315OUTRIGGER, NO.3 RH

main57315-28010iYR21..GEN¥1,150198808-199001

main57315-87004iYR2#,31..ARL¥1,150198808-199001

57316OUTRIGGER, NO.3 LH

main57315-87004iYR21..GEN¥1,150198808-199001

main57316-87002iYR2#,31..GL..ARL¥1,150198808-199001

main57316-87003iYR2#..DLX¥1,150198808-199001

57413RAIL, FLOOR SIDE, CENTER RH

main57405-95D00iYR2#,31..ARL¥9,300198808-199001

main57405-95D01iYR22..4FC¥9,300198808-199001

W(CAPTAIN SEAT)

main57413-28011iYR21..GEN198808-199001

sub57405-28060¥2,090

57414RAIL, FLOOR SIDE, CENTER LH

main57406-28031iYR21..GEN¥9,300198808-199001

main57406-95D03iYR2#,31..ARL¥2,100198808-199001

57415RAIL, FLOOR SIDE, REAR RH

main57047-28030iYR21..GEN¥6,400198808-199001

main57047-87007iYR2#,31..ARL¥6,300198808-199001

57416RAIL, FLOOR SIDE, REAR LH

main57048-28030iYR21..GEN¥6,400198808-199001

main57048-87009iYR2#,31..ARL¥6,300198808-199001

57575PAD, DUSTPROOF FLOOR, REAR

main57575-87002iYR2#,31¥1,950198808-199001

57899SEAL, REAR FLOOR, REAR

main57899-87001iYR2#,31..ARL¥510198808-199001

58083AHINGE SUB-ASSY, BATTERY SERVICE COVER, MALE

main58083-87002iYR2#,31¥750198808-199001

58209BCOVER SUB-ASSY, BATTERY SERVICE HOLE

main58209-87001iYR2#,31¥3,310198808-199001

58304BSTEP SUB-ASSY, REAR FLOOR, LH

main58304-87004iYR2#,31..ARL¥38,100198808-199001

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-87004iYR2#¥11,800198808-199001

main58307-95D00iYR31¥13,200198808-199001

58311PAN, REAR FLOOR

main58311-28081iYR21..GEN¥68,000198808-199001

main58311-95D00iYR2#,31..ARL¥68,000198808-199001

main58311-95D01iYR22..4FC¥68,000198808-199001

W(CAPTAIN SEAT)

58325DBRACE, REAR FLOOR PANEL, RH

main58325-87001iYR2#,31¥1,440198808-199001

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-87002-16iYR2#,31..GL198808-199001

SABLE,TRIM4#

58326DBRACE, REAR FLOOR PANEL, LH

main58326-87001iYR2#,31¥1,440198808-199001

58450APACKING, BATTERY SERVICE HOLE COVER

main58449-87002iYR2#,31¥650198808-199001

58717PACKING, COOLER AIR INLET COVER

main58717-87004iYR2#,31..MRF¥1,000198808-199001

58731BCAP, REAR ABSORBER, RH

main58731-87002iYR2#,31¥590198808-199001

58732BCAP, REAR ABSORBER, LH

main58732-87002iYR2#,31¥590198808-199001

9012206008

main90122-06008¥550

9033325001

main90333-25001¥140

904670501803

main90467-0501803

9095001011

main90950-01011¥170

9095001022

main90950-01022¥200

9095001061

main90950-01061¥240

9095001126

main90950-01126¥360

9095001132

main90950-01132¥180

9095001133

main90950-01133¥590

909500138701

main90950-0138701

9095001429

main90950-01429¥110

9095001496

main90950-01496¥110

9095001688

main90950-01688¥210

9165140616

main91651-40616¥60

40 parts on this diagram · 3 diagrams in section
