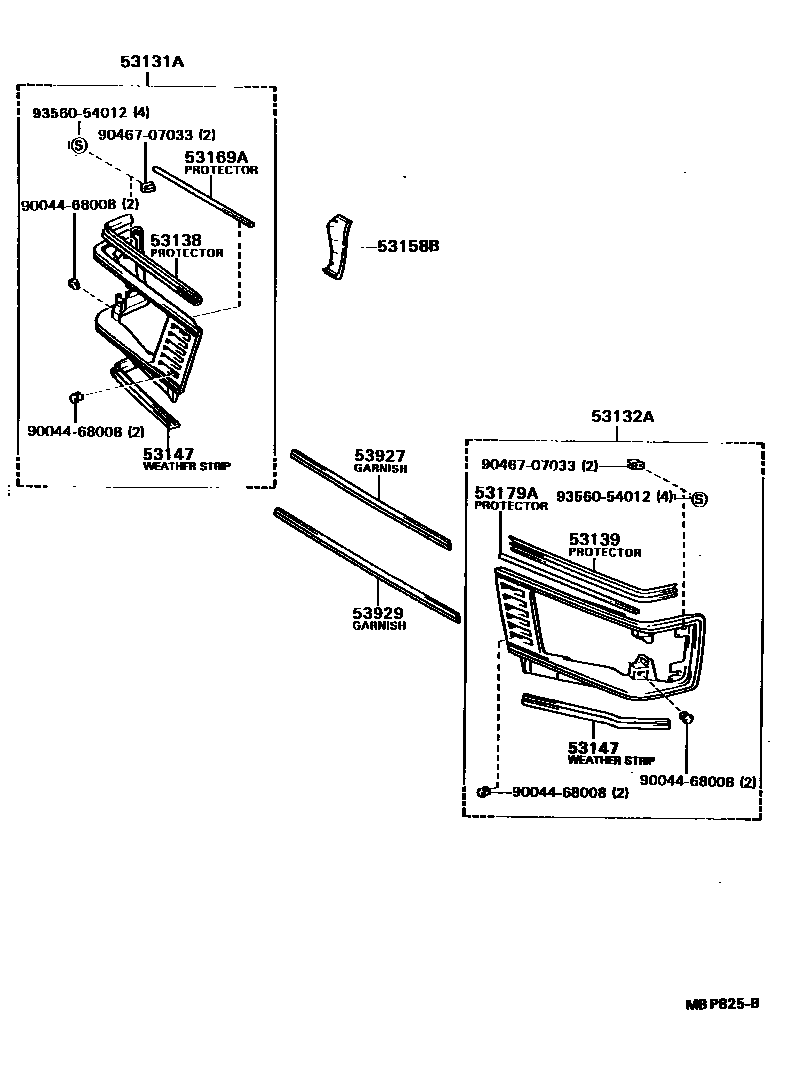

RADIATOR GRILLE

0001 1 0002 1

53131ADOOR, HEADLAMP, RH

main53031-28020iYR22..DLX198808-199001

main53031-29205iYR21..GEN198808-199001

sub53031-29165

main53031-87028iYR22..GL;YR21,31..ARL198808-199001

53132ADOOR, HEADLAMP, LH

main53032-28020iYR22..DLX198808-199001

main53032-29205iYR21..GEN198808-199001

sub53032-29165

main53032-87027iYR22..GL;YR21,31..ARL198808-199001

53138PROTECTOR, HEADLAMP DOOR, RH

main53139-87005iYR21..GEN198808-199001

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-87005iYR21..GEN198808-199001

53147WEATHERSTRIP, HEADLAMP ORNAMENT, NO.1

main53147-87001×2iYR21..GEN198808-199001

main53147-87004×2iYR2#,31..ARL198808-199001

53158BPAD, HEADLAMP DOOR

main53158-28010iYR21..GEN198808-199001

53169APROTECTOR, HEADLAMP DOOR, NO.2 RH

main53169-87002iYR21..GEN198808-199001

sub53169-87003

53179APROTECTOR, HEADLAMP DOOR, NO.2 LH

main53169-87002iYR21..GEN198808-199001

sub53169-87003

53927GARNISH, FRONT PANEL, CENTER UPPER

main53927-87003iYR21..GEN198808-199001

53929GARNISH, FRONT PANEL, CENTER LOWER

main53929-87002iYR21..GEN198808-199001

9004468008

main90044-68008

9046707033

main90467-07033

9356054012

main93560-54012

13 parts on this diagram · 2 diagrams in section
