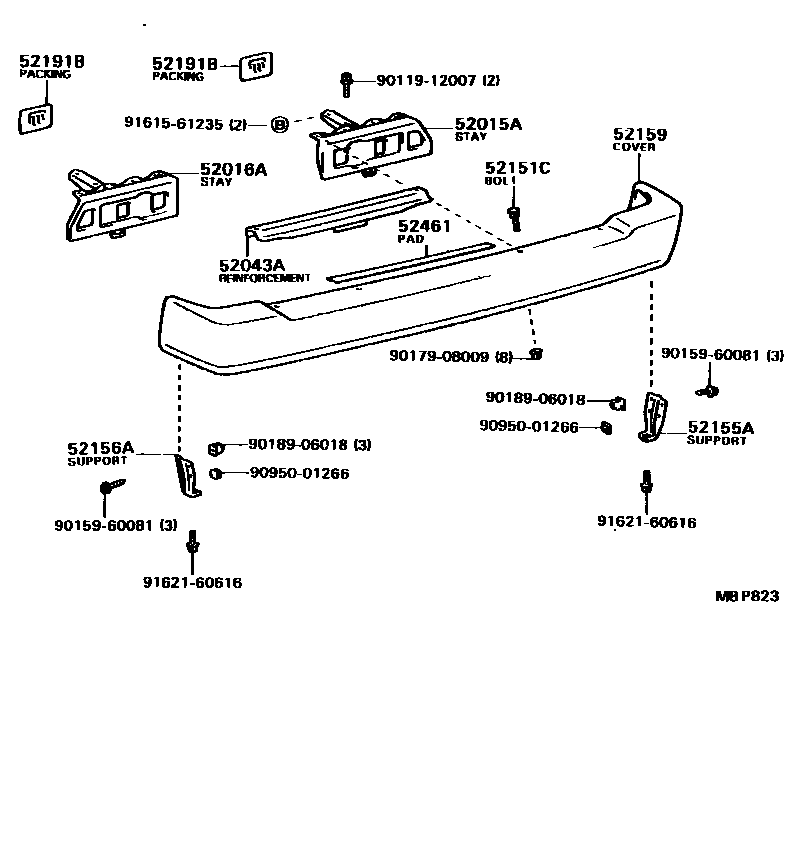

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-87002iYR21..GEN198808-199001

sub52015-87003

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-87004iYR21..GEN198808-199001

sub52016-87003

52043AREINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2

main52043-87001iYR21..GEN198808-199001

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08056iYR21..GEN198808-199001

UPR

main90112-08061iYR21..GEN198808-199001

LWR

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-28020iYR2#,31..ARL198808-199001

main52155-87001iYR21..GEN198808-199001

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-87001iYR21..GEN198808-199001

main52156-28010iYR2#,31..ARL198808-199001

52159COVER, REAR BUMPER

main52159-28010iYR2#..DLX198808-199001

main52159-28900iYR2#,31..GL..ARL198808-199001

main52159-87001iYR21..GEN198808-199001

52191BGROMMET, REAR BUMPER STAY

main52191-28010iYR2#,31..ARL198808-199001

main52191-87002iYR21..GEN198808-199001

52461PAD, REAR BUMPER, CENTER

main52461-87002iYR21..GEN198808-199001

9011912007

main90119-12007

9015960081

main90159-60081

9017908009

main90179-08009

9018906018

main90189-06018

9095001266

main90950-01266

9161561235

main91615-61235

9162160616

main91621-60616

16 parts on this diagram · 2 diagrams in section
