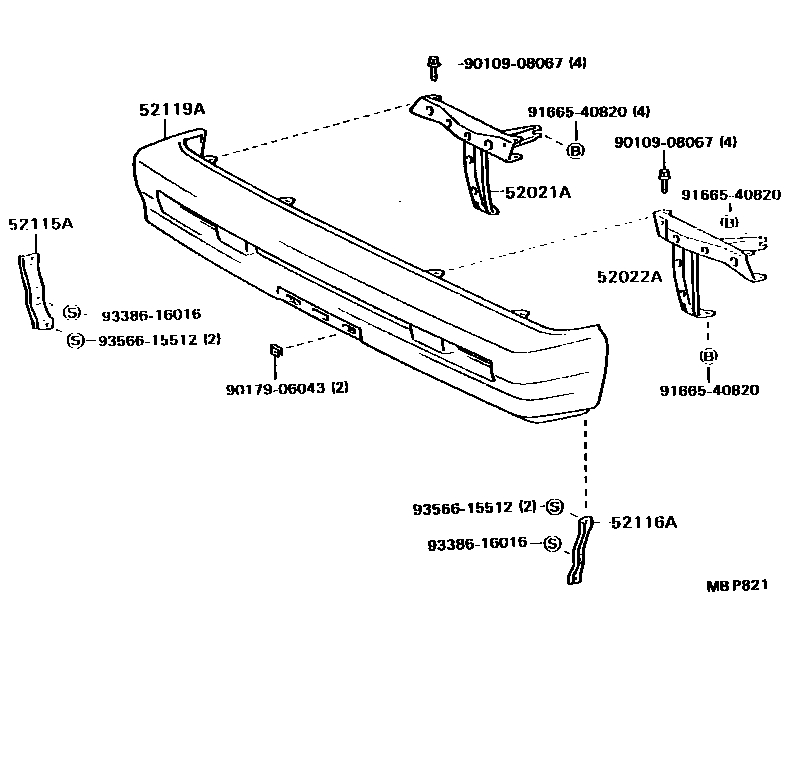

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-28040iYR2#,31..ARL198808-199001

sub52021-28030

52021AREINFORCEMENT SUB-ASSY, FRONT BUMPER, RH

main52021-87001iYR21..GEN198808-199001

52022AREINFORCEMENT SUB-ASSY, FRONT BUMPER, LH

main52022-87001iYR21..GEN198808-199001

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-87001iYR21..GEN198808-199001

main52675-28020iYR2#,31..ARL198808-199001

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-87001iYR21..GEN198808-199001

main52675-28020iYR2#,31..ARL198808-199001

52119ACOVER, FRONT BUMPER

main52119-28060iYR2#..DLX198808-199001

main52119-28902iYR2#,31..GL..ARL198808-199001

main52119-87001iYR21..GEN198808-199001

9010908067

main90109-08067

9017906043

main90179-06043

9166540820

main91665-40820

9338616016

main93386-16016

9356615512

main93566-15512

11 parts on this diagram · 2 diagrams in section
