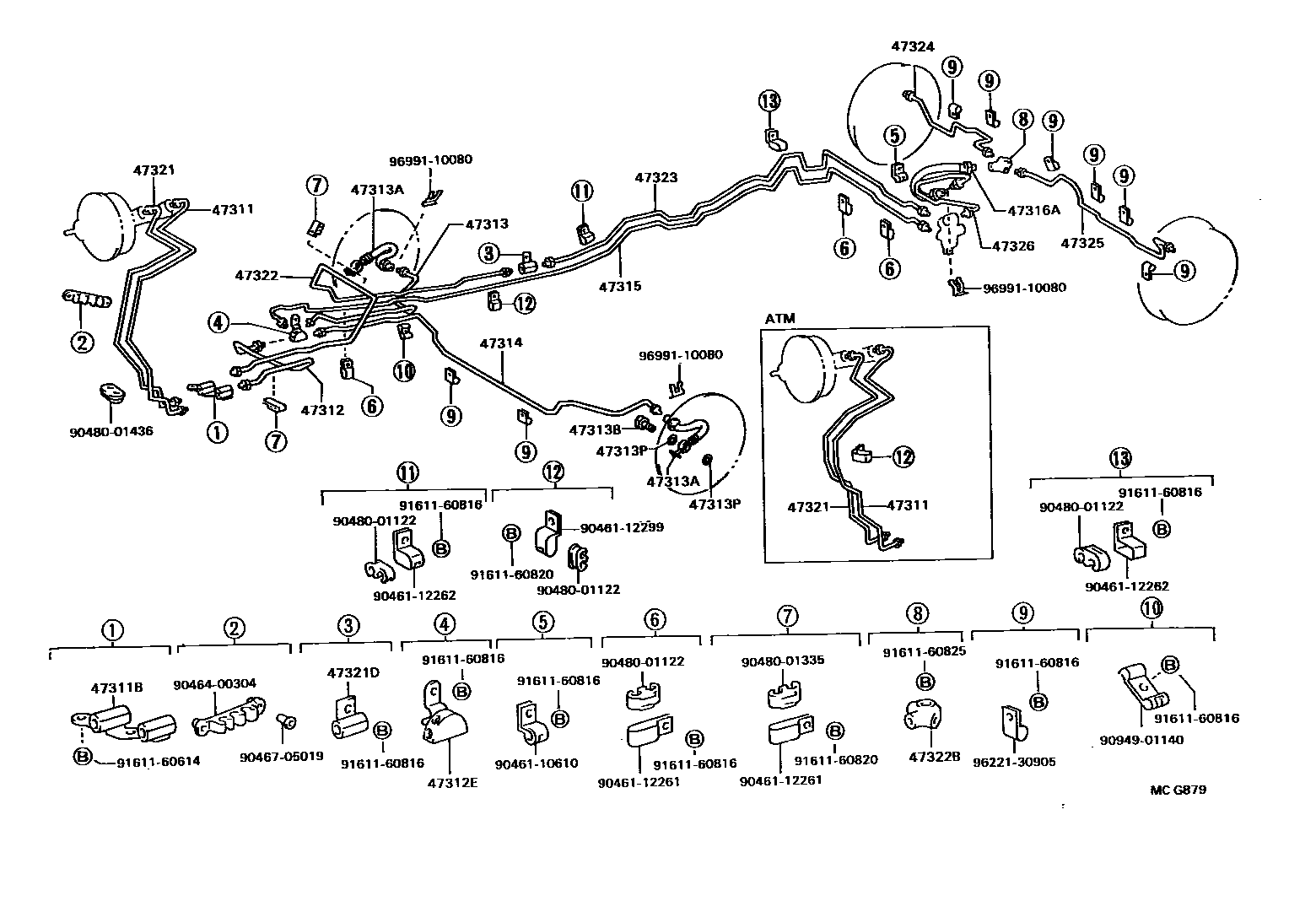

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-28180iYR2#,31..5F..ARL198808-199001

main47311-28190iYR2#,31..4FC..ARL198808-199001

main47311-28200iYR21..GEN198808-199001

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10097iYR2#,31198808-199001

47312TUBE, FRONT BRAKE, NO.2

main47312-28110iYR2#,31198808-199001

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90414-10014iYR2#,31198808-199001

47313TUBE, FRONT BRAKE, NO.3

main47313-28070iYR31198808-199001

main47313-28110iYR2#198808-199001

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02575×2iYR2#198808-199001

sub90947-02505

main96940-33056×2iYR31198808-199001

sub96940-33055

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iYR2#198808-199001

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iYR2#198808-199001

47314TUBE, FRONT BRAKE, NO.4

main47314-28070iYR31198808-199001

main47314-28120iYR2#198808-199001

47315TUBE, FRONT BRAKE, NO.5

main47315-28070iYR2#198808-199001

main47315-28080iYR31198808-199001

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02523iYR31198904-199001

sub90947-02492

main96940-33106iYR2#198808-199001

sub96940-33107

main96940-33606iYR31198808-198904

sub90947-02492

47321TUBE, REAR BRAKE, NO.1

main47321-28180iYR2#,31..5F..ARL198808-199001

main47321-28190iYR2#,31..4FC..ARL198808-199001

main47321-28200iYR21..GEN198808-199001

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10063iYR2#198808-199001

main90412-10133iYR31198808-199001

47322TUBE, REAR BRAKE, NO.2

main47322-28120iYR2#198808-199001

main47322-28140iYR31198808-199001

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10130iYR2#,31198808-199001

47323TUBE, REAR BRAKE, NO.3

main47323-28160iYR2#198808-199001

main47323-28170iYR31198808-199001

47324TUBE, REAR BRAKE, NO.4

main47324-28031iYR21..GEN198808-199001

sub47324-28032

main47324-28041iYR21..ARL198808-199001

main47324-28071iYR22198808-199001

main47324-28110iYR31198808-199001

47325TUBE, REAR BRAKE, NO.5

main47325-28050iYR21..GEN198808-199001

main47325-28060iYR21..ARL198808-199001

main47325-28090iYR22198808-199001

main47325-28110iYR31198808-199001

47326TUBE, REAR BRAKE, NO.6

main47326-28060iYR2#,31198808-199001

9046110610

main90461-10610

9046112261

main90461-12261

9046112262

main90461-12262

9046112299

main90461-12299

9046400304

main90464-00304

9046705019

main90467-05019

9048001122

main90480-01122

9048001335

main90480-01335

9048001436

main90480-01436

9094901140

main90949-01140

9161160614

main91611-60614

9161160816

main91611-60816

9161160820

main91611-60820

9161160825

main91611-60825

9622130905

main96221-30905

9699110080

main96991-10080

35 parts on this diagram · 4 diagrams in section
