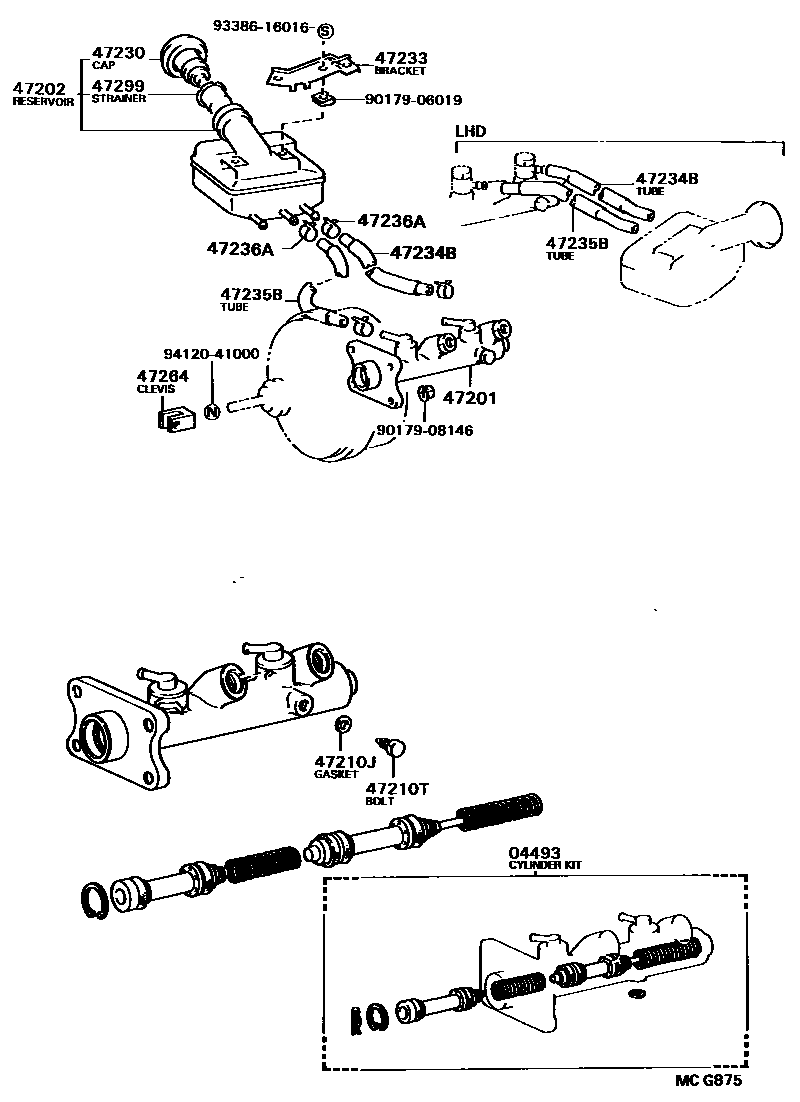

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-28060iYR2#,31198808-199001

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28150iYR2#,31..ARL198808-199001

main47201-28160iYR21..GEN198808-199001

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28100iYR2#,31..5F..ARL198808-199001

main47220-28110iYR2#,31..4FC..ARL198808-199001

main47220-28120iYR21..5F..GEN198808-199001

main47220-28130iYR21..4FC..GEN198808-199001

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iYR2#,31198808-199001

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iYR2#,31198808-199001

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iYR2#,31198808-199001

47233BRACKET, RESERVOIR

main47233-28040iYR2#,31..ARL198808-199001

main47233-28050iYR21..GEN198808-199001

47234BTUBE, RESERVOIR, NO.1

main47234-28060iYR2#,31..ARL198808-199001

main47234-28070iYR21..GEN198808-199001

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-28060iYR2#,31..ARL198808-199001

main47235-28070iYR21..GEN198808-199001

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002iYR2#,31198808-199001

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iYR2#,31198808-199001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iYR2#,31198808-199001

9017906019

main90179-06019

9017908146

main90179-08146

9338616016

main93386-16016

9412041000

main94120-41000

16 parts on this diagram · 1 diagram in section
