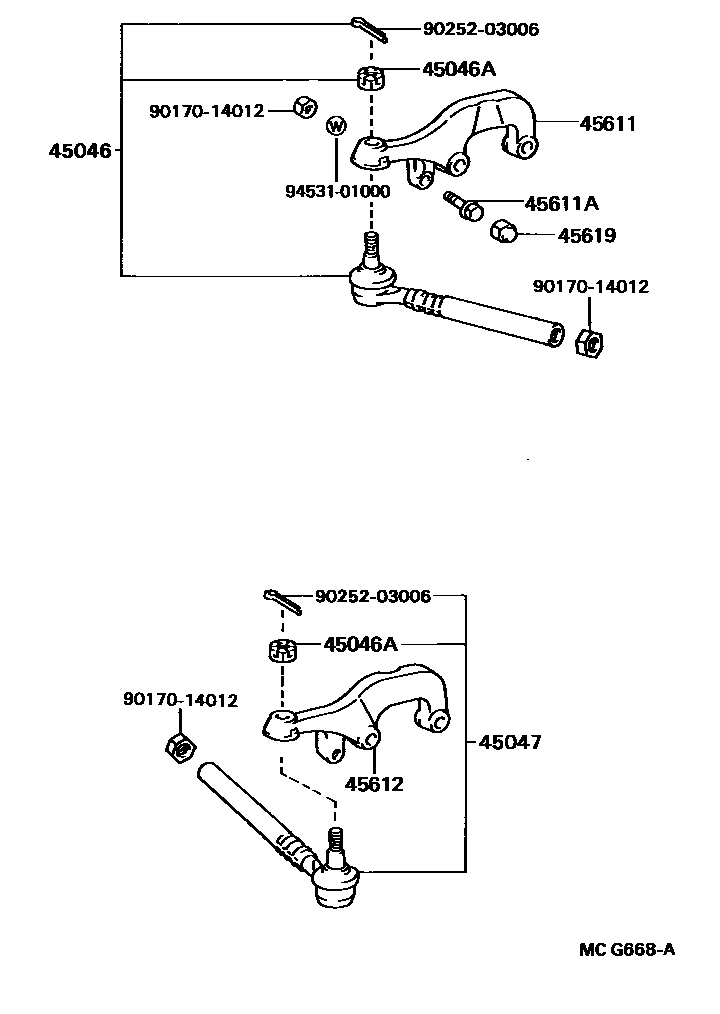

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29185iYR2#198808-199001

main45046-29195iYR31198808-199001

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iYR2#198808-199001

main90171-14042iYR31198808-199001

45047END SUB-ASSY, TIE ROD, LH

main45046-29185iYR2#198808-199001

main45046-29195iYR31198808-199001

45611ARM, STEERING KNUCKLE, RH

main45611-28030iYR2#198808-199001

sub45611-28031

45611ABOLT, KNUCKLE STOPPER

main90106-10032iYR2#198808-199001

45612ARM, STEERING KNUCKLE, LH

main45612-28030iYR2#198808-199001

sub45612-28031

45619COVER, KNUCKLE STOPPER

main45619-14020iYR2#,31198808-199001

9017014012

main90170-14012

9025203006

main90252-03006

9453101000

main94531-01000

10 parts on this diagram · 8 diagrams in section
