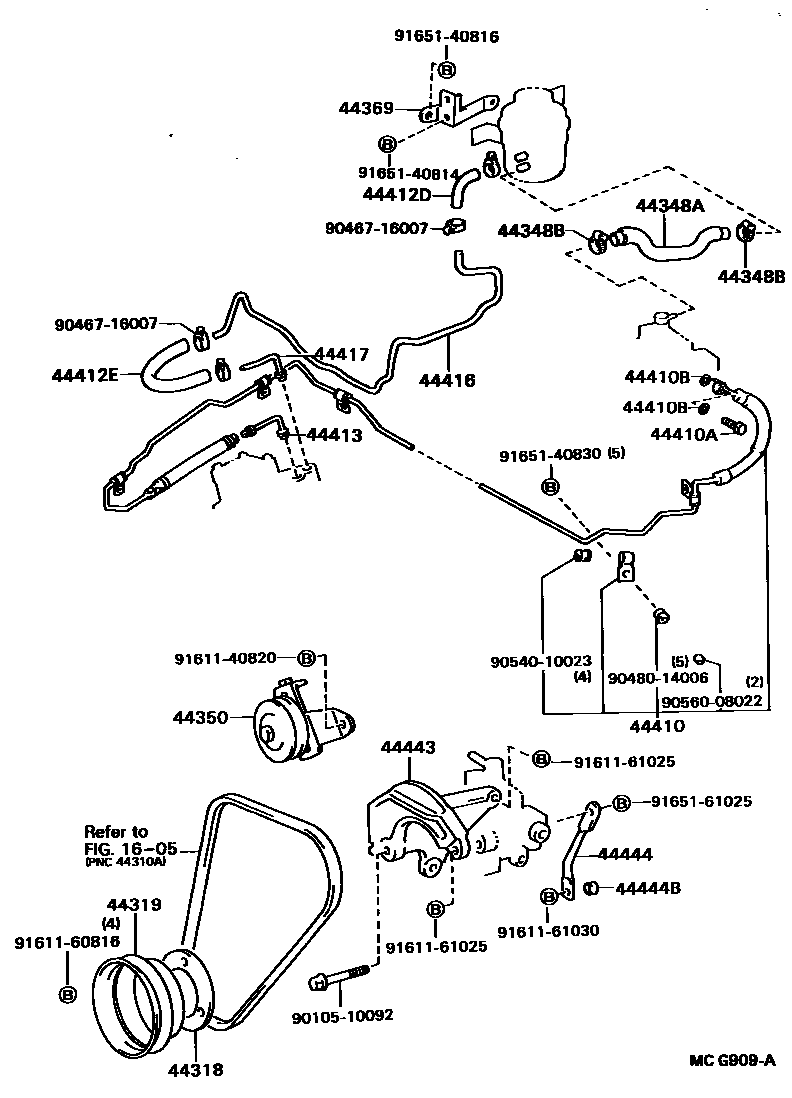

POWER STEERING TUBE
1605
44318SPACER, VANE PUMP DRIVE PULLEY
NEW ZEALAND SPEC
44319PULLEY, VANE PUMP DRIVE
NEW ZEALAND SPEC
44348AHOSE, OIL RESERVOIR TO PUMP, NO.1
RESERVOIR SIDE
PUMP SIDE
NEW ZEALAND SPEC
44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
sub90467-21010
44350PULLEY ASSY, POWER STEERING IDLE
NEW ZEALAND SPEC
44369BRACKET, OIL RESERVOIR, NO.1
NEW ZEALAND SPEC
44410ABOLT, UNION(FOR PRESSURE FEED TUBE)
NEW ZEALAND SPEC
44410BGASKET(FOR PRESSURE FEED TUBE)
44412DHOSE, RETURN, NO.1
44413TUBE, PRESSURE FEED, NO.1
NEW ZEALAND SPEC
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
W(POWER STEERING)
44443BRACKET, PUMP
NEW ZEALAND SPEC
44444STAY, PUMP, REAR
NEW ZEALAND SPEC
44444BCOLLAR (FOR PUMP REAR STAY)
NEW ZEALAND SPEC
9010510092
main90105-10092
9046716007
main90467-16007
9048014006
main90480-14006
9054010023
main90540-10023
9056008022
main90560-08022
9161140820
main91611-40820
9161160816
main91611-60816
9161161025
main91611-61025
9161161030
main91611-61030
9165140814
main91651-40814
9165140816
main91651-40816
9165140830
main91651-40830
9165161025
main91651-61025
31 parts on this diagram · 4 diagrams in section
