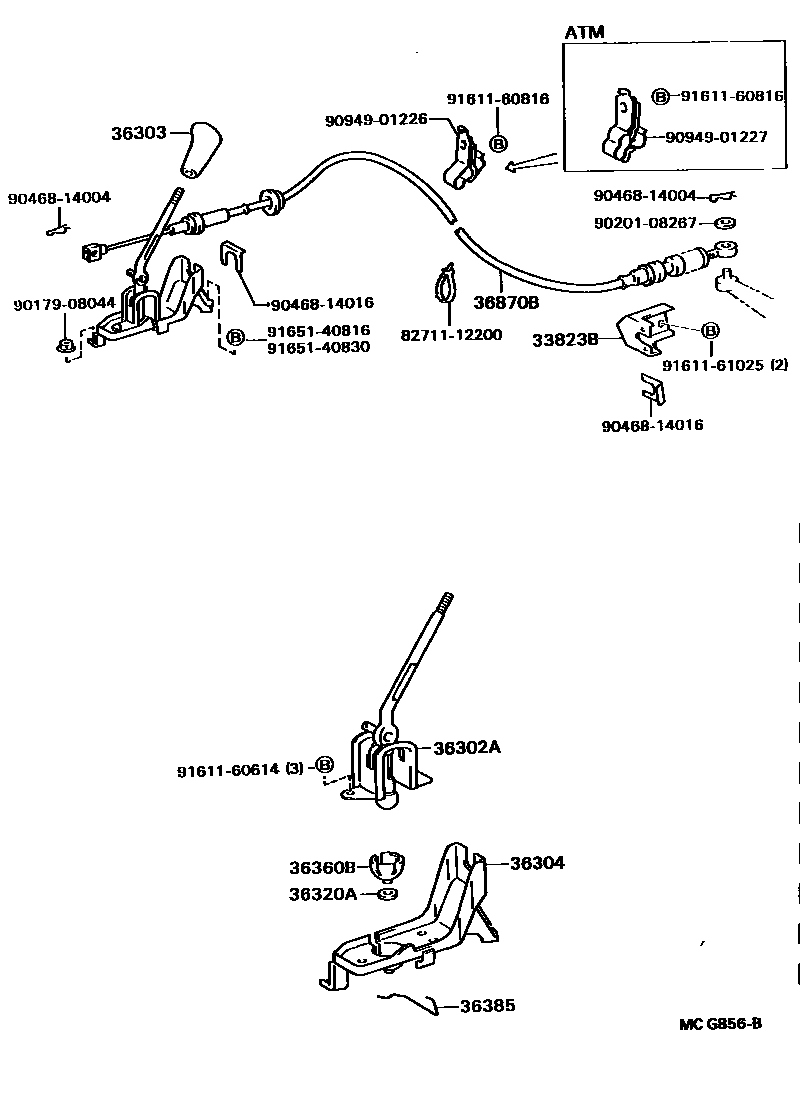

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-28100iYR31198808-199001

36302ALEVER SUB-ASSY, TRANSFER SHIFT, NO.1

main33503-28100iYR31198808-199001

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-28010-03iYR31198808-199001

GRAY,TRIM1#

main36303-28010-36iYR31198808-199001

BROWN,TRIM4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main33506-28070iYR31198808-199001

36320ABUSH (FOR TRANSFER SHIFT LEVER)

main90385-04001iYR31198808-199001

36360BSEAT, TRANSFER SHIFT LEVER BALL

main33556-28040iYR31198808-199001

36385SPRING, TRANSFER SHIFT LEVER TORSION

main36385-28010iYR31198808-199001

36870BCABLE ASSY, TRANSFER CONTROL

main33820-28050iYR31..5F198808-199001

main33820-28070iYR31..4FC198808-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017908044

main90179-08044

9020108267

main90201-08267

9046814004

main90468-14004

9046814016

main90468-14016

9094901226

main90949-01226

9094901227

main90949-01227

9161160614

main91611-60614

9161160816

main91611-60816

9161161025

main91611-61025

9165140816

main91651-40816

9165140830

main91651-40830

20 parts on this diagram · 2 diagrams in section
