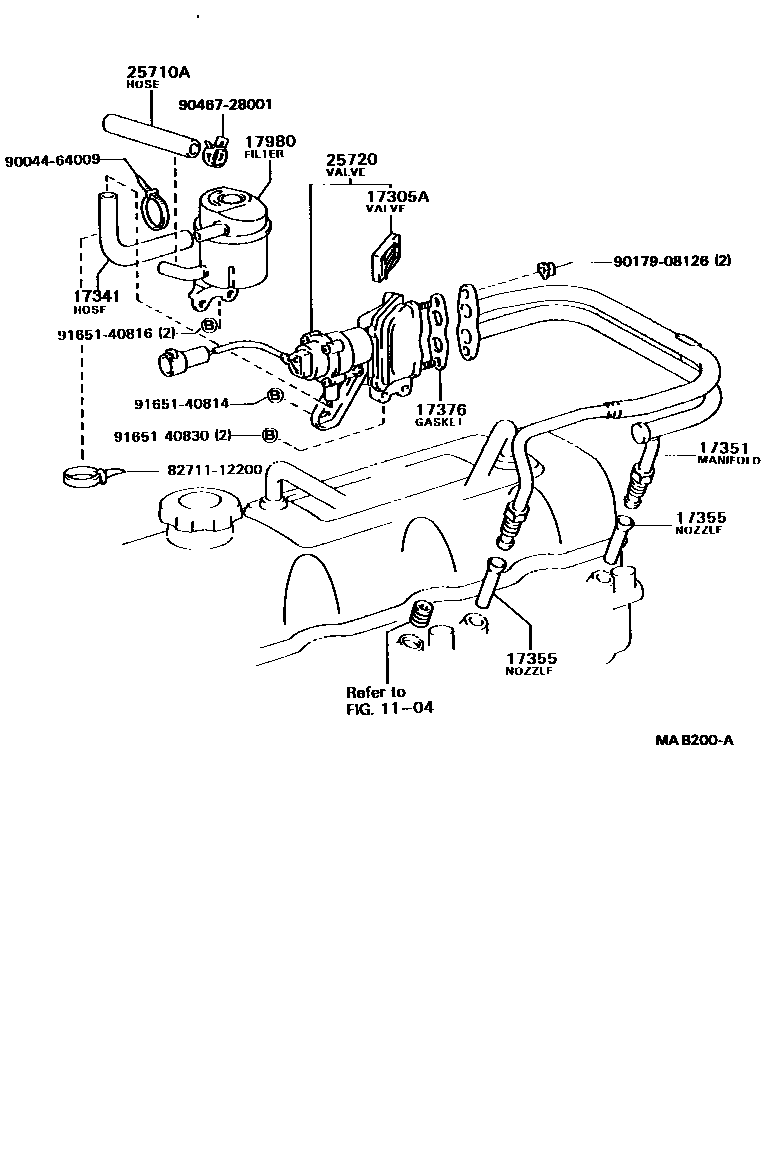

MANIFOLD AIR INJECTION SYSTEM

1104

17305AVALVE SUB-ASSY, REED

main17305-28010i3YC..YR21198808-199001

NOK

main17305-71010i3YC..YR21198808-199001

DENSO

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-71010i3YC..YR21198808-199001

17351MANIFOLD, AIR INJECTION

main17306-71010i3YC..YR21198808-199001

17355NOZZLE, AIR INJECTION

main17355-71010i3YC..YR21198808-199001

17376GASKET, AIR TUBE, NO.1

main17376-71010i3YC..YR21198808-198912

sub17376-71011

main17376-71011i3YC..YR21198912-199001

17980FILTER ASSY, AIR SUCTION

main17980-71012i3YC..YR21198808-199001

25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)

main90445-31010i3YC..YR21198808-199001

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25720-71010i3YC..YR21198808-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9004464009

main90044-64009

9017908126

main90179-08126

9046728001

main90467-28001

9165140814

main91651-40814

9165140816

main91651-40816

9165140830

main91651-40830

16 parts on this diagram · 1 diagram in section
