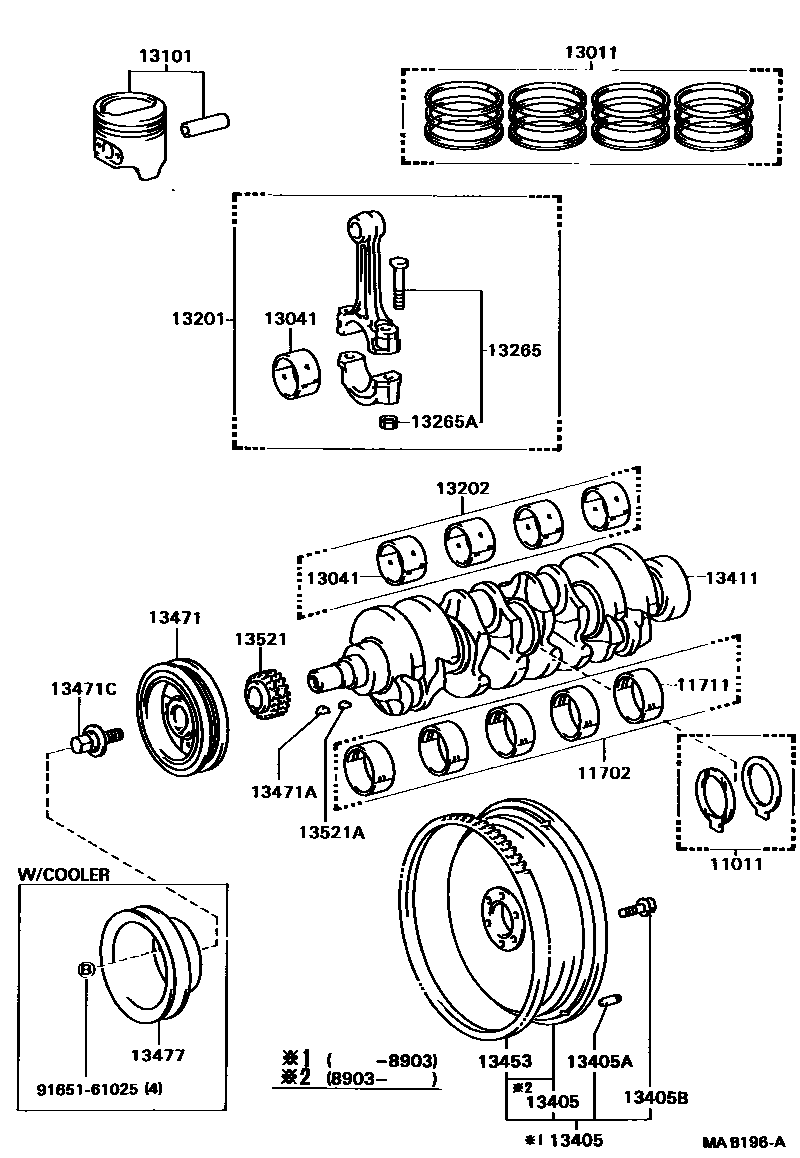

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1
MARK 2
MARK 3
13011RING SET, PISTON
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13201ROD SUB-ASSY, CONNECTING
sub13201-79046
13202BEARING SET, CONNECTING ROD
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
sub13411-73900
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
NEW ZEALAND SPEC,W(AIR CONDITIONER)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
9165161025
main91651-61025
22 parts on this diagram · 1 diagram in section
