CLEARANCE & BACK SONAR

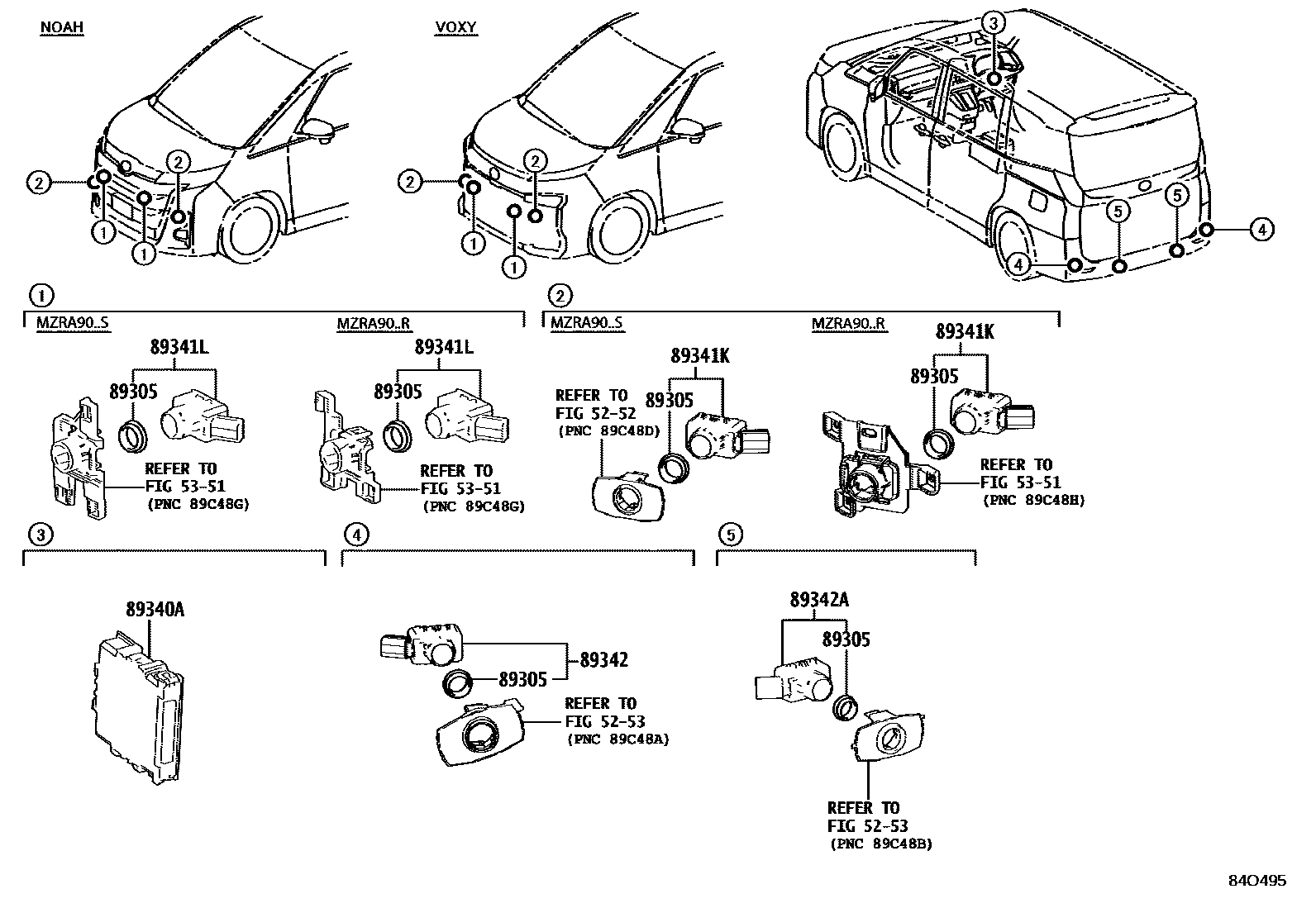

Parts diagram
5252
5253
5351
89305CUSHION SET, ULTRASONIC SENSOR
main89305-52010i¥90202201-202501
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-V1010i¥16,200202201-202404
*614
main89340-V1070i¥14,700202404-202501
*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-50080-C0i202201-202501
DUMMY-MAT BLACK
main89341-K0060-S9i202201
METALLIC BLACK
sub89341-50080¥6,000
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-50080-C0i202201-202501
DUMMY-MAT BLACK
main89341-K0060-S9i202201
METALLIC BLACK
sub89341-50080¥6,000
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-K0060-21i202201-202501
SPARKLING BLACK PEARL CS.,220
sub89341-50080¥6,000
main89341-K0060-22i202201-202501
GLITTER BLACK GF.,226
sub89341-50080¥6,000
main89341-K0060-A1i202201-202501
WHITE PEARL CS.,070
sub89341-50080¥6,000
main89341-K0060-A4i202501
PLATINUM WHITE PEARL MC.,089
sub89341-50080¥6,000
main89341-K0060-C5i202201-202501
ATTITUDE BLACK MC.,218
sub89341-50080¥6,000
main89341-K0060-D5i202201-202501
RED M.M.,3R3
sub89341-50080¥6,000
main89341-K0060-P9i202201-202501
METAL STREAM ME,1K0
sub89341-50080¥6,000
main89341-K0060-S0i202201-202501
MASSIVE GRAY,1L6
sub89341-50080¥6,000
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-K0060-21i202201-202501
SPARKLING BLACK PEARL CS.,220
sub89341-50080¥6,000
main89341-K0060-22i202201-202501
GLITTER BLACK GF.,226
sub89341-50080¥6,000
main89341-K0060-A1i202201-202501
WHITE PEARL CS.,070
sub89341-50080¥6,000
main89341-K0060-A4i202501
PLATINUM WHITE PEARL MC.,089
sub89341-50080¥6,000
main89341-K0060-C5i202201-202501
ATTITUDE BLACK MC.,218
sub89341-50080¥6,000
main89341-K0060-D5i202201-202501
RED M.M.,3R3
sub89341-50080¥6,000
main89341-K0060-P9i202201-202501
METAL STREAM ME,1K0
sub89341-50080¥6,000
main89341-K0060-S0i202201-202501
MASSIVE GRAY,1L6
sub89341-50080¥6,000

9 parts on this diagram · 1 diagram in section
