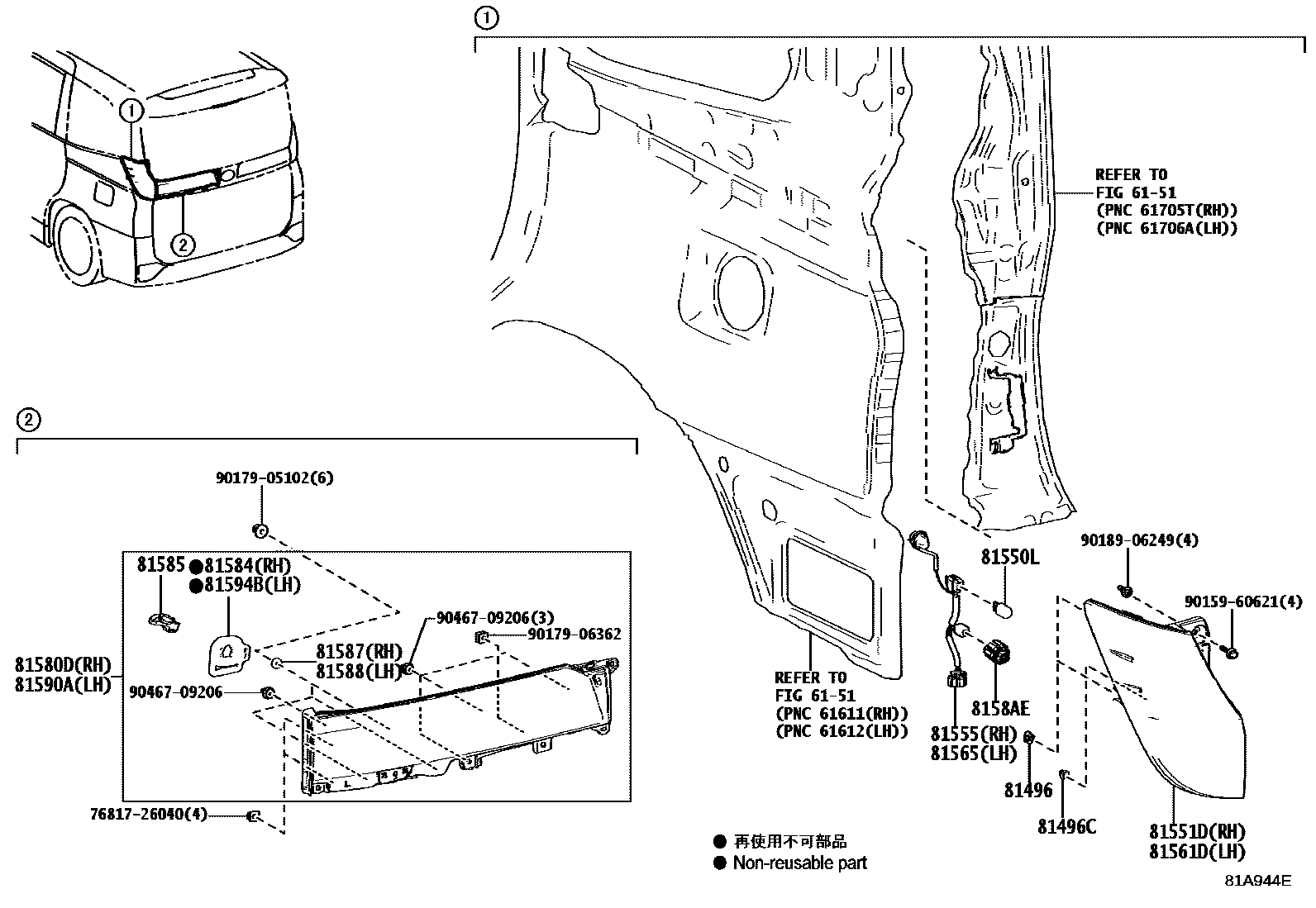

REAR COMBINATION LAMP

0001 1 0002 1

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-50010iMZRA90..S202201-202501

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iMZRA90..S202201-202501

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iMZRA90..R202201

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-V1010iMZRA90..S202201-202501

main81551-V1020iMZRA90..R202201

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-V1010iMZRA90..S202201-202501

main81555-V1020iMZRA90..R202201

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-V1010iMZRA90..S202201-202501

main81561-V1020iMZRA90..R202201

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-V1010iMZRA90..S202201-202501

main81555-V1020iMZRA90..R202201

81580DLAMP ASSY, REAR, RH

main81580-V1010iMZRA90..S202201-202501

main81580-V1030iMZRA90..R202201

81584PACKING, REAR LAMP RH

main81582-V1020iMZRA90..S202201-202501

main81582-V1030iMZRA90..R202201

81585SOCKET & WIRE, REAR LAMP

main81585-V1030iMZRA90..R202201

81587PROTECTOR, REAR LAMP, RH

main81558-24040iMZRA90..S202201-202501

81588PROTECTOR, REAR LAMP, LH

main81558-24040iMZRA90..S202201-202501

8158AELED, BACK-UP LAMP

main8158A-12260iMZRA90..S202201-202501

81590ALAMP ASSY, REAR, LH

main81590-V1010iMZRA90..S202201-202501

main81590-V1030iMZRA90..R202201

81594BPACKING, REAR LAMP LH

main81582-V1020iMZRA90..S202201-202501

main81592-V1030iMZRA90..R202201

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960621

main90159-60621

9017905102

main90179-05102

9017906362

main90179-06362

9018906249

main90189-06249

9046709206

main90467-09206

22 parts on this diagram · 2 diagrams in section
