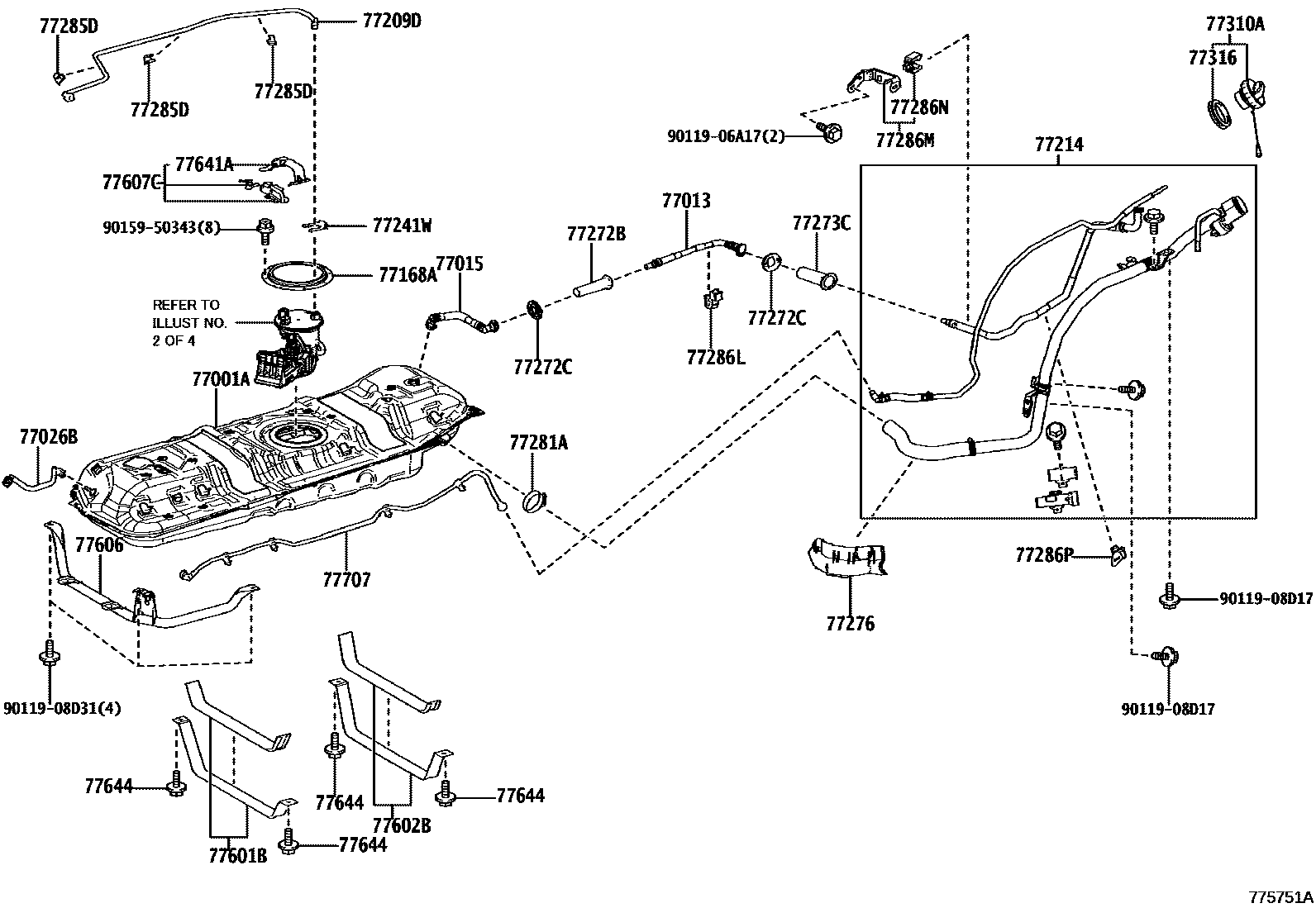

FUEL TANK & TUBE
77001ATANK SUB-ASSY, FUEL
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77015TUBE SUB-ASSY, FUEL TANK BREATHER, NO.4
77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77214PIPE, FUEL TANK FILLER
77241WCLIP, TUBE JOINT
77272BSUPPORT, BREATHER TUBE, NO.1
77272CSUPPORT, BREATHER TUBE, NO.3
77273CSUPPORT, BREATHER TUBE, NO.2
77276PROTECTOR, FUEL HOSE
77281ACLAMP, FUEL FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77286LCLAMP, FUEL TUBE, NO.5
77286MCLAMP, FUEL TUBE, NO.6
77286NCLAMP, FUEL TUBE, NO.7
77286PCLAMP, FUEL TUBE, NO.8
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2
77641APROTECTOR, FUEL TANK, NO.1
77644BOLT, FUEL TANK
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
9011906A17
main90119-06A17
9011908D17
main90119-08D17
9011908D31
main90119-08D31
9015950343
main90159-50343
31 parts on this diagram · 4 diagrams in section
