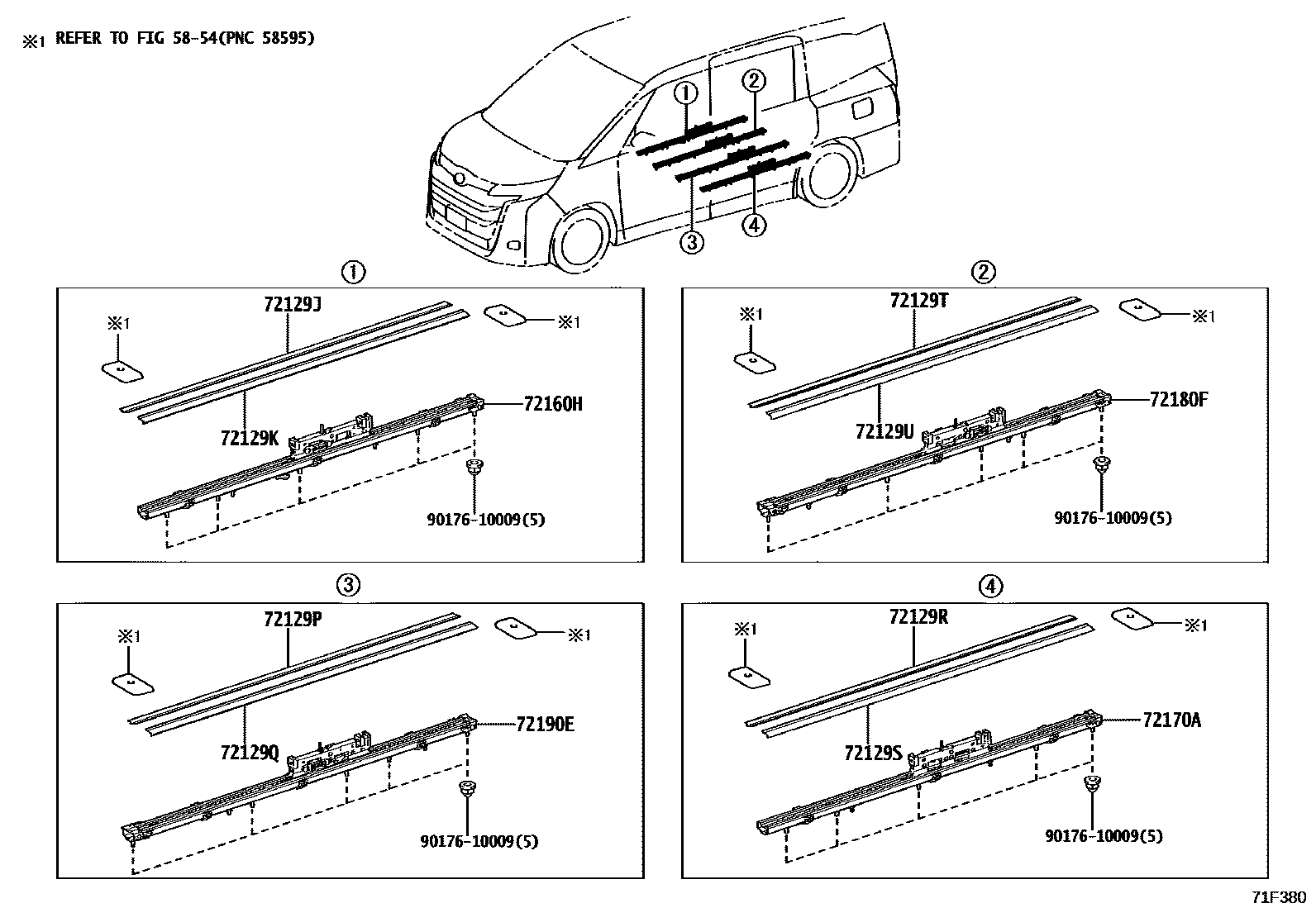

SEAT RAIL
5854
72129JPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129KPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
72129PPROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129QPROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2
72129RPROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129SPROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2
72129TPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129UPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2
72160HTRACK ASSY, REAR SEAT, OUTER RH
72170ATRACK ASSY, REAR SEAT, OUTER LH
72180FTRACK ASSY, REAR SEAT, INNER RH
72190ETRACK ASSY, REAR SEAT, INNER LH
9017610009
main90176-10009
14 parts on this diagram · 2 diagrams in section
